Vortex Optics CBX TACTICAL TRIPOD KIT User Manual
Page 2
©Vortex Optics USA 2009
E
Warranty and Service
This product is warranted to be
free of defects in materials and
workmanship for three years
after purchase. Vortex Optics
will repair or replace such
product or part thereof that,
upon our inspection, is found
to be defective in materials or
workmanship.
If you need assistance using your
tripod, please contact:
Vortex Optics
2120 West Greenview Drive
Middleton, WI 53562
800-426-0048

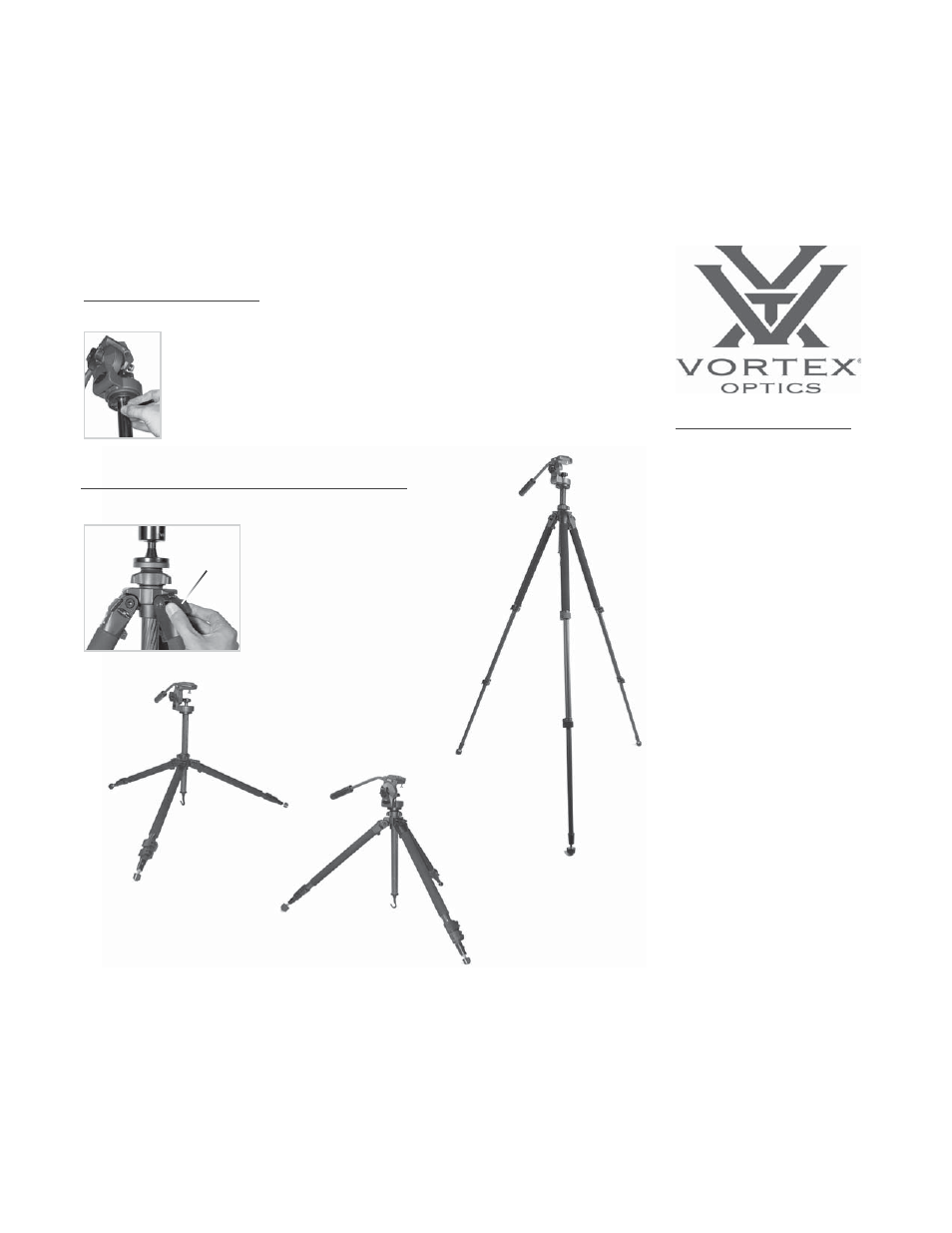

Adjusting the variable leg angle spread
Adjust the tripod leg angles for ease of use in various scenarios.
Pull out on the leg release (E) and
lift the leg upward, setting it at
one of the three available angles.
Repeat with other legs as needed.
The legs on the CBX tripod can
be independently adjusted to
one of three viewing positions.
1. Thread the panhead onto the panhead mounting bolt (B) and
tighten until secure.
2. Extend the center column (G) above the locking collar (D)
and tighten the three set screws on the underside of the panhead
connector platform with an Allen wrench.
Attach a tripod head (sold separately) to the CBX tripod legs in two steps:
Adding a tripod head
