Page 4

THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"

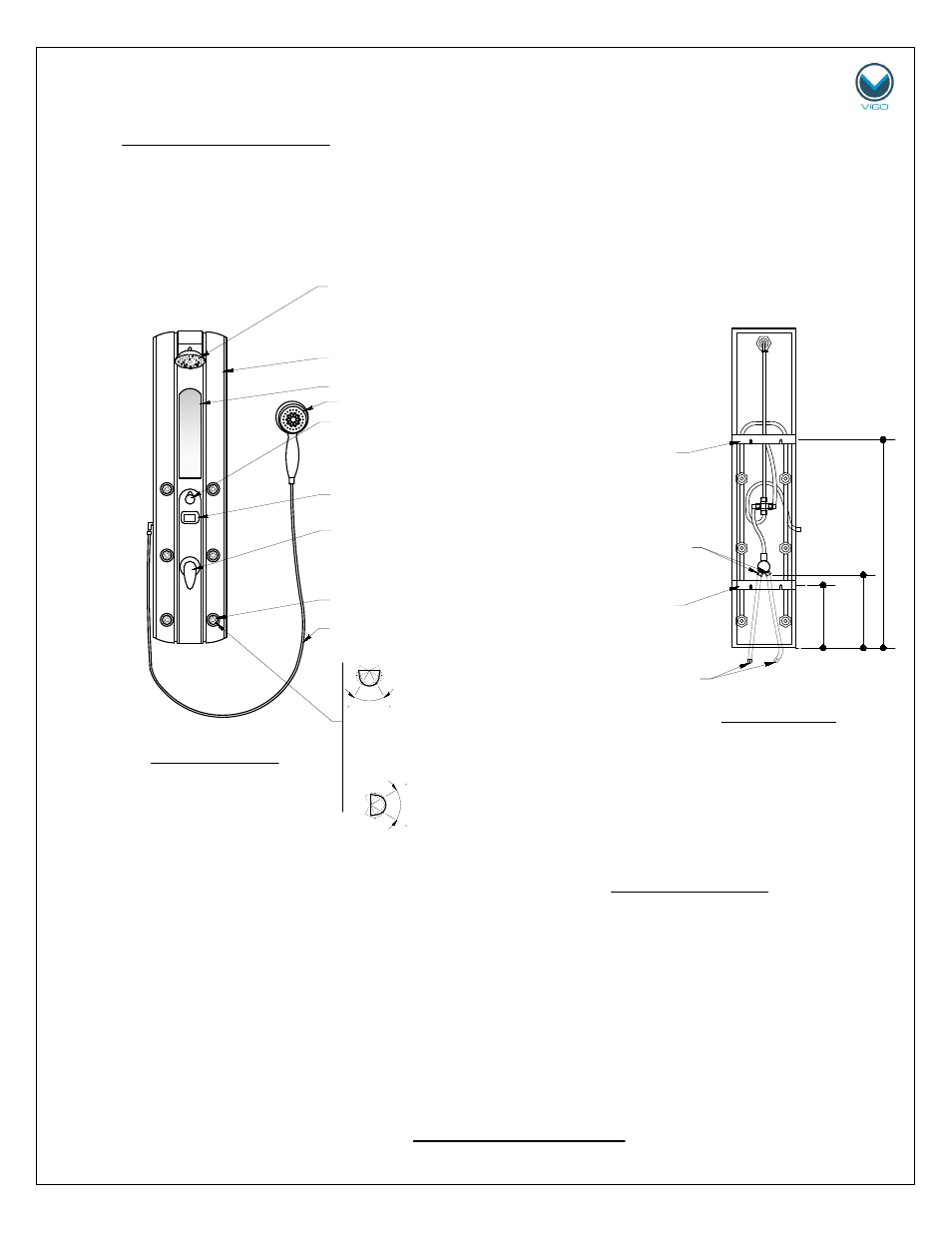

FITTINGS/TECHNICAL DATA

OVERHEAD SHOWER - 84009

MIRROR - 87000

WATER TEMPERATURE -
84012

VOLUME CONTROL - 88049

3 WAY DIVERTER: - 84015, 84018
- HEAD SHOWER
- HAND SHOWER
- JETS

HAND SHOWER - 84004

SHOWER HOSE - 88004

BODYSHOWER (WATER JET) - 84011

WATER JET
SIDE VIEW

WATER JET
TOP VIEW

WATER JETS

DIRECTIONS
FROM
CENTER
POINT

ALUMINUM PROFILE - 88061

BACK VIEW

FLEXIBLE HOSES.

CONNECT TO
COLD & HOT
WATER - 88005

FRONT VIEW

MODEL VG08006

WATER

HOSE

CONNECTION

MOUNTING
BRACKET

12 1/4"

32"

TECHNICAL DATA

MIN. FLOW PRESSURE 30 PSI
MAX OPERATING PRESSURE 60 PSI

OVERALL WATER PRESSURE IS 2.5 GALLONS
PER MINUTE AT 60 PSI

MOUNTING
BRACKET
