THE MEASUREMENTS IN INCHES ARE ROUNDED TO THE NEAREST 1/8"

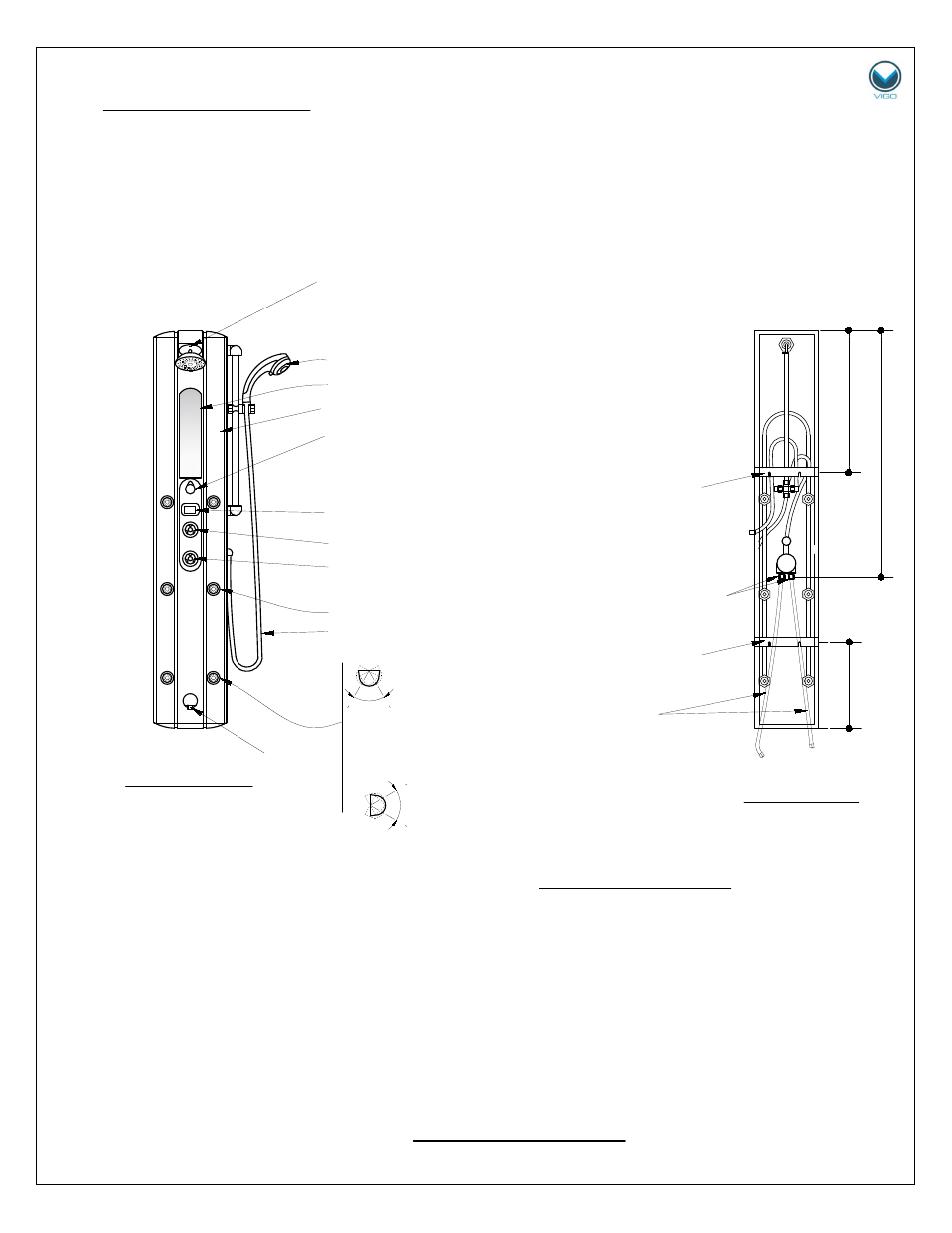

FITTINGS/TECHNICAL DATA
OVERHEAD SHOWER - 84009
MIRROR - 87000
WATER TEMPERATURE
DISPLAY - 84012
VOLUME CONTROL - 84016, 84019
4 FUNCTION SWITCH:
- HEAD SHOWER
- HAND SHOWER
- JETS
- SPOUT
HAND SHOWER - 84004
SHOWER HOSE - 88004
BODYSHOWER (WATER JET) - 84011
WATER JET
SIDE VIEW
WATER JET
TOP VIEW
WATER JETS
DIRECTIONS
FROM
CENTER
POINT
ALUMINUM PROFILE - 88059
BACK VIEW
FLEXIBLE
HOSES.
CONNECT TO
COLD & HOT
WATER -
88005
FRONT VIEW
MODEL VG08004
SPOUT -
88033
WATER HOSE
CONNECTION
MOUNTING
BRACKET
37"
22 1/4"
4
WATER TEMPERATURE CONTROL - 84017, 84019
(SCALD GUARD LOCATED UNDER HANDLE)
14 1/8"
MOUNTING
BRACKET
TECHNICAL DATA
MIN. FLOW PRESSURE 30 PSI
MAX OPERATING PRESSURE 60 PSI
OVERALL WATER PRESSURE IS 2.5 GALLONS
PER MINUTE AT 60 PSI
