4. End cap must be removed to install metal side hanging hook.
5. Tri pod stand my be used to hold light vertical on flat surfaces.
Maintenance:
WARNING: To avoid electric shock, unplug work light from outlet before attempting to perform any mainte-
nance.
1. Cleaning: Remove dirt and grime as soon as it accumulates on light body and cord by using a soft, damp
cloth (a mild soap my be used if needed), being careful not to wet the electrical plug. Never immerse any
part of the work light in any solution to clean it. Do not use
solvents (such as gasoline, turpentine, etc.) to clean it.

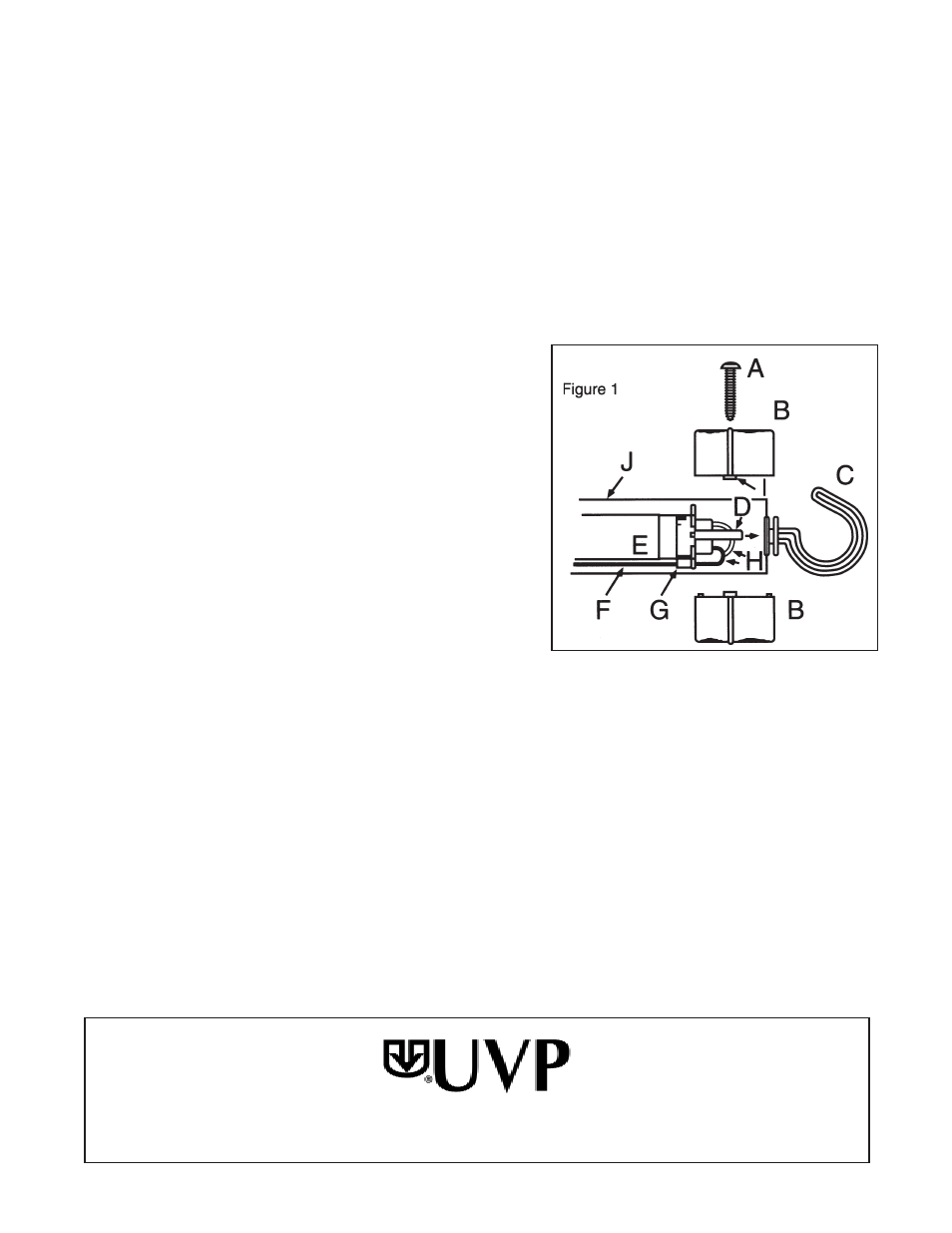

2. Tube Replacement: Remove power supply plug from
outlet. Remove Phillips head screw (A) from hook end of
light, separate end caps halves (B), and hook (C), as show
in Figure 1. Grasp white nylon socket (D), and pull out-
wards. Remove lamp and replace (E), with the replacement
bult. Pull slack wire (F) that may be along the lamp through
cord guide (G) into end cap.
WARNING: When relamping, white wires (H), must be posi-
tioned free of connecting posts (I), during reassembly, to avoid
crimping wires.
Specifications:
Electric Rating - Listed below is the maximum amper-
age rating for this unit.
Gauge / Cord Type - 18/2 SJT
Cord Length - 25 Feet
Total Maximum Rating – 15 Watts, 0.305 Amps, 125 Volts
Replacement Tube:
Part number 34-0017-01
To order a replacement tube, contact UVP, Inc. at (800) 452-6788 for an authorized dealer in your area. Call UVP
with any questions you may have regarding the BL-15. If returning the product to UVP, obtain a Returned
Goods Authorization number prior to sending the lamp to the factory.
81-0206-01
UVP, Inc. 2066 W. 11th Street, Upland, CA 91786 / (800) 942-6788 / (909) 946-3197 / Fax: (909) 946-3197
E-Mail: [email protected] / Web Site: uvp.com
