assembly with the new replacement assembly and insert and tighten the four
screws. T o remove the tube, grasp the tube ends by twisting one quarter turn until
the tube is free.
Handheld Lamps ... T o change the filter on six-watt models, the filter assembly
snaps out of the lamp housing. Remove the lower housing. T o remove the tube,
carefully grasp the tube ends by twisting one quarter turn until the tube is free.
Insert the new tube, giving it a twist to lock in place. Reassemble filter assembly.
Note: when replacing a multi-band shortwave/longwave tube, be sure to place
the longwave tube side on the proper end.
REPLACEMENT PA RTS
MODEL TUBE/WAVELENGTH FILTER/FRAME
FOR HANDHELD LAMP MODELS
UVG-54 34-0013-01 254nm shortwave 98-0004-03
UVGL-55 34-0015-01 254/365nm 98-0005-03
UVL-56 34-0034-01 365nm longwave 98-0006-03
UVGL-58 34-0013-01 254nm shortwave 98-0004-03
34-0034-01 365nm longwave
UVM-57 34-0044-01 302nm midrange 98-0004-03
UVL-13R 34-0082-01 365nm BL 98-0006-03
UVS-13 34-0081-01 254nm shortwave 98-0004-03
FOR COMPACT LAMP MODELS
UVG-11 34-0003-01 254nm shortwave 98-0016-02
UVGL-15 34-0004-01 254/365nm 98-0017-02 (SW)
UVL-21 34-0005-01 365nm longwave
UVGL-25 34-0003-01 254nm shortwave 98-0016-02
UVL-23
UVL-23R
UVL-23RW
UVL-9R
34-0005-01 365nm longwave
34-0010-01 365nm longwave
34-00 10-01 365nm longwave
34-0005-01 365nm longwave
34-0080-02 365nm longwave
REPAIRS
Contact UVP’s offices with any questions. T o return a unit to the factory for repair,
call UVP’s Customer Service Department for a Return Authorization Goods (RGA)
number prior to sending the unit. Contact:
Corporate Headquarters: UVP , LLC, 2066 W. 11th Street, Upland, CA 91786
Tel: (800) 452-6788 · (909) 946-3197
European Operations: Ultra-Violet Products Ltd., Unit 1, Trinity Hall Farm Estate,
Nuffield Road, Cambridge CB4 1TG UK • Tel: +44(0) 1223 420022
USING THE ULTR AVIOLET LAMP
Plug your lamp into a standard AC outlet. Single
ultraviolet wavelength lamps utilize an ON/OFF
rocker switch. Multiple ultraviolet wavelength
lamp models use an ON/OFF/ON rocker switch
where the ON corresponds to the UV wave-
lengths. These ultraviolet lamps are designed
for use in dark or semi-dark areas.
Allow enough time for your eyes to
adjust to the darkness prior to using
the lamp. Some materials will tend
to fluoresce brighter than others. This
reaction is due to the concentration
of fluorescence on the material and
varying degrees of brightness of dif-
ferent colors.
UVL-13R and UVL-9R operate with
a 12V connector which plugs into an
automobile cigarette lighter. These portable lamps are excellent for field use and
can be used for windshield curing. The lamp can be attached to the window with
suction cups (purchased separately). These lamps can also be operated from a
wall outlet or with the use of an optional battery pack and charger, or alligator clips
(see accessories for ordering information).
USING THE WA VELENGTH SELECTOR (Models UVGL-55, UVGL-15)
The wavelength selector is included on multi-band lamps — half longwave and
half shortwave. The wavelength selector is designed to block off either longwave
or shortwave on these lamps. The selector can be slid up and down to give you
either wavelength. When the selector is moved over the bottom half of the filter
area, it blocks the longwave UV , allowing only shortwave UV to be emitted. By
sliding the selector over the top half of the filter, only the longwave UV is emitted.
The wavelength selector snaps on or off the lamp easily.
WARNING: REMOVE POWER CORD FROM PO WER SOURCE
PRIOR TO SERVICING .
FILTER ASSEMB LY AND TUBE REPLACEMENT
Filters on the longwave lamps last indefinitely and should never need replacing
unless broken. Lamps with a BLB tube do not use a filter as the BLB tube is self-
filtered. Shortwave and midrange filters have an average life of 1000 hours.
Compact Lamps ... T o replace the filter or UV tube on the four-watt compact lamp
assembly, remove the product label on the face of the lamp as one (or two de-
pending on the model) of the screws is located under the label.
T o remove the filter and frame assembl y, unscrew the four retaining screws. Two
screws are located above the filter and one below . Replace the filter and frame

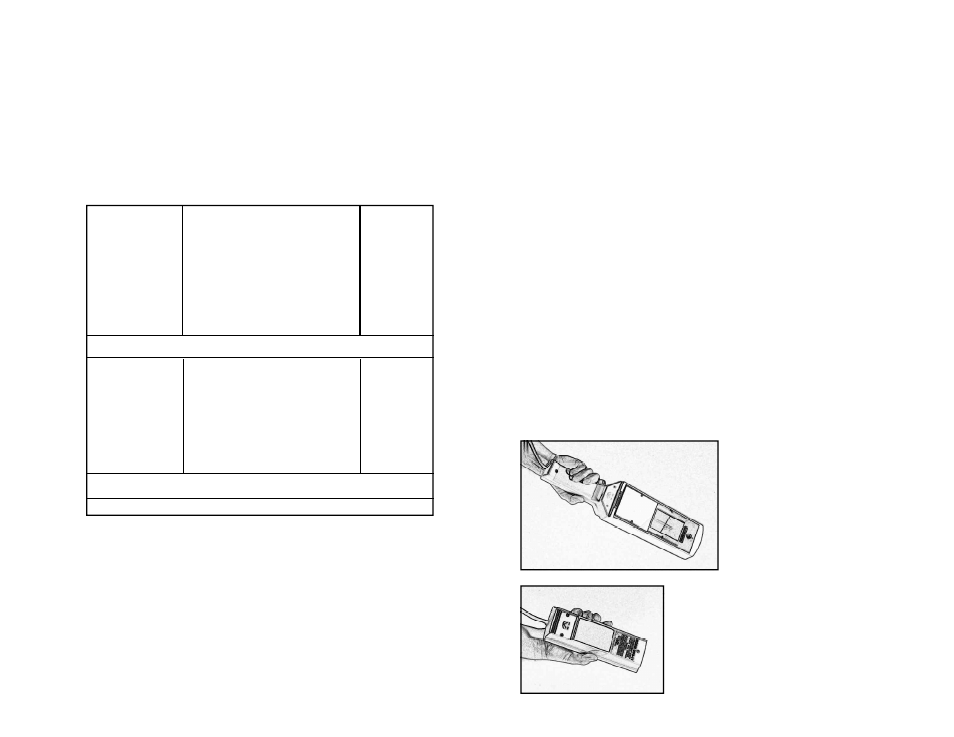

Compact Lamp Style
Handheld Lamp Sty le
