SWITCH SETTINGS

Message Waiting Switch

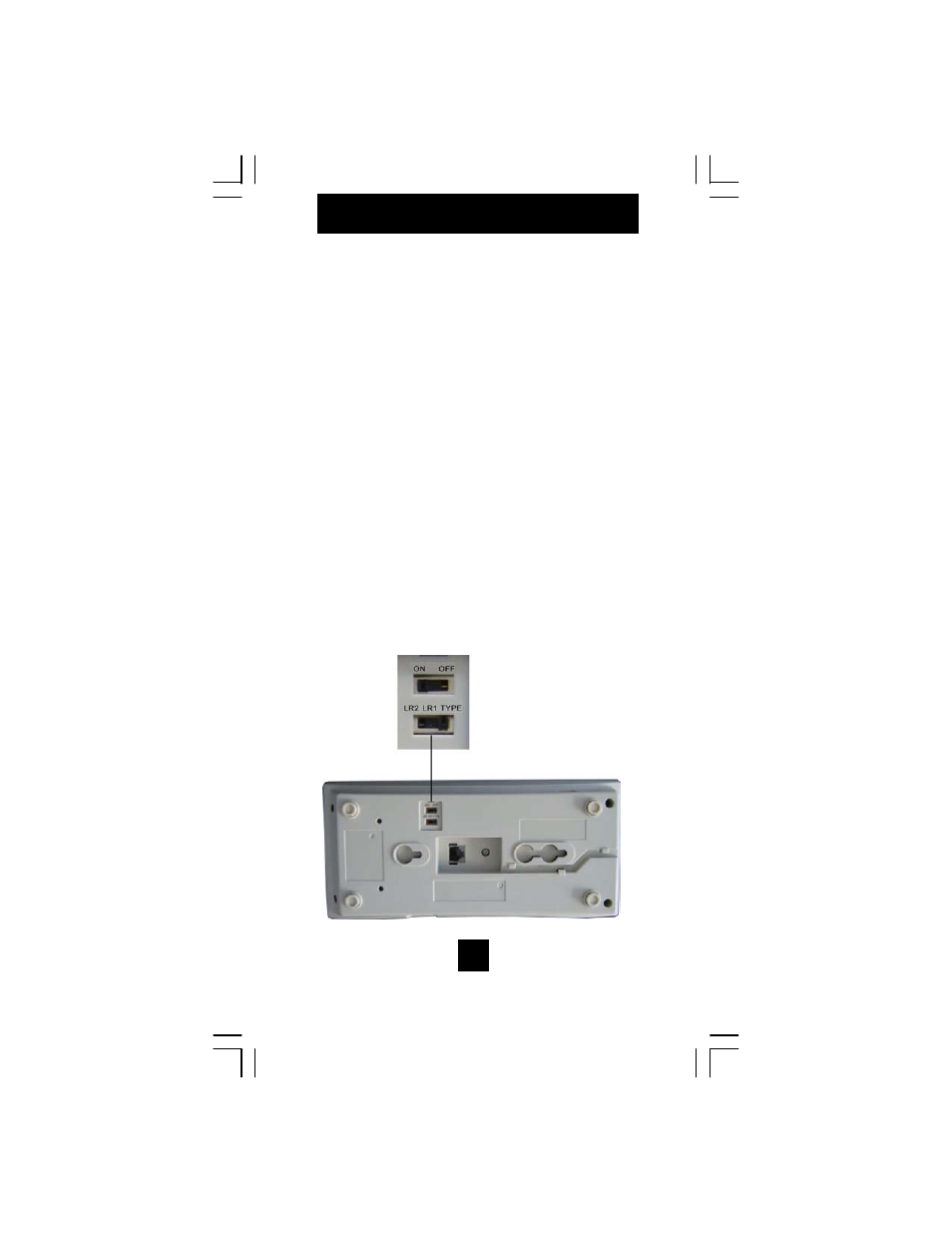

There are two (2) slide switches located on the

base unit under a plastic cover. Use a sharp pointer to remove

the switch plastic cover plate to expose the two switches.

These switches control how the message-waiting

lamp (MWL) works:
Position:

Mode:

TYPE

Responds to “high-voltage” (neon type) MWL
signaling, and also to “low-voltage”
(LED type) MWL signaling

LR1

Reverse polarity MWL, polarity 1

LR2

Reverse polarity MWL, polarity 2

The second switch (On/Off) enables the MWL when
switched on, but completely disconnects the MWL circuit
when switched off.
The default Message Waiting switch settings should be:

 Message Waiting ON/OFF switch needs to be set to “ON”.
 Message Waiting TYPE/LR1/LR2 switch needs to be set

to “TYPE”.
