Regency ® U38-1 ULTIMATE Freestanding Gas Stove
29
PARTS LIST
24) 948-255 Door Latch c/w Hook
25) 910-250 Spill Switch
27) 910-233 Thermodisc - Fan Auto/On/Off
28) * Mounting Bracket - Fan Thermodisc
30) 750-010 Rear Panel
32) 730-565 Firebox Baffl e
33) 560-535 False Top Assembly
34) 590-273 Flue Attachement Bracket
35) 590-930 Ult. 6" Flue Collar (Optional)
38) 820-058 Pedestal Base Cover
948-216 Logo Plate
918-530 Manual
*Not available as a replacement part.
1) 560-920 Top/Bottom Gold Louver Assy
560-921 Top/Bottom Brush Nickel Assy
560-922 Top/Bottom Black Louver Assy
9) 560-055 Fan Access Door
10) 730-034 Gasket for Fan Access Door
730-517/P Fan Assembly
11) 910-331/P Fan Motor (120 Volt)
12) 910-794 Power Cord (120 Volt)
15) *
Pedestal Assembly
16) 730-039 Pedestal Door
17) 904-257 Pedestal Door Magnet
18) 560-025 Pedestal Back
19) 730-530 Short Side Panel Door Assy (Right Side)
20) 730-525 Short Side Panel Door Assy (Left Side)
21) 560-031 Hinge for Side Panel
23) 904-258 Side Panel Door Magnet

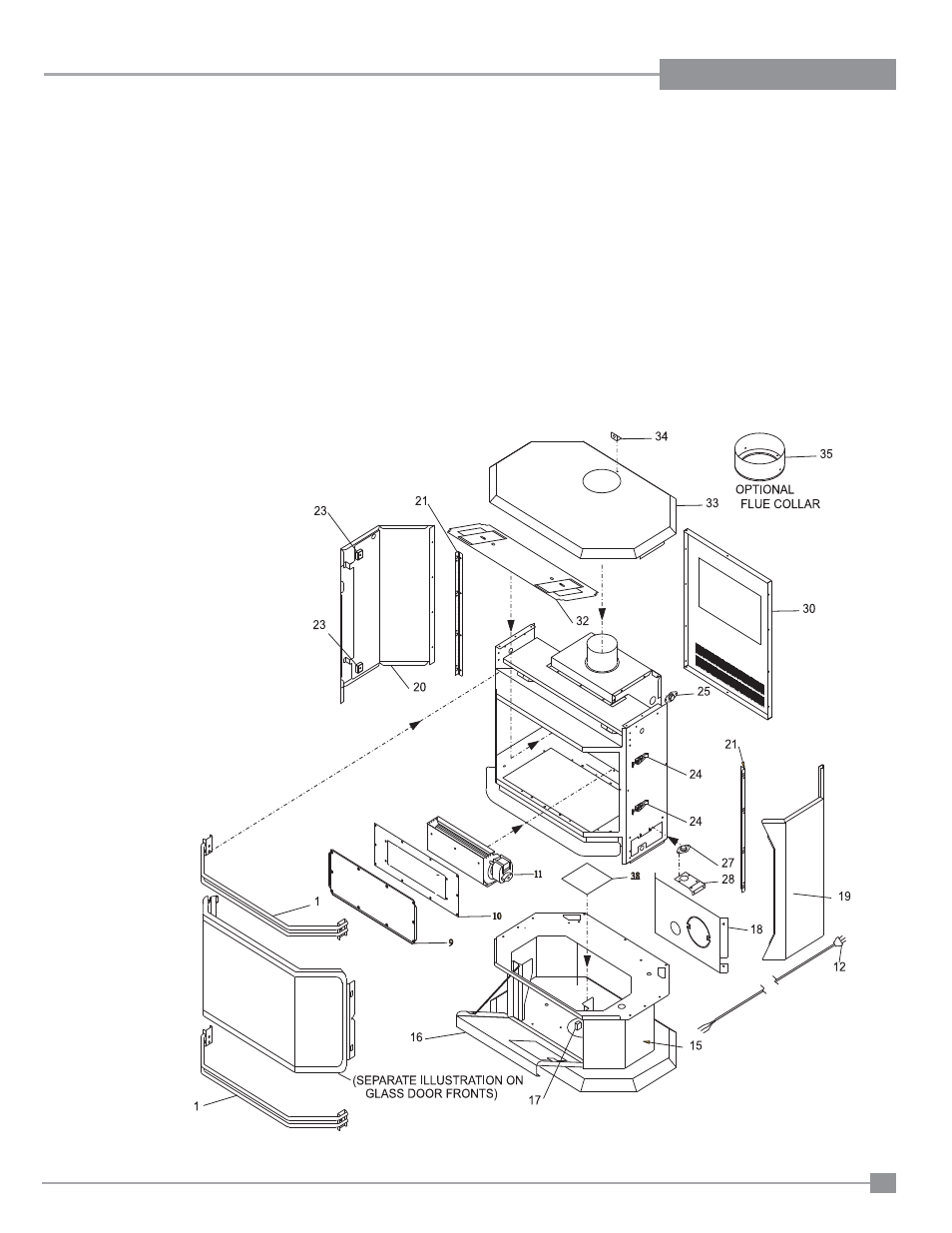

U38-1 MAIN ASSEMBLY
Part # Description Part # Description
