GENERATOR COMPONENTS

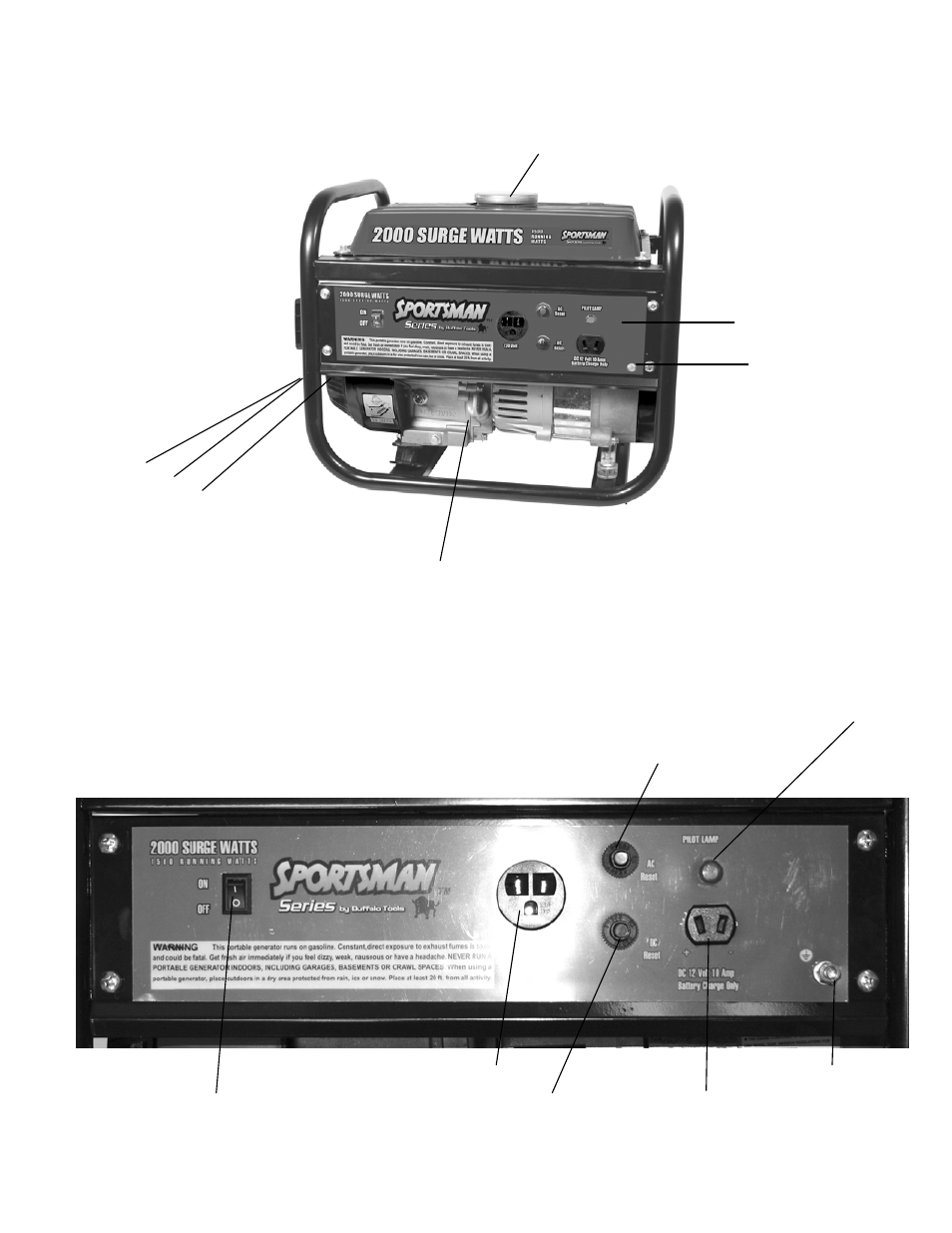

Observe the locations and functions of the various components and controls of this generator.
1
1) Fuel Tank Cap
2) Control Panel
3) Grounding Terminal
4) Oil Access
5) Recoil Starter
6) Carburetor Choke Lever
7) Fuel Cock
2
3
5
6
7
8) Ignition Switch
9) DC Circuit Fuse
10) AC Circuit Fuse
11) 120 Volt AC Output Socket
12) 12 Volt DC Output Socket
13) Pilot Lamp
4
13
5
11 3
10
9 8
12
