Schwank Wall Mounting Arm - Manual (Page 2)

GP-MMAK-CX-03B
2300 Mounting Arm Kit Manual
JAN 2014
RL: 3B
BA
2

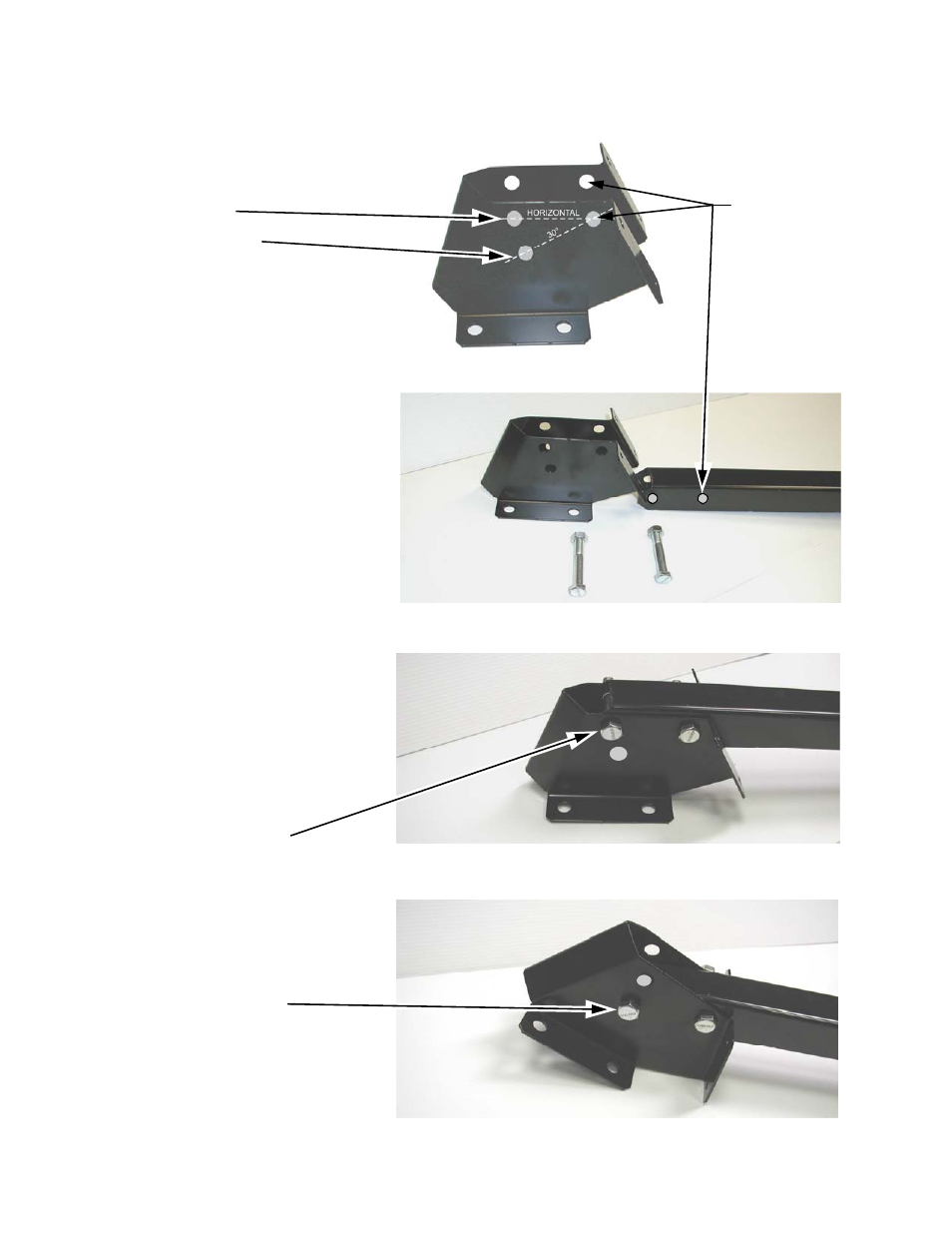

Assemble Mounting Bracket
to Mounting Arm using bolts
and nuts supplied:
 Align the anchor holes in
the heater bracket and the
mounting arm, and insert a
bolt
 Finger tighten nut on to
bolt to allow rotation of the
heater bracket
 Align the desired mounting
angle holes in the heater
bracket to the outermost
holes in the mounting arm
 Insert second bolt
 Tighten nuts on both bolts
with wrench
 Horizontal mount
 30° Angle mount
Using pairs of holes, the heater
bracket allows heater orientation:
 Horizontal
 Angled at 30°
(MAXIMUM angle mount)
Anchor holes
(pivot point)
NOTE: MOUNT HEATER AT MAXIMUM 30° ANGLE TO AVOID DAMAGE
