Schwank 4002J Portable Patio Heater - Manual (Page 10)

4001/2-J, 4N11/2-J Manual
IM061103
RD: Aug 2006
R.L. 08B
KH

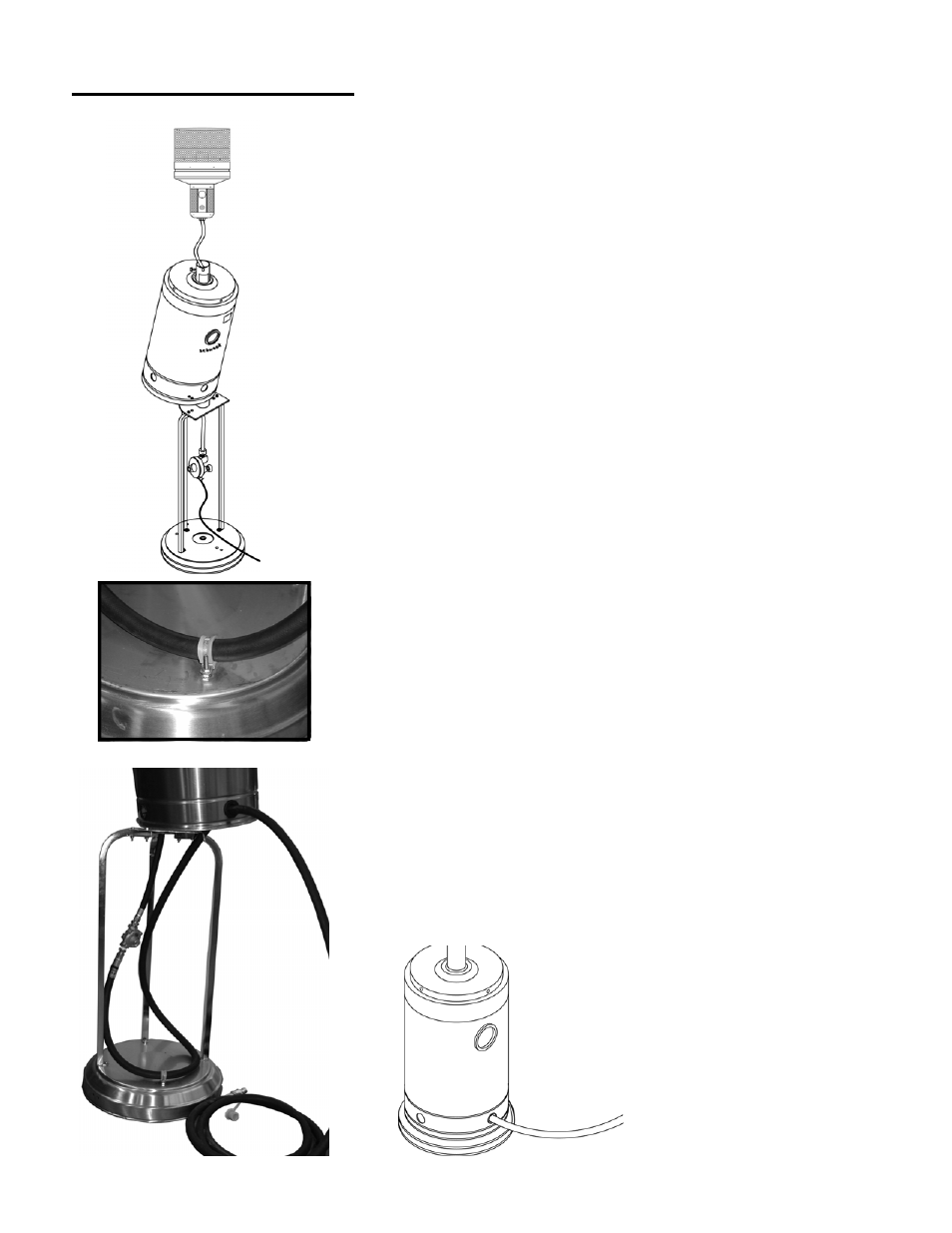

ASSEMBLY..... CONTINUED
Slide cylinder cover over post and let rest in upper position.
For LP connection:

Slide gas hose up the post with LP regulator at bottom (regulator will
be inside tank cover)

Attach hose securely to burner

Allow burner to rest in post

Connect hose to gas cylinder.

Lift burner and leak test all connections

Fasten burner securely in place with four 1/2” machine screws

Attach assembled reflector (see next page)
For NG connection:

Attach 45” hose securely to burner

Slide hose down through inside of post

Attach burner to post with two 1/2” machine screws - finger tight only
(burner will need to be lifted later to leak test gas hose connection)

Install outlet side of 5” wc gas regulator onto hose using 1/2” pipe
thread to flared fitting adapter

Install 1/2” male pipe thread of 18 ft rubber gas hose into gas regulator
inlet side.

Remove finger tight nut from #10 bolt extending from top side of base

Using hose clamp provided, secure rubber gas hose to the #10 bolt
extending from top side of base

Leave sufficient “slack in hose above the clamp to allow for lifting
of the burner for leak testing

Install female quick connect provided to gas supply and connect
heater to the gas supply

Lift burner and leak test all gas connections

Secure burner with four 1/2” machine screws

Install heavy duty grommet in one of the lower holes in the tank cover

Disconnect gas hose from supply and feed gas hose through the
heavy duty grommet

Fill counterweight container (supplied) with sand or water and place
on cylinder base

Slide tank cover down into place - carefully slide hose out though
grommet while tank cover descends

Attach assembled reflector—see next page for instruction
Page 9
