InfraSave IEP-2024 Manual
Heat Lamp Replacement : … continued

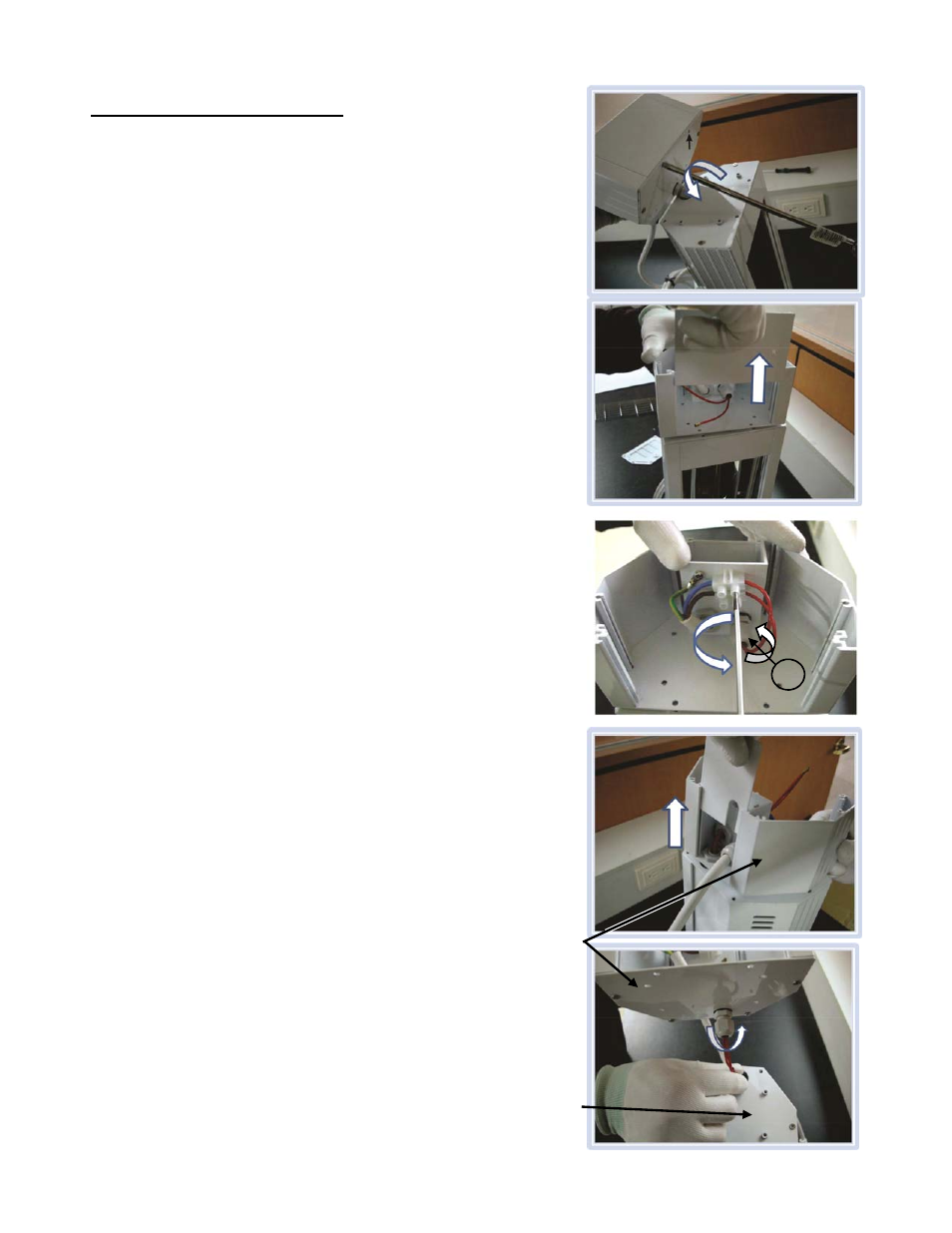

Step 4
Remove 2 Phillips screws that fasten the electrical con-
nection box front face plate in place.
Step 5
Slide the electrical connection box front face plate out
from the electrical connection box.
Step 6
Loosen 2 screws in terminal block that connect the red
heat lamp wires in place. Remove ends of red wires from
terminal block.
6A
- Loosen plastic collar on Liquid Tight Connec-
tor that secures red wires to connection box.
Step 7
Slide power cord retainer plate from heater body (top sur-
face of heater).
Step 8
Loosen plastic collar on second Liquid Tight Connector
that secures red wires through connection box end plate.
Slide red wires out of connection box.
Set connection box aside.
6A
Connection
Box
Heater
Body
