11
ASSEMBLY
ATTACHING INJECTION HOSE

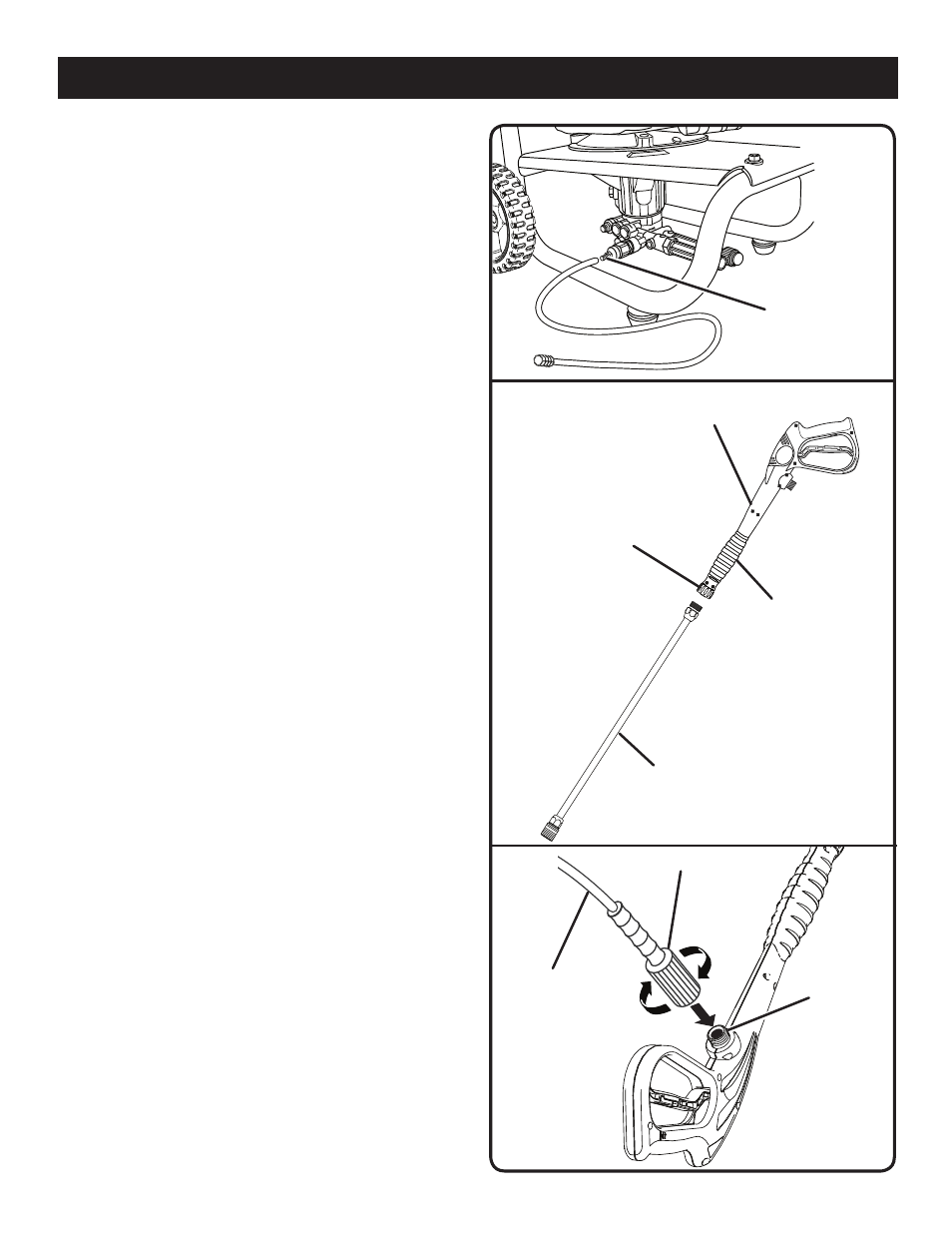

See Figure 6.
Before detergent can be used with this machine, the injection
hose must be attached.
 Push the open end of the clear injection hose securely
over the fitting as shown in figure 6.
 Place the filtered end of the injection hose in the bottle
of detergent.
ASSEMBLING THE SPRAY WAND
See Figure 7.
To attach the spray wand extension:
 Place the threaded end of the wand extension in the con-
nector on the end of the spray wand assembly.
 Turn the connector clockwise until it stops. This secures
the wand extension in place.
 When not in use, remove the spray wand extension from
the spray wand by turning the connector counter clock-
wise. When not in use, store
both pieces on top of the
pressure washer.
CONNECTING HIGH PRESSURE HOSE TO
SPRAY WAND ASSEMBLY
See Figure 8.
 Screw the collar on the high pressure hose into the spray
wand’s inlet coupler by turning the hose collar clock-
wise.
 Pull on the hose to be certain it is properly secured.
Fig. 7
Fig. 8
COLLAR
HIGH PRESSURE
HOSE
INLET
COUPLER
SPRAY
WAND
EXTENSION
CONNECTOR
SPRAY
WAND
GROOVED
GRIPPING
SURFACE
INJECTION
HOSE
FITTING
Fig. 6
