ASSEMBLY..... CONTINUED

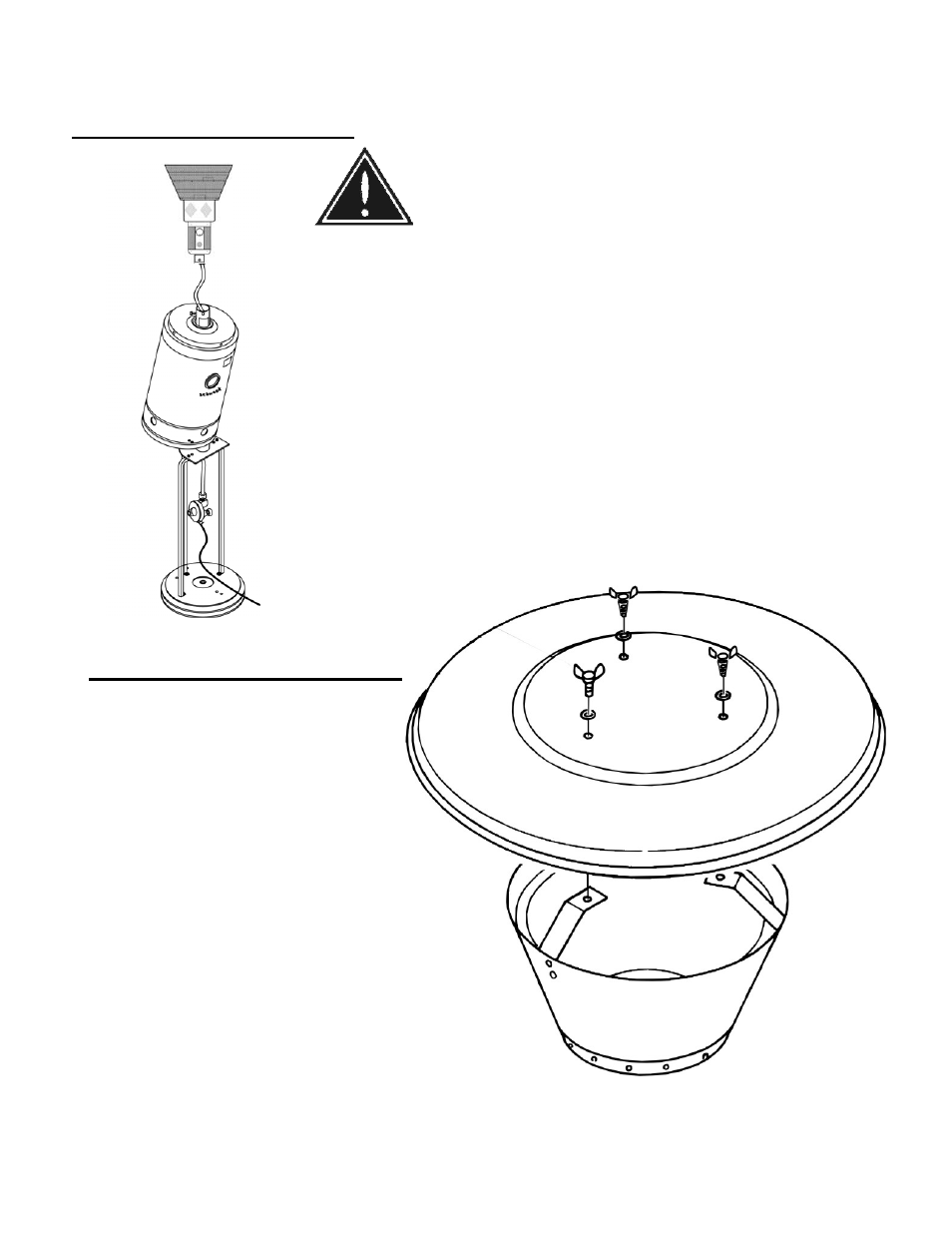

For LP connection:
1. Slide cylinder cover over post and let rest in upper position.
2. Slide gas hose up inside the post with LP regulator at bottom
(regulator at lower end, inside cylinder cover)
3. Attach hose securely to burner
4. Allow burner to rest in post
5. Connect hose to gas cylinder.
6. Lift burner and leak test all connections
 See section 3.1 page 2, section 5.1 next page
7. Fasten burner securely in place with four 1/2” machine screws
Page 6
1. Install a washer onto threaded
portion of wing bolts
2. Align holes in reflector to those
in the brackets at top of burner
3. Secure reflector to burner with
wing bolts.
Reflector Assembly to Burner:
