2
Installation

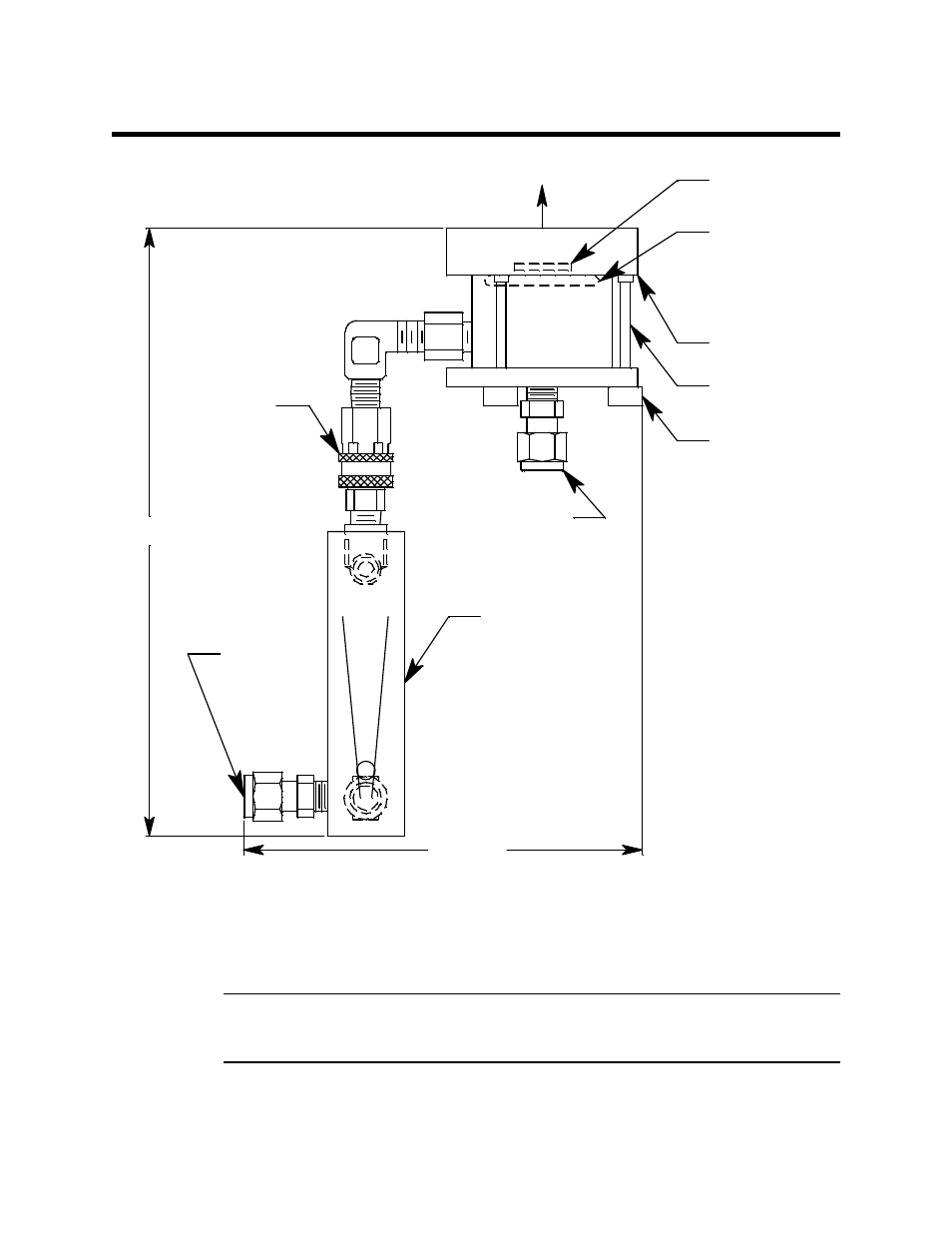

Figure 1: Outline and Mounting Dimensions/Component Location
1. The flow through adapter is normally shipped uninstalled from the detector and the
flowmeter is separated from the sensor adapter. Insert the fitting at the top of the
flowmeter into the quick connect fitting connected to the sensor adapter. Screw the
flow through adapter onto the detector, tightening firmly by hand.
CAUTION: Make sure the flow through adapter is installed tightly and after installation is
complete, verify that the flow through adapter is still tightened firmly onto the
detector to avoid possible leaks.
2. If necessary, re-orient the sensor chamber so the fitting from the sensor chamber to the
flowmeter does not hit the mounting surface by unscrewing the three thumbscrews,
Sensor
Chamber
Thumbscrew,
3x
Flowmeter
1/4 inch OD
Tube Sample
Exhaust F itting
Sensor
Chamber
O-Ring
Sensor Adapter
O-Ring
Screw Onto S ensor
Sensor Adapter
5.3 max
8.0 max
1/4 inch OD
Tube
Sample Inlet
Fitting
Quick Connect
Fitting
