RP-2009 Pump for the GX-2009 8
6. Attach the rubber sample nipple or an optional hose and
probe to the inlet fitting.

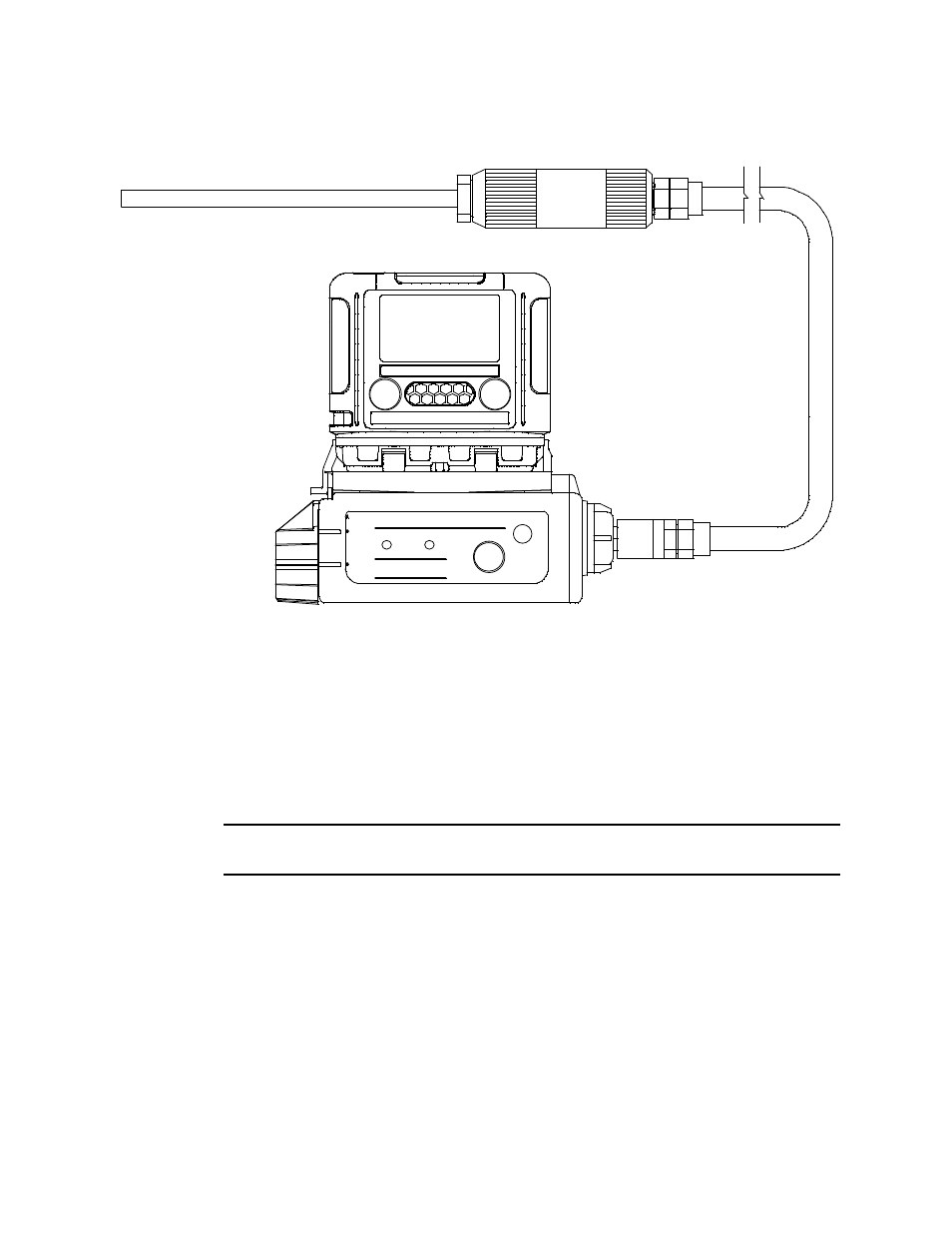

Figure 5: Connecting the Optional Hose & Probe
7. Attach the RP-2009/GX-2009 assembly to your belt or
clothing using the belt clip on the GX-2009.
8. Turn on the pump unit by pressing and holding the POWER
button until the RP-2009 beeps and the power indication LED
turns green, about 2 seconds.
WARNING: While the GX-2009 is installed in the RP-2009, the pump must be on for the
GX-2009 to function as a gas detection monitor.
9. Go to the area to be sampled.
If the rubber sample nipple is used, detach the RP-2009/GX-
2009 assembly from your belt and hold the RP-2009/GX-2009
assembly near the area to by sampled. If sampling from a
vessel or an enclosed area is desired, insert the rubber sample
nipple into the vessel or enclosed area. Allow the pump unit
to sample for 90 seconds for a full response on the GX-2009.
AIR POWER
M ODE
H 2 S C O % LEL O 2
RKI G X-2009
POWER
RESET LOW FLOW POWER
LO CK
RELEASE
OPEN
RP-2009
