1.1 Controlled suction force adjuster

Pos : 2 / 00004 War nhi nweis e/ V0046 VORSICHT Gehörschaden Gehör verlus t (AS200J et) @ 3\ mod_1282734262384_9. doc @ 22771 @

CAUTION

Hearing damage or hearing loss
Suction noise at the suction opening
–

The volume and/or force of drawn-in air can damage
hearing or cause hearing loss.

•

Keep your ears away from the air inlet in the channel.
Use hearing protection.

Pos : 3 / 00004 War nhi nweis e/ V0049 VORSICHT H erausgeworf enen G egenst ände ( AS200J et) @ 3\ mod_1282734264369_9.doc @ 22789 @

CAUTION

Objects thrown-out or falling down
Connection of compressed air instead of vacuum cleaner
–

If compressed air is connected to one of the two air openings, the sieve lid
and the sieve will be hurled out.

•

This device may not be operated with compressed air.

Pos : 4 / 00010 Bedienungsanlei tungen/ 00106 Kapi tels ammlung AS200J et/ 0007 AS200J et Bedi enung/AS200J et M odul Anschl uss des M ot or -Regel ventils @ 1\ mod_1240309232193_9. doc @ 8194 @

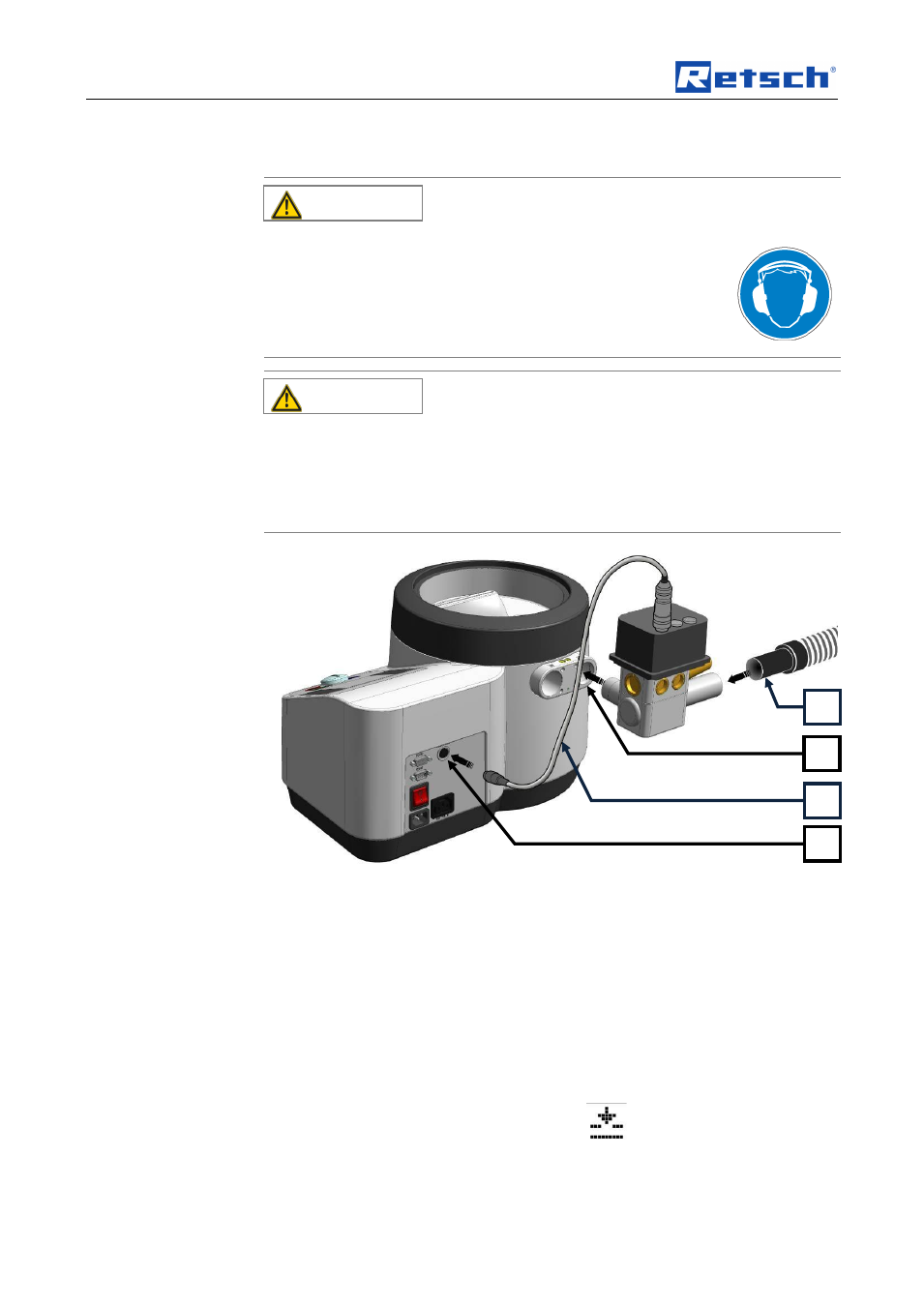

Fig. 1: Connecting the automatic suction force adjuster

The automatic suction force adjuster available as a Retsch accessory allows the air
jet force to be controlled automatically. The AS200jet measures the momentary
differential pressure and controls the automatic suction force adjuster accordingly.

•

Insert the automatic suction force adjuster into the air outlet channel (H) as
shown in the picture.

• Connect the automatic suction force adjuster’s control cable (SK) to the

control connection (J).

• Connect the industrial vacuum cleaner’s suction tube to the opening (IS).

As long as the automatic suction force adjuster’s control cable is connected, the

following symbol appears in the display:
