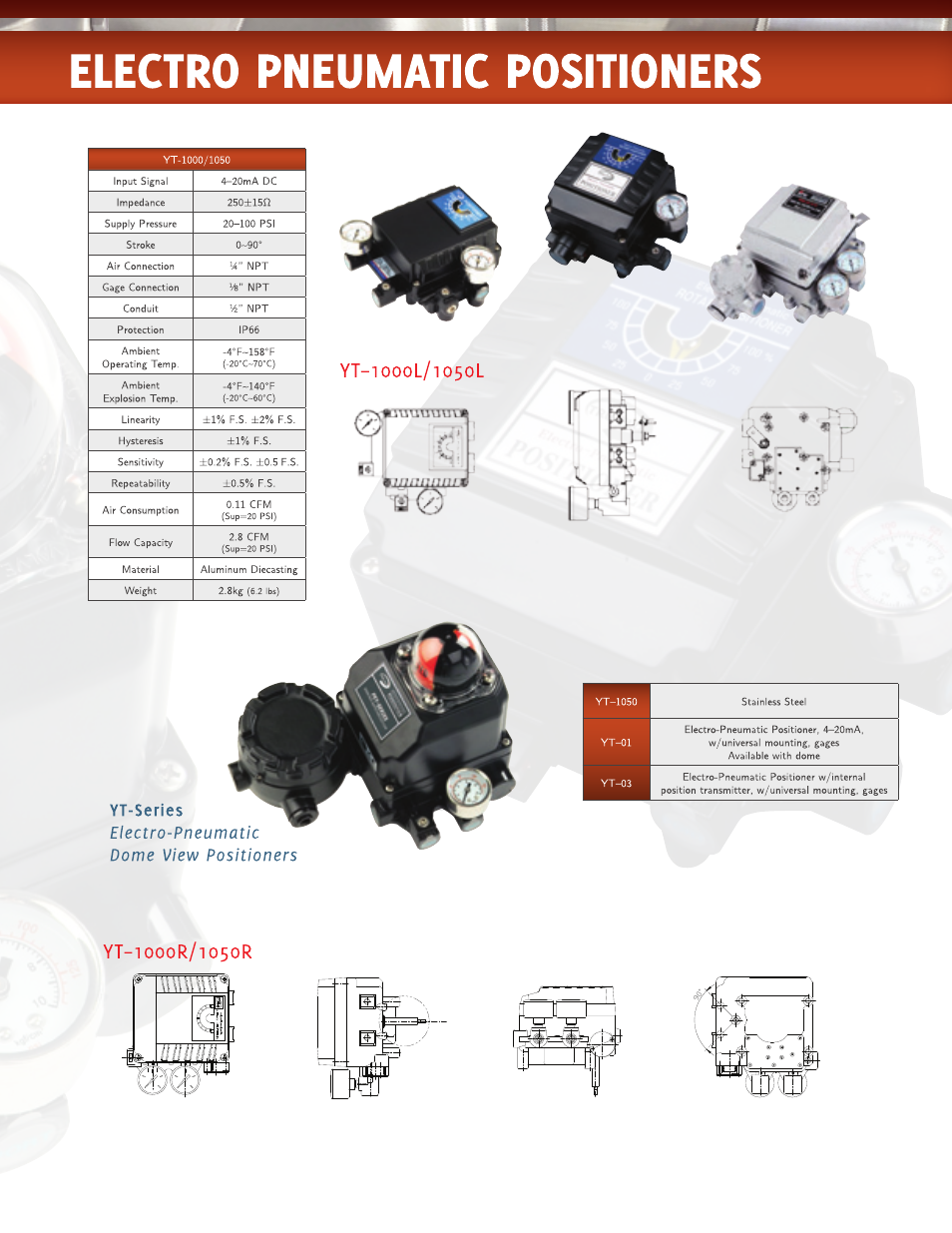

QSM YT Series - Manual (Page 2)

(864)605-0150
YT–1050 Stainless Steel
YT–01
Electro-Pneumatic Positioner, 4–20mA,
w/universal mounting, gages
Available with dome
YT–03
Electro-Pneumatic Positioner w/internal
position transmitter, w/universal mounting, gages
YT-1000/1050
Input Signal 4–20mA DC
Impedance 250±15Ω
Supply Pressure 20–100 PSI
Stroke 0~90°
Air Connection ¼” NPT
Gage Connection ¹∕
8
” NPT
Conduit ½” NPT
Protection IP66
Ambient
Operating Temp.
-4°F~158°F
(-20°C~70°C)
Ambient
Explosion Temp.
-4°F~140°F
(-20°C~60°C)
Linearity ±1% F.S. ±2% F.S.
Hysteresis ±1% F.S.
Sensitivity ±0.2% F.S. ±0.5 F.S.
Repeatability ±0.5% F.S.
Air Consumption
0.11 CFM
(Sup=20 PSI)
Flow Capacity
2.8 CFM
(Sup=20 PSI)
Material Aluminum Diecasting
Weight 2.8kg (6.2 lbs)
