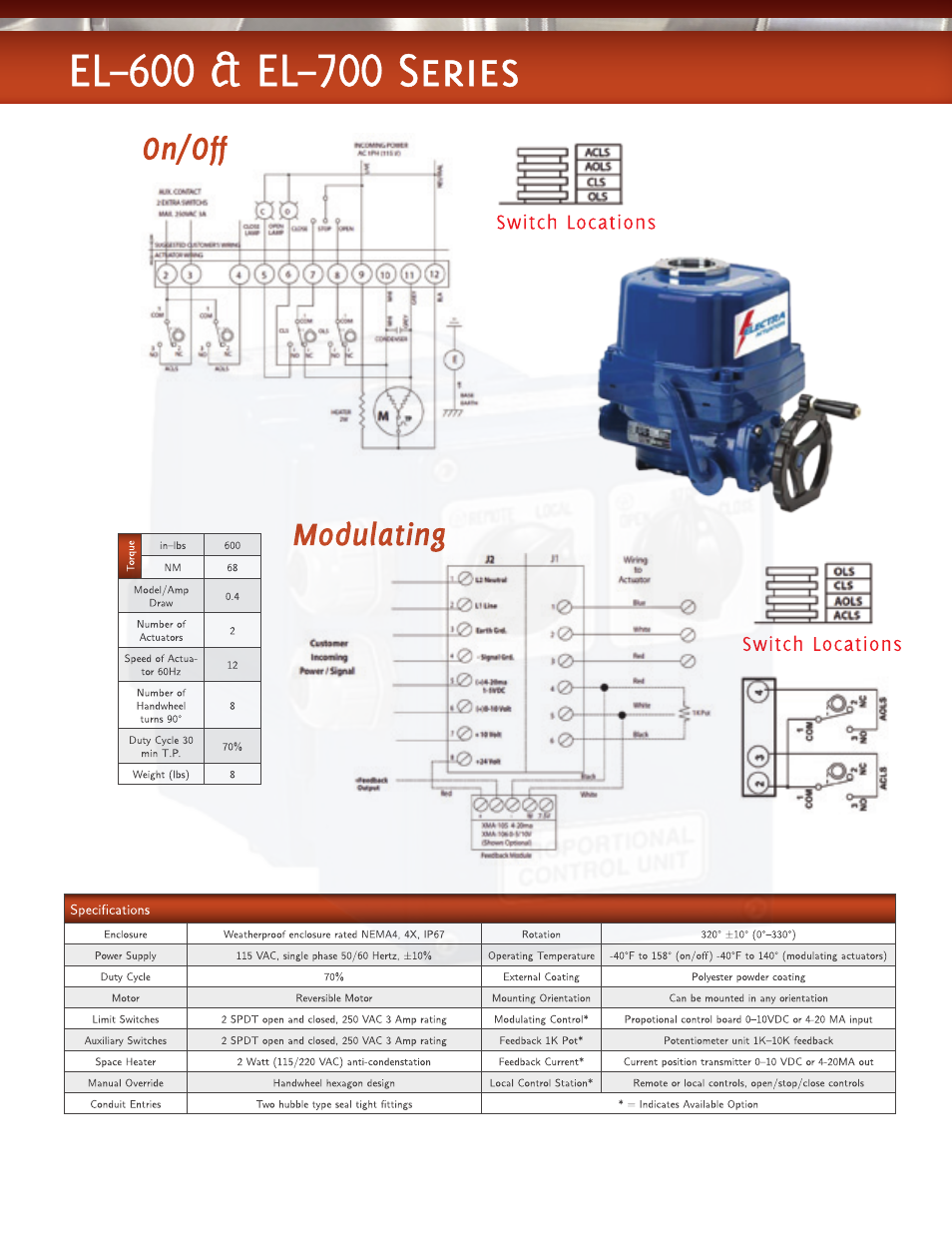

Specifications – QSM EL-700 Series User Manual
Page 2

(864)605-0150
To
rque
in–lbs
600
NM
68
Model/Amp
Draw
0.4
Number of
Actuators
2
Speed of Actua-
tor 60Hz
12
Number of
Handwheel
turns 90°
8
Duty Cycle 30
min T.P.
70%
Weight (lbs)
8
Specifications
Enclosure
Weatherproof enclosure rated NEMA4, 4X, IP67
Rotation
320° ±10° (0°–330°)
Power Supply
115 VAC, single phase 50/60 Hertz, ±10%
Operating Temperature
-40°F to 158° (on/off) -40°F to 140° (modulating actuators)
Duty Cycle
70%
External Coating
Polyester powder coating
Motor
Reversible Motor
Mounting Orientation
Can be mounted in any orientation
Limit Switches
2 SPDT open and closed, 250 VAC 3 Amp rating
Modulating Control*
Propotional control board 0–10VDC or 4-20 MA input
Auxiliary Switches
2 SPDT open and closed, 250 VAC 3 Amp rating
Feedback 1K Pot*
Potentiometer unit 1K–10K feedback
Space Heater
2 Watt (115/220 VAC) anti-condenstation
Feedback Current*
Current position transmitter 0–10 VDC or 4-20MA out
Manual Override
Handwheel hexagon design
Local Control Station*
Remote or local controls, open/stop/close controls
Conduit Entries
Two hubble type seal tight fittings
* = Indicates Available Option
