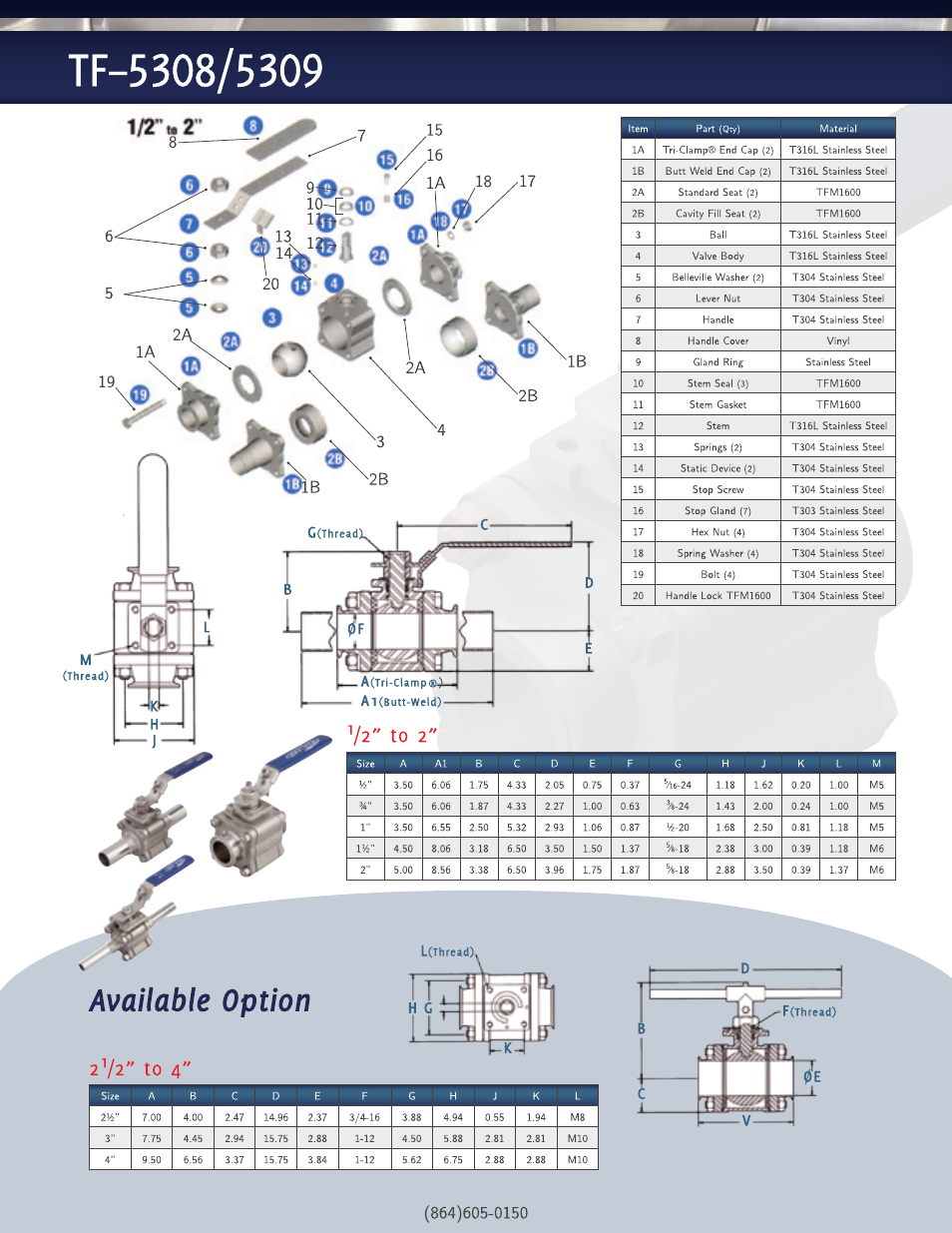

QSM TF-5308/5309 User Manual
Page 2
(864)605-0150
Item
Part
(Qty)
Material
1A
Tri-Clamp® End Cap
(2)
T316L Stainless Steel
1B
Butt Weld End Cap
(2)
T316L Stainless Steel
2A
Standard Seat
(2)
TFM1600
2B
Cavity Fill Seat
(2)
TFM1600
3
Ball
T316L Stainless Steel
4
Valve Body
T316L Stainless Steel
5
Belleville Washer
(2)
T304 Stainless Steel
6
Lever Nut
T304 Stainless Steel
7
Handle
T304 Stainless Steel
8
Handle Cover
Vinyl
9
Gland Ring
Stainless Steel
10
Stem Seal
(3)
TFM1600
11
Stem Gasket
TFM1600
12
Stem
T316L Stainless Steel
13
Springs
(2)
T304 Stainless Steel
14
Static Device
(2)
T304 Stainless Steel
15
Stop Screw
T304 Stainless Steel
16
Stop Gland
(7)
T303 Stainless Steel
17
Hex Nut
(4)
T304 Stainless Steel
18
Spring Washer
(4)
T304 Stainless Steel
19
Bolt
(4)
T304 Stainless Steel
20
Handle Lock TFM1600
T304 Stainless Steel
Size
A
A1
B
C
D
E
F
G
H
J
K
L
M
½”
3.50
6.06
1.75
4.33
2.05
0.75
0.37
5
∕
16
-24
1.18
1.62
0.20
1.00
M5
¾”
3.50
6.06
1.87
4.33
2.27
1.00
0.63
3
∕
8
-24
1.43
2.00
0.24
1.00
M5
1”
3.50
6.55
2.50
5.32
2.93
1.06
0.87
½-20
1.68
2.50
0.81
1.18
M5
1½”
4.50
8.06
3.18
6.50
3.50
1.50
1.37
5
∕
8
-18
2.38
3.00
0.39
1.18
M6
2”
5.00
8.56
3.38
6.50
3.96
1.75
1.87
5
∕
8
-18
2.88
3.50
0.39
1.37
M6
Size
A
B
C
D
E
F
G
H
J
K
L
2½”
7.00
4.00
2.47
14.96
2.37
3/4-16
3.88
4.94
0.55
1.94
M8
3”
7.75
4.45
2.94
15.75
2.88
1-12
4.50
5.88
2.81
2.81
M10
4”
9.50
6.56
3.37
15.75
3.84
1-12
5.62
6.75
2.88
2.88
M10
