Purenex 6-Stage 75 GPD UV Ultra Violet Reverse Osmosis RO Water System User Manual
Page 8
4.3.
4.3.
4.3.

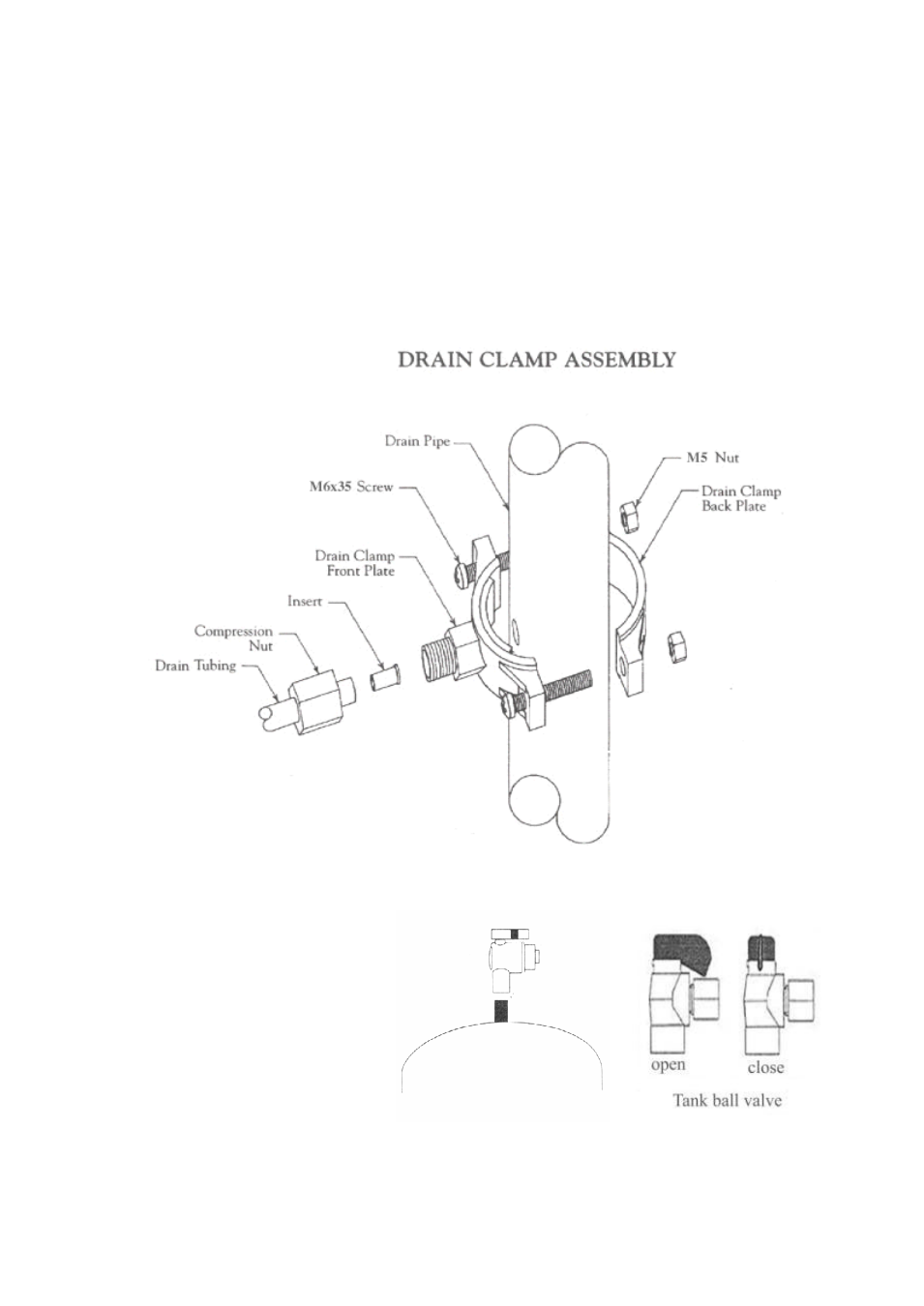

4.3. Drain
Drain
Drain
Drain Clamp
Clamp
Clamp
Clamp Installation
Installation
Installation
Installation
The following are instructions for discharging into the sink drainpipe.
4.3.1.
4.3.1.
4.3.1.
4.3.1. Position the Drain clamp on the drainpipe above the drain trap. Allow room for drilling. Tighten securely.
4.3.2.
4.3.2.
4.3.2.
4.3.2. Use a battery powered or properly grounded drill. Using the Clamp port as a drill guide, drill a 7/32” hole
through the wall of the drainpipe. DO NOT penetrate the opposite side of the pipe.
4.3.3.
4.3.3.
4.3.3.
4.3.3. Locate the Drain Tubing.
NOTE:
NOTE:
NOTE:
NOTE: When cutting the tubing make clean, square, cuts, failing to do so could result in poor connection
and possible leaks.
CAUTION:
CAUTION:
CAUTION:
CAUTION: The lowest point of the line should be the point of connection to the Drain Clamp. There
should be no sag in the line as this may cause excessive noise as the reject water is flowing to drain.
4.4.
4.4.
4.4.
4.4. Install the Tank ball valve
Note:
Note:
Note:
Note: DO not adjust the air valve on the
pressure tank. The manufacturer has
already preset and screwed it.
4.4.1.
4.4.1.
4.4.1.
4.4.1. Wrap the top of the pressure tank
by seal tape 3 times. Make sure it is tight.
4.4.2.
4.4.2.
4.4.2.
4.4.2. Fix the tank ball valve to the top of
the pressure tank.
4.4.3.
4.4.3.
4.4.3.
4.4.3. Connect the pipe from the RO
membrane to the tank ball valve.
