Users Guide: iMFD Sensor Module
Version 1.0 February 9, 2007
www.plxdevices.com
(408)745-7591

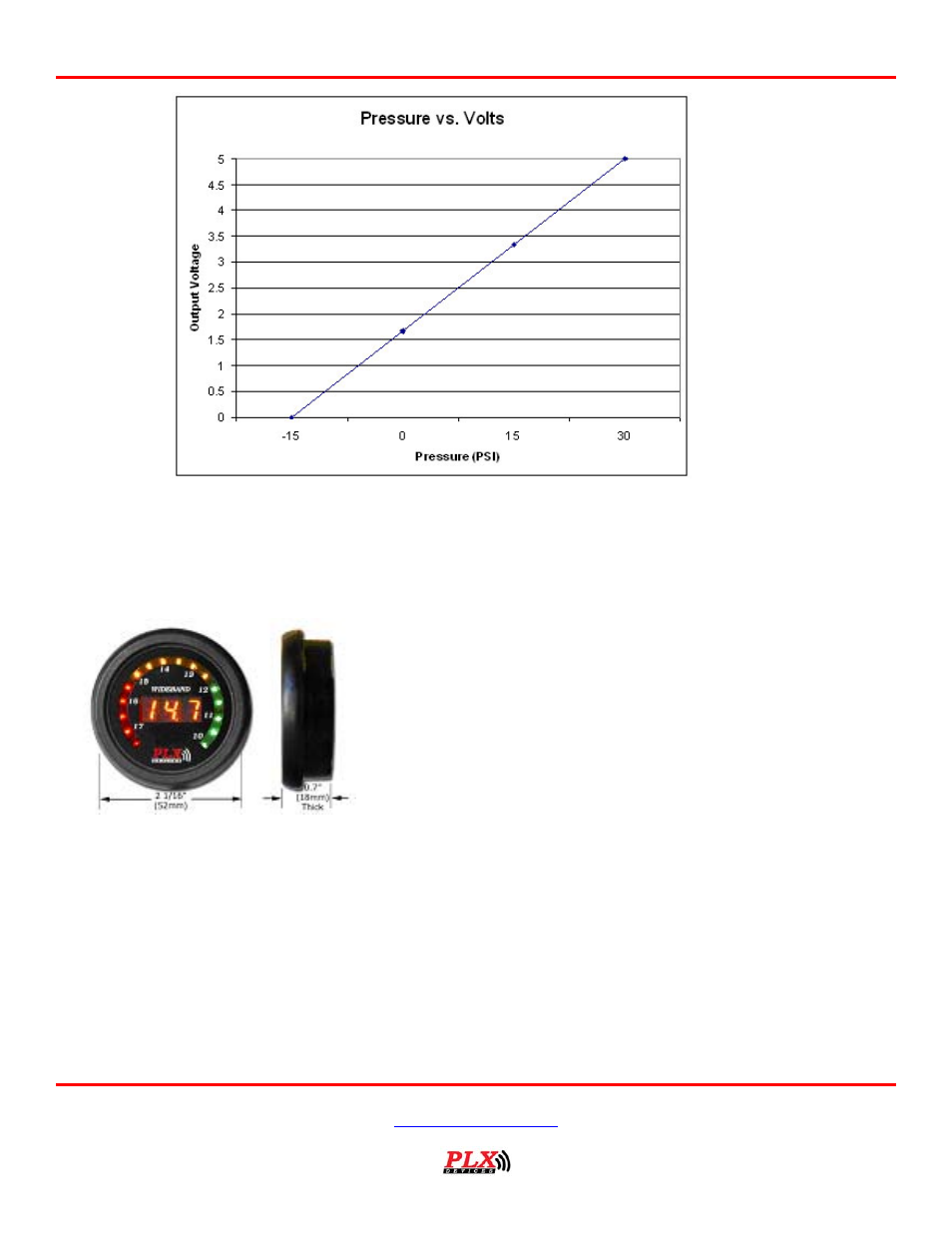

(Figure 5)
Vacuum Range (0V = 30.5inHg = -15PSI, 1.66V = 0PSI)
Boost Range (1.66V = 0PSI, 5.0V = 30PSI)
Recommended Accessory:
(Figure 6)
DM-5 Vac/Boost 52mm Gauge. Ideal for affordable vacuum and boost
monitoring from your SM-Vac/Boost
Included Items:
1. SM-Vac/Boost main unit
2. 4ft red power wire
3. 4ft black ground wire
4. 4ft gray analog output wire
5. 2.1mm power connector
6. 4 pin Molex connector with 4 terminals for analog output
7. 1ft Serial Cable
8. Termination jumper
9. Users Guide
