Users Guide: iMFD Sensor Module
Version 1.0 January 23, 2006
www.plxdevices.com
(408)745-7591

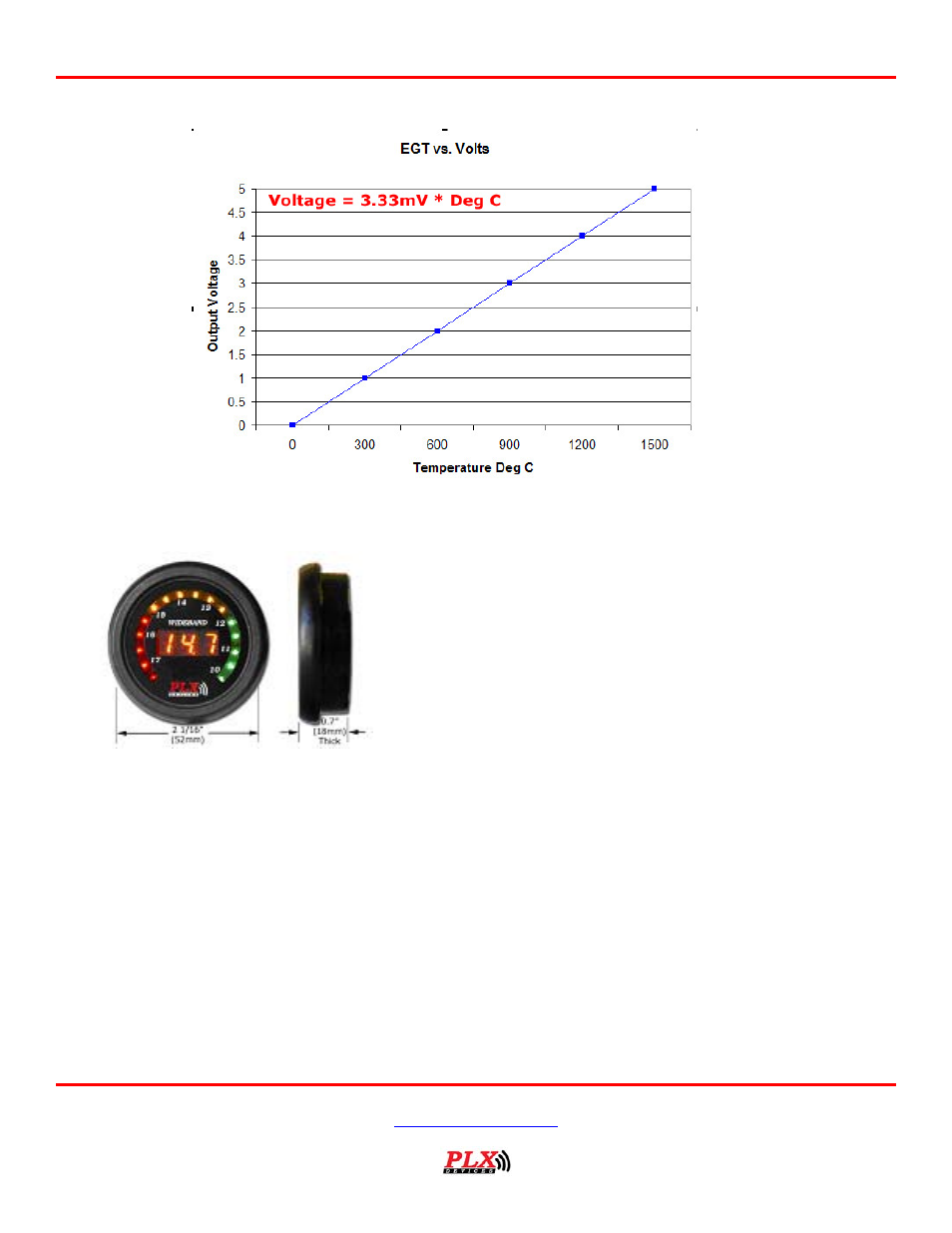

Linear Analog Output (0-5V)
(Figure 5)
Recommended Accessory:
(Figure 5)
DM-5 EGT 52mm Gauge. Ideal for affordable EGT monitoring from your SM-EGT
Included Items:
1. SM-EGT main unit
2. 4ft red power wire
3. 4ft black ground wire
4. 4ft analog gray wire
5. Molex 4 pin white connector with 3 terminals
6. 2.1mm connector for power
7. 1ft Serial Cable
8. Termination jumper
9. Users guide
10. K-Type T.C (available separately)
