CONNECTING YOUR Q3
Model
302
303
305 Connection
Telephone
Analog Audio, Smart Phones/Tablets
SIP/IP Phone
CONNECT TO A COMPUTER
This connection is for any session using your computer, such as Voice Over IP applications
(Skype, Vidyo, etc.)
1 Using the USB cable provided, plug the mini USB side of the cable into
the Q3 (located on the connector panel below the unit).
2
Plug the USB end of the cable into any USB port on your computer.
Your Quattro3 is ready to use.
No additional drivers or steps are needed. However we do recommend downloading and using
our “Phoenix Audio Setup Utility” for optimal audio control and performance. This utility can
be found on our website:
www.phnxaudio.com
For more connection options, you can
purchase different modules sepa-
rately to add on to your
Quattro3. To the right is a list of the
different interface modules that can
be installed in your Quattro3.
quatte03-301-8-31
WEIGHT:
A4
SHEET 1 OF 1 SCALE:1:1
DWG NO.
TITLE:
REVISION DO NOT SCALE DRAWING
MATERIAL:
DATE SIGNATURE NAME
DEBUR AND
BREAK SHARP
EDGES FINISH: UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
Q.A
MFG
APPV'D
CHK'D
DRAWN

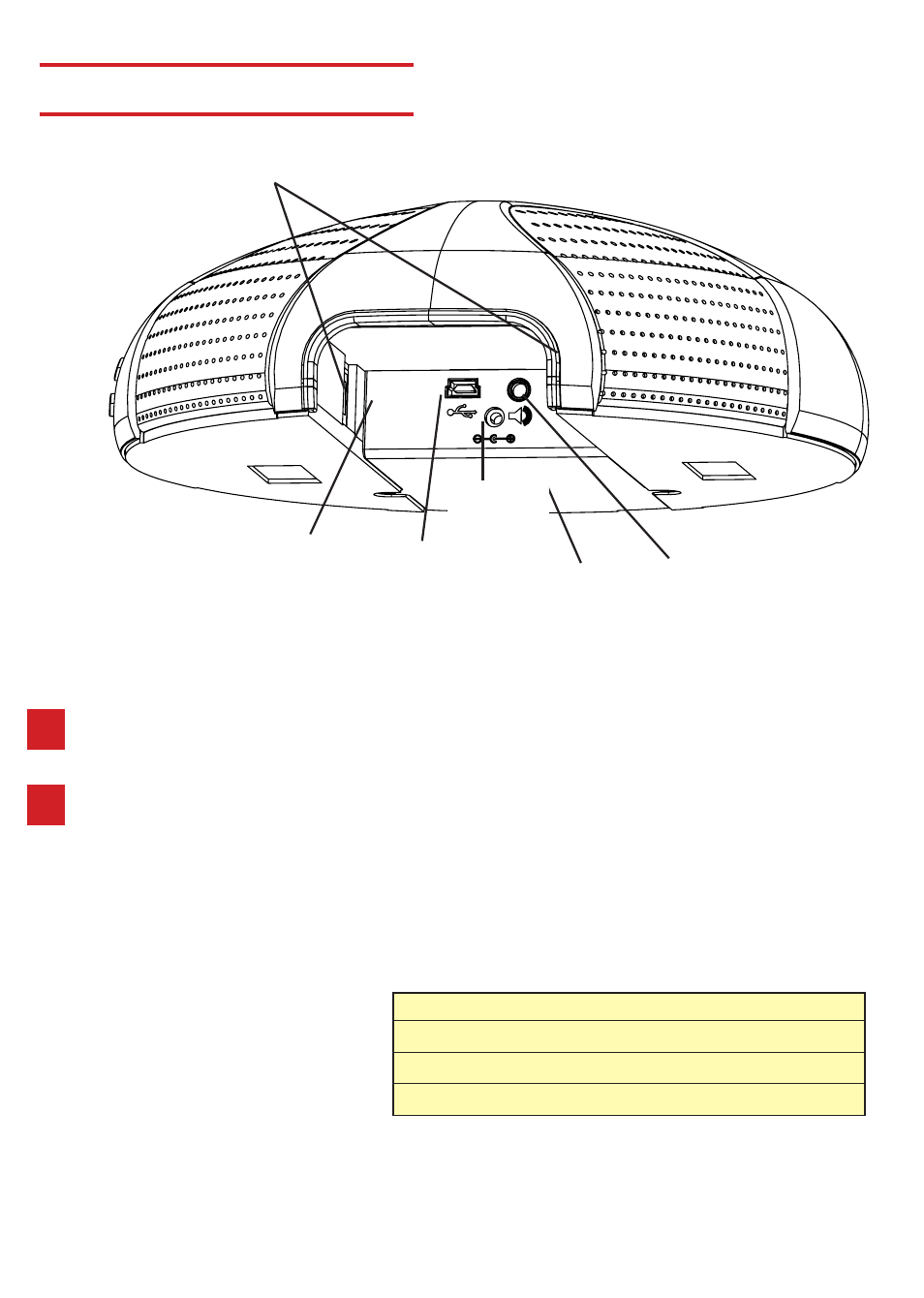

Connector Panel
Interface Module
3.5mm External
Speaker/Microphone Mini USB
Daisy Chain Connectors
Down (right)
Up (left)
DC Power
Connector
