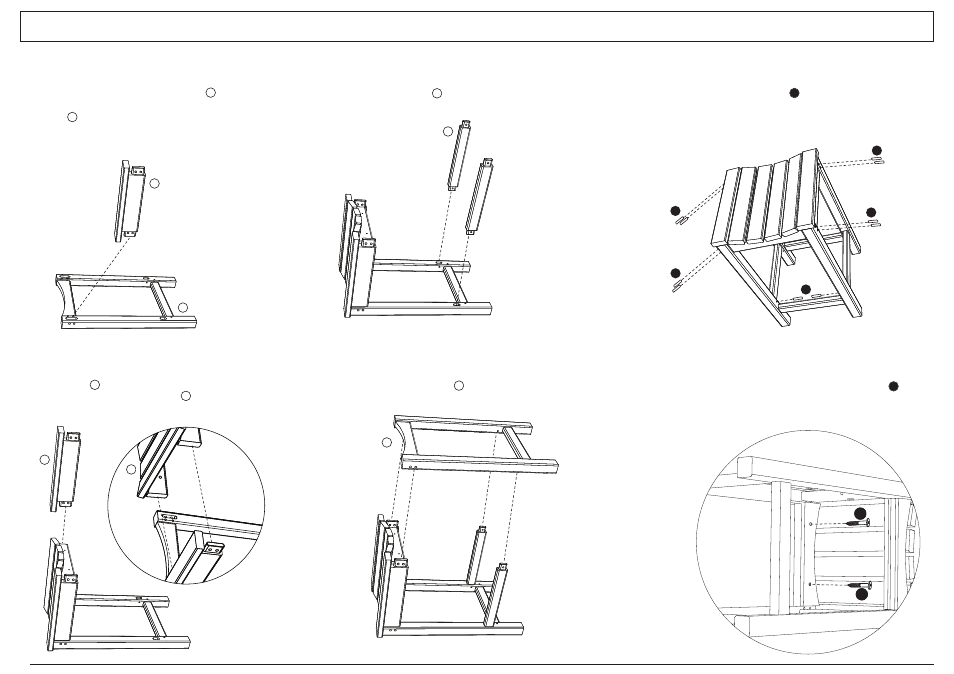

Insert the seat into position as shown in Detail 1.
Next repeat step 1 for the back seat rail .
Detail 1
Step 1
On a clean flat surface, lay right leg assembly on its
side mortise holes facing up. Line up and insert the front
seat rail into the right leg assembly.
NOTE: Do not hammer in any dowels until step 5.
Step 3 Step 5
Step 6
Using a phillips head screwdriver, screw two wood screws into
the predrilled holes on each side of the seat assembly as shown.
Repeat on opposite side of the seat assembly using the remaining
2 wood screws. B
Assembly Instructions
page 2
Hampton Counter Stool
Step 2
With a hammer, drive 12 dowels into the predrilled holes as shown.
NOTE: Insert the tapered end of the dowels first. The dowels should
be easily driven in flush. If there is strong resistance, do not force the
dowel. Sand to smooth off areas around the dowel pins. A
A
Insert each stretcher as shown.
Step 4
6
Insert the left leg assembly . 2
2
1
1
5
4
4
3
A
A
A
B
B
5
6
3
A
