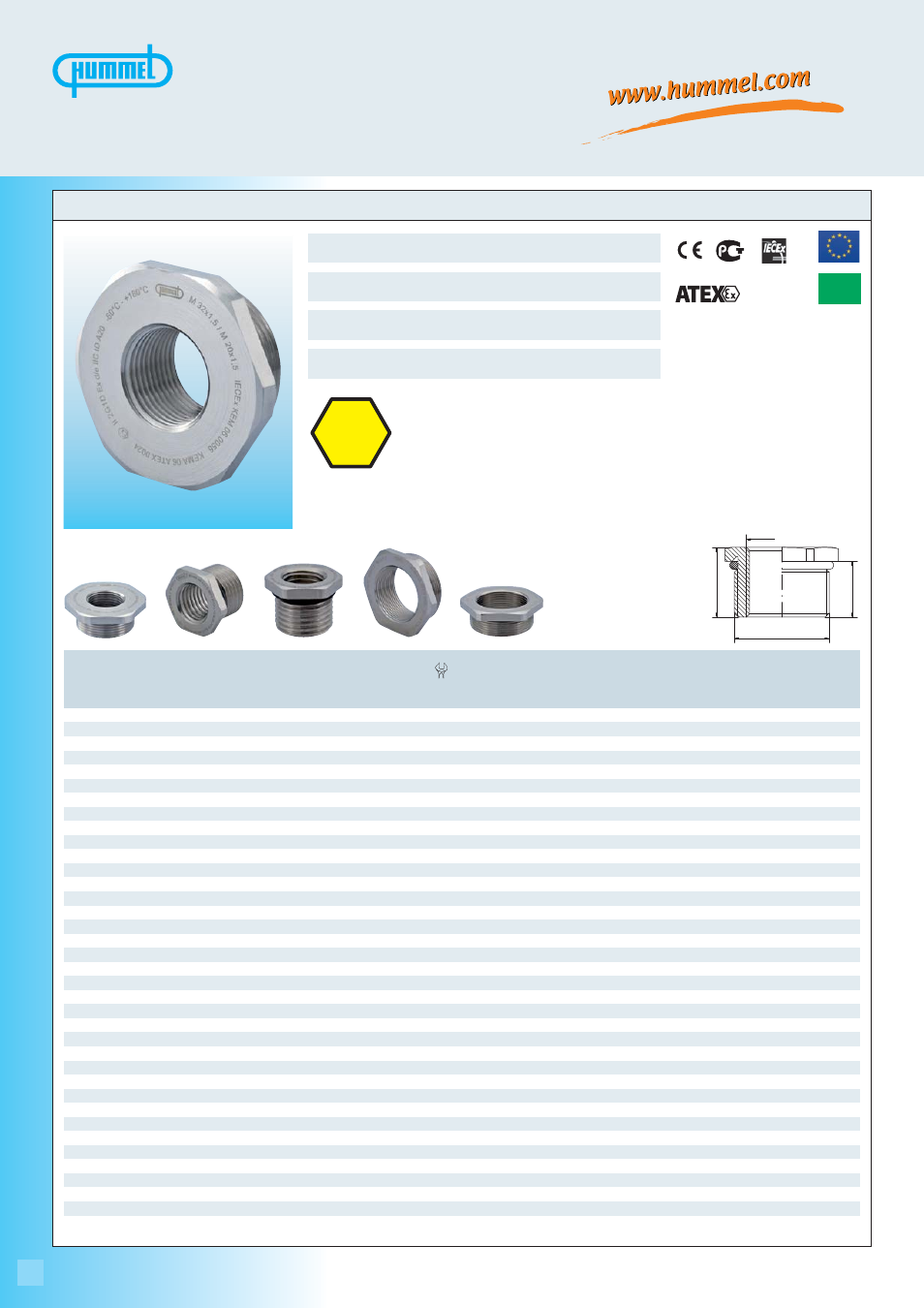

Northern Connectors Hummel Ex Cable Gland Accessories - Manual (Page 8)

150
H
AG
GL
IG
M
RoHS
II 2G 1D Ex d IIC
M 16 x 1,5 M 12 x 1,5 16 19 19 1.878.1612.50 1.879.1612.50
M 20 x 1,5 M 12 x 1,5 16 19,5 22 1.878.2012.50 1.879.2012.50
M 20 x 1,5 M 16 x 1,5 16 19,5 22 1.878.2016.50 1.879.2016.50
M 25 x 1,5 M 16 x 1,5 16 19,5 30 1.878.2516.50 1.879.2516.50
M 25 x 1,5 M 20 x 1,5 16 19,5 30 1.878.2520.50 1.879.2520.50
M 32 x 1,5 M 16 x 1,5 16 20,5 41 1.878.3216.50 1.879.3216.50
M 32 x 1,5 M 20 x 1,5 16 20,5 41 1.878.3220.50 1.879.3220.50
M 32 x 1,5 M 25 x 1,5 16 20,5 41 1.878.3225.50 1.879.3225.50
M 40 x 1,5 M 20 x 1,5 16 21 46 1.878.4020.50 1.879.4020.50
M 40 x 1,5 M 25 x 1,5 16 21 46 1.878.4025.50 1.879.4025.50
M 40 x 1,5 M 32 x 1,5 16 21 46 1.878.4032.50 1.879.4032.50
Ex-d
Ex-e
Ex accessories
RSD-Ms-Ex-d Metr.
Protection IP 68 – 10 bar / IP 69K (NEMA 6 – 150 PSIG)
Operating Temperature - 20 °C – 95 °C (- 4 °F – 203 °F) (Buna-N)
- 60 °C – 180 °C (- 76 °F – 356 °F) (VMQ)
O-Ring Buna-N / VMQ
Material Nickel plated brass
Number Number
AG IG GL H Buna-N VMQ
mm mm mm - 20 °C – 95 °C - 60 °C – 180 °C
(- 4 °F – 203 °F) (- 76 °F – 356 °F)
Dimensions and specifications may be changed without prior notice
For the international certificates
please see page 176 or our homepage
www.hummel.com
