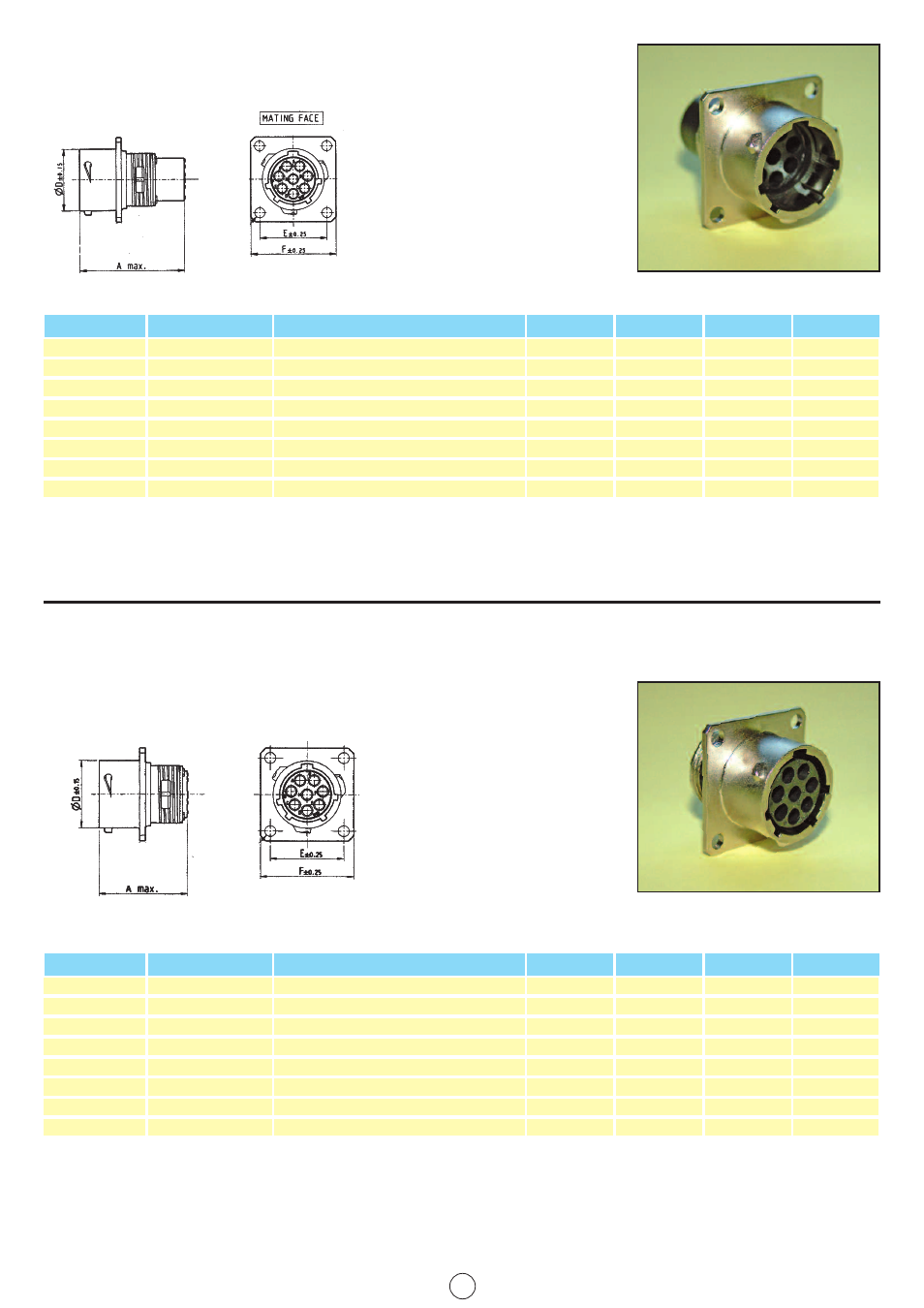

Chassis receptacle for pin contacts
SHELL SIZE
10
12
14
16
18
20
22
24
No. OF WAYS
4
8
12
19
23
28
35
48
PART NUMBER
UT00104PH
UT00128PH
UT001412PH
UT001619PH
UT001823PH
UT002028PH
UT002235PH
UT002448PH
A MAX
31.7
31.7
31.7
31.7
31.7
33.3
33.3
33.3
D
15.0
19.0
22.2
25.3
28.5
31.7
34.9
38.0
E
18.3
20.6
23.0
24.6
26.9
29.4
31.8
34.9
F
23.8
26.2
28.6
31.0
33.3
36.5
39.7
42.9
Dimensions in millimetres
Chassis receptacle for socket contacts
For IP68 add 6 to the end of the part number eg. UT00104PH6
A square flange sealing has to be ordered separately to guarantee a sealing with the equipment, see. (UTFD_). See page 10.
SHELL SIZE
10
12
14
16
18
20
22
24
No. OF WAYS
4
8
12
19
23
28
35
48
PART NUMBER
UT00104SH
UT00128SH
UT001412SH
UT001619SH
UT001823SH
UT002028SH
UT002235SH
UT002448SH
A MAX
31.7
31.7
31.7
31.7
31.7
33.3
33.3
33.3
D
15.0
19.0
22.2
25.3
28.5
31.7
34.9
38.0
E
18.3
20.6
23.0
24.6
26.9
29.4
31.8
34.9
F
23.8
26.2
28.6
31.0
33.3
36.5
39.7
42.9
Dimensions in millimetres
For IP68 add 6 to the end of the part number eg. UT00104SH6
A square flange sealing has to be ordered separately to guarantee a sealing with the equipment, see. (UTFD_). See page 10.
