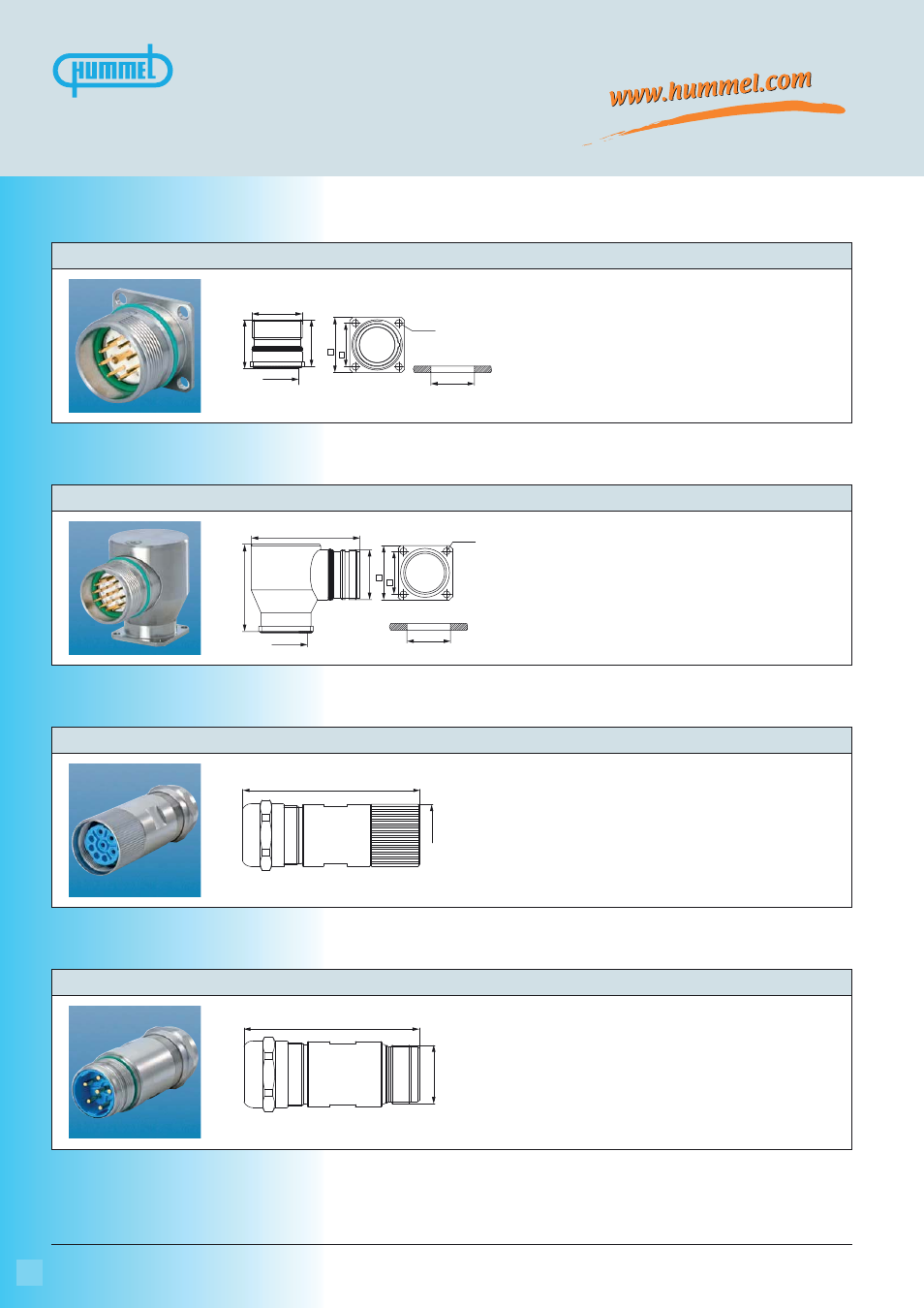

Northern Connectors Hummel M23 Stainless Steel Connector Housings - Manual (Page 6)

74,8
Ø 26
M 23 x 1
69,6
Ш 20 + 0,1
Ш 3,2
21,5
M 23 x 1
22,5
Ø 19,8
25 19,8
40,2
50
M 23 x 1
Ш 19,8
Ш 2,7
Ш 20 + 0,1
25 19,8
160
7 – 12 mm (.27 – .47“).......7.564.500.000
11 – 17 mm (.43 – .67“).....7.564.600.000
7 – 12 mm (.27 – .47“).......7.554.500.000
11 – 17 mm (.43 – .67“).....7.554.600.000
Dimensions and specifications may be changed without prior notice
Straight Connector, Male Thread
Contacts and inserts page 113 • Assembly instructions page 121
Cable-Ø Part Number
Contacts and inserts page 113 • Assembly instructions page 121
Cable-Ø Part Number Straight Connector, Female Thread
Signal- / Power Connectors M23 / Stainless Steel (INOX)
Panel hole
Panel hole
Contacts and Inserts page 74
Right Angle Panel Connector, Male Thread Type Part Number
Panel Connector, Male Thread
Contacts and inserts page 74 • Assembly instructions page 91 / 92
Type Part Number
With anti-vibration O-Ring
4 holes Ø 3,2 mm (.13“) .....7.410.400.000
4 holes Ø 2,7 mm (.11“) .....7.430.400.000
