PAGE 24 — MQ-WHITEMAN FS1 CONCRETE SAW — PARTS & OPERATION MANUAL — REV. #3 (04/24/03)
3. Check V-belt tension (Figure 16) by using a tension meter
(6.0 - 9.0 lbs) against the inside belt at a mid point between
the two pulleys, or by deflecting the center belt at a mid point
3/8” (10mm) - 1/2” (13mm).

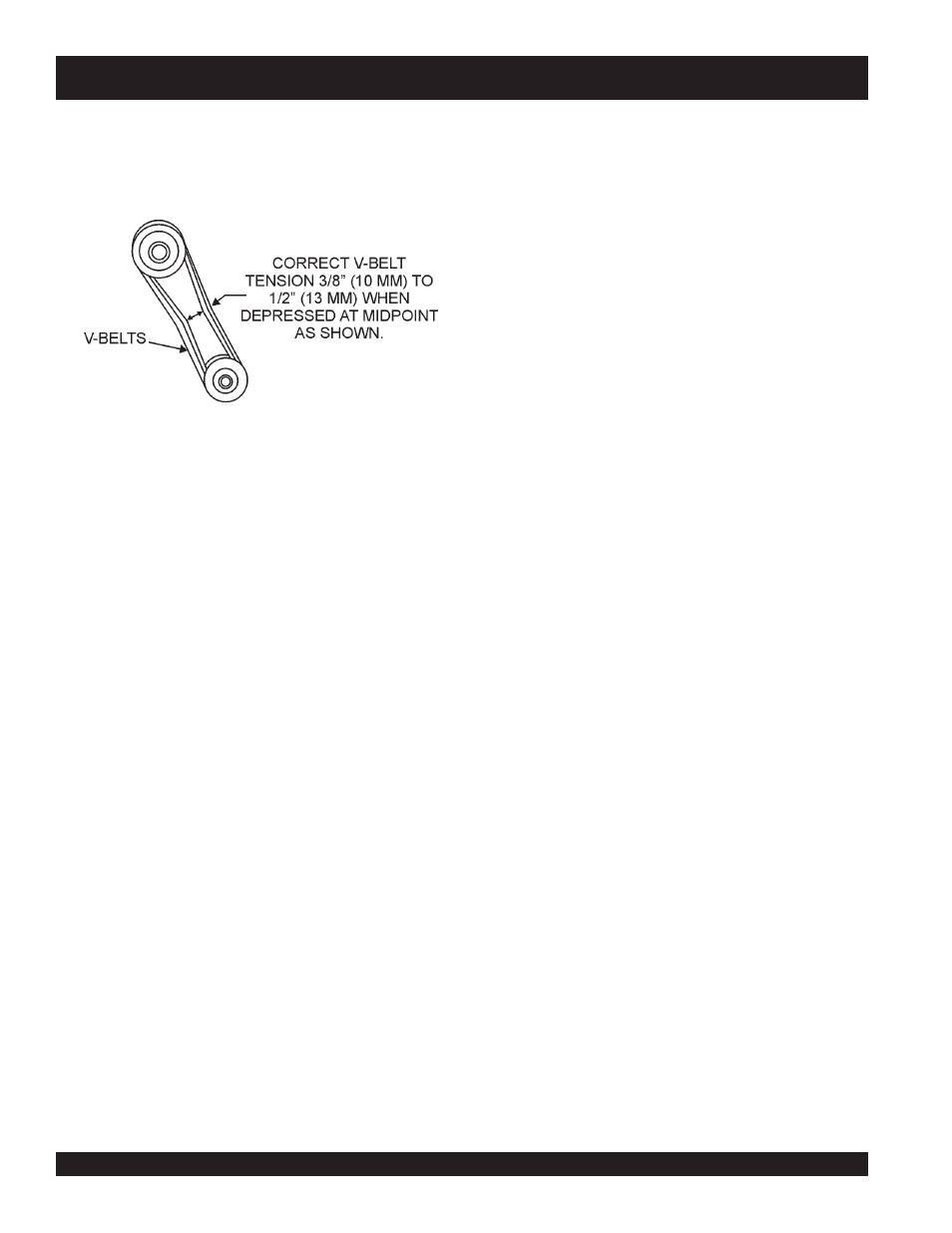

Figure 16. V-Belt Tension
4. DO NOT over or under tension the V-belts. Severe damage
can occur to the saw and engine crank shaft if the belts are
over tensioned. A decrease of power to the blade and poor
performance will result if the belts are under tensioned (loose
on pulleys).
5. If the V-belts becomes worn or loose, replace them by using
V-belt part number .
FS 1 CONCRETE SAW — INSPECTION -GUARDS, COVERS AND V-BELTS
