HS62 CUT-OFF SAW — SAW ASSEMBLY INSTRUCTIONS
Blade Installation Procedure
STEP 1
For proper installation, first remove the blade shaft nut
X
,
outer flange
Y
, and inner “dual-arbor” flange
Z
.

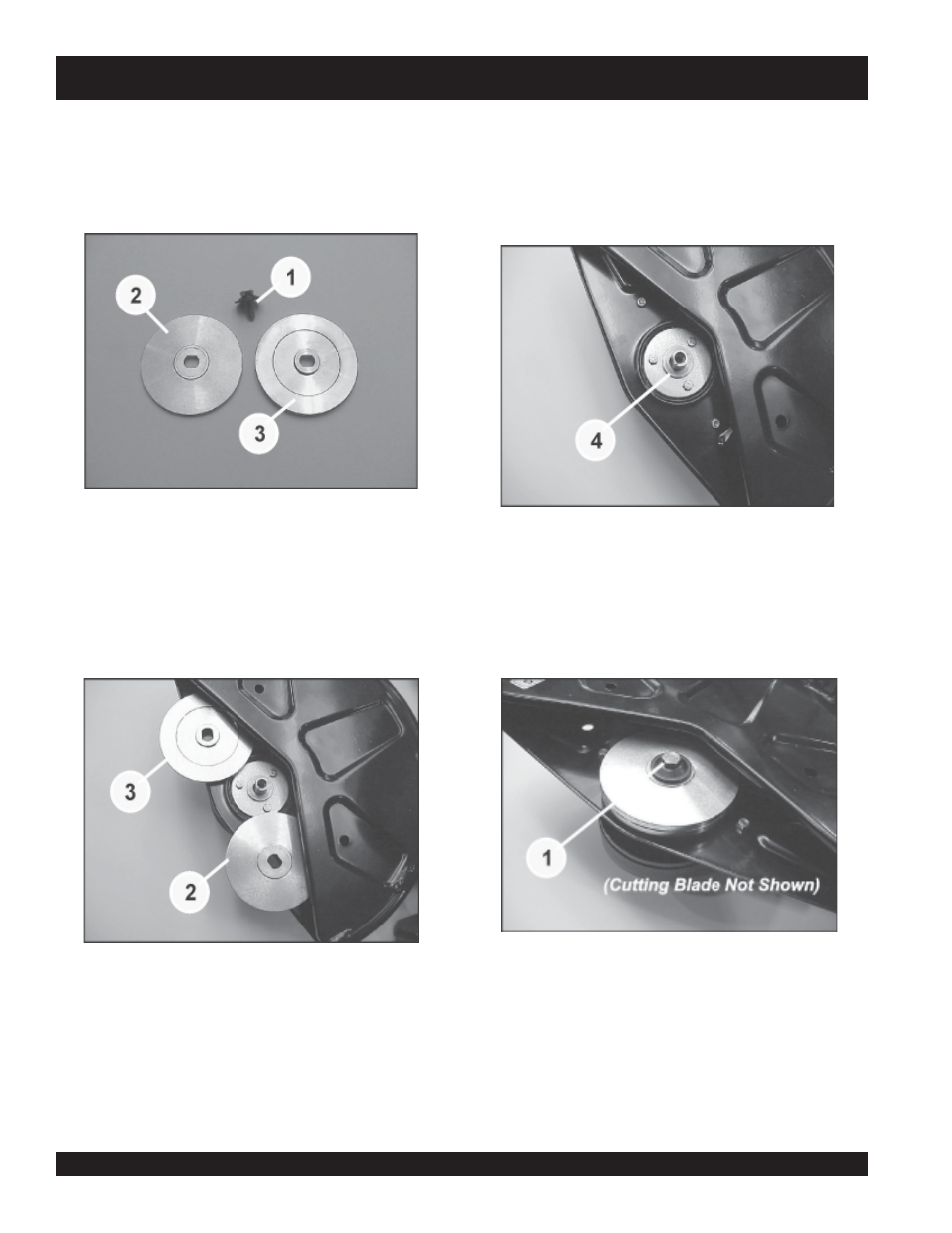

Figure 12. Inner and Outer Flanges (Removal)
Figure 13. Inner and Outer Flanges (Placement)
STEP 2
A dual sided, “dual-arbor” inner flange
Z
accommodates either
a 20 mm or 1-inch arbor hole for operator safety and convenience.
The outer flange
Y
fits on top of the cutting blade.
STEP 3
Chose the proper blade arbor side of the inner flange (to match
your cutting blade arbor) and place this selected side to the
blade shaft
[
.
Figure 14. Selecting the Proper Blade Arbor
STEP 4
Match the arbor side to the dimension of your blade arbor and
“sandwich” between the inner and outer flanges. Tighten the
blade shaft nut
X
securely to hold the blade in place.
Figure 15. Securing the Cutting Blade
