PAGE 18 — MULTIQUIP EM-900SDCE — OPERATION AND PARTS MANUAL — REV. #2 (09/14/07)

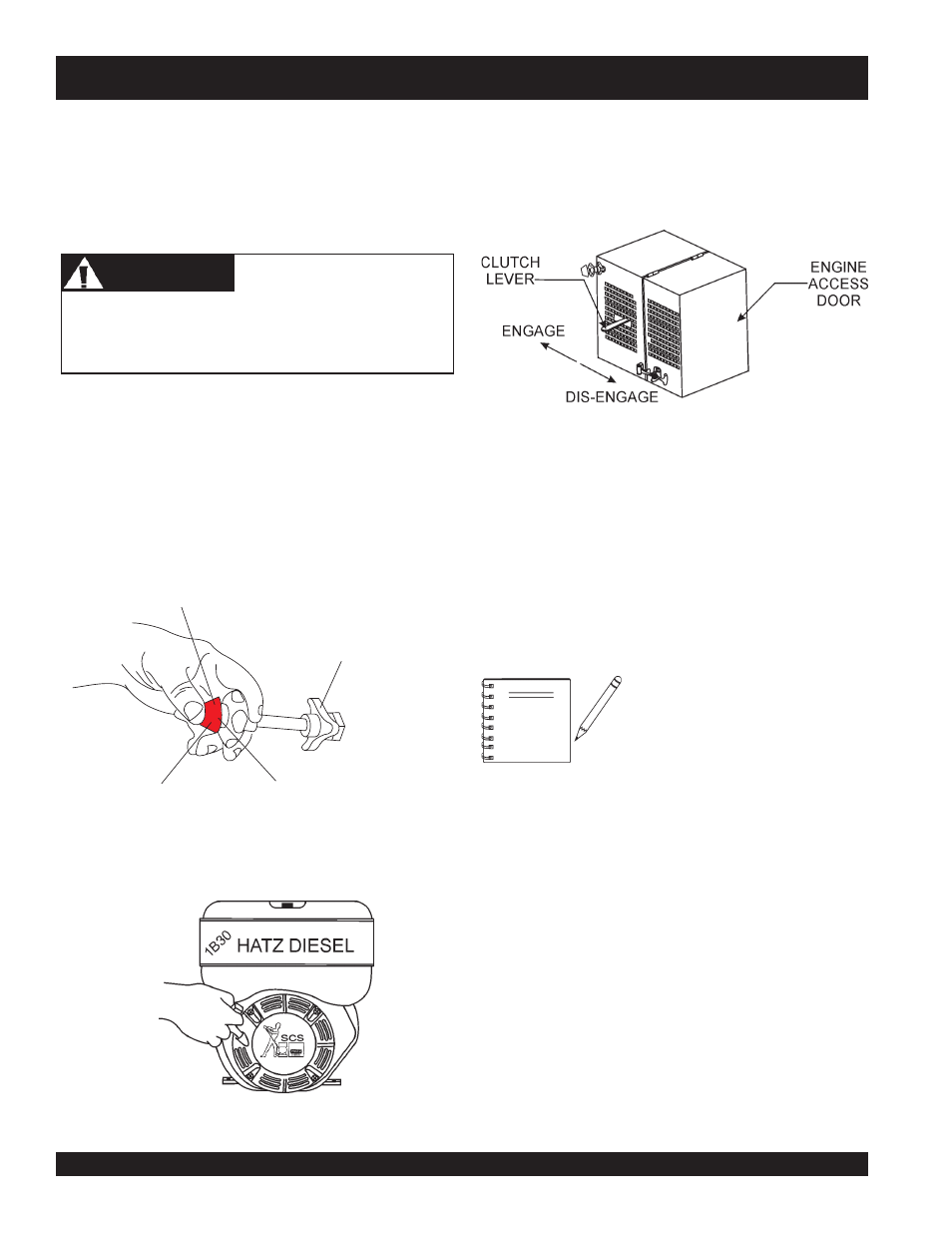

Figure 10. Starter Grip
EM -900SDCE MIXER — INITIAL START-UP
This section is intended to assist the operator with the initial
start-up of the EM-900SDCE mixer. It is extremely important that
this section be read carefully before attempting to use the mixer
in the field.
DO NOT use your mixer until this section is thoroughly
understood.
STARTING THE ENGINE
The following steps outline the procedure for starting the engine.
1. Make sure the clutch engagement lever is in the dis-engage
position (lever is pointing towards the
engine end ).
2 PUSH the "RED" button (Figure 9) on the throttle control
and pull the round black knob about halfway out. Make
sure that the throttle lock knob has been dis-engaged.
Figure 9. Throttle Control Knob
6. Pull the starter grip (Figure 10) lightly until you feel
resistance, then pull briskly. Return the starter grip gently.
MIXING
1. The paddle shaft inside the drum should be rotating at
this time.
2. Lift the mixing bag compound onto the steel grate over
the bag cutter and let the contents fall into the drum.
3. Add water, and mix compound to desired consistency,
Be sure to stand clear of the dump
handle when the mixer is
operational. Any binding of material
between the mixer blades and the
drum will cause the drum handle to
move to the discharge position, thus
causing bodily harm.
7. Push the clutch engagement lever forward (Figure 11),
toward the tow end of the mixer. When engine starts adjust
throttle lever so that paddle shaft inside mixer rotates
between 30 - 40 RPM's. The number of RPM's will vary
depending on engine type and load.
Figure 11. Clutch Engagement Lever
STOPPING THE ENGINE
1. Place the clutch engagement lever in the dis-engage
position (lever is pointing towards the
engine end ).
2. PUSH the "RED" throttle button halfway in (idle speed).
Allow the engine to cool for 3-5 minutes.
3. PUSH the "RED" throttle button all the way in, this will
stop the engine.
THROTTLE RELEASE
AND STOP BUTTON
PUSH-IN, THEN PULL
TO SET THROTTLE
(RPM’s)
PUSH ALL THE DOWN
TO STOP ENGINE
THROTTLE LOCK
KNOB, TURN CLOCKWISE
TO LOCK THROTTLE CABLE.
Failure to understand the operation of the EM-900SDCE mixer
could result in severe damage to the mixer or personal injury.
CAUTI CAUTI CAUTI CAUTI CAUTION
NOTE
