PAGE 32 — EM-70 PLASTER/MORTAR MIXER — OPERATION MANUAL — REV. #1 (008/10/04)
Tires/Wheels/Lug Nuts
Tires and wheels are a very important and critical compo-
nents of the trailer. When specifying or replacing the trailer
wheels it is important the wheels, tires, and axle are prop-
erly matched.
Tires Wear/Inflation
Tire inflation pressure is the most important factor in tire life.
Pressure should be checked cold before operation. DO NOT
bleed air from tires when they are hot. Check inflation pres-
sure weekly during use to insure the maximum tire life and
tread wear.
Grease Fittings (Zerk) Maintenance (Electric Motor)
1. There are two grease (Figure 34) fittings at each end of
the electric motor that will require lubrication. Lubricate
these fittings
about every 16 months.
2. Use Poleyrex EM (Exxon Mobil) or equalivant lubricant.
Clean grease fitting, apply grease gun to fitting (1/2
shot). Remember too much
grease or injecting grease too
quickly can cause premature
bearing failure. Slowly apply the
recommended amount of grease,
taking a miniute or so to apply.
Figure 34. Grease Fittings
Electric Motor
EM-70 PLASTER/MORTAR MIXER — MAINTENANCE (MIXER)
DO NOT attempt to repair or modify a
wheel. DO NOT install an inter-tube to
correct a leak through the rim. If the
rim is cracked, the air pressure in the
inter-tube may cause pieces of the rim to explode (break-
off) with great force and can cause serious eye or bodily
injury.
WARNING WARNING WARNING WARNING WARNING
ALWAYS wear safety glasses when
removing or installing force fitted
parts. Failure to comply may result
in serious injury.
WARNING WARNING WARNING WARNING WARNING
Damaged Wheels
Eyesight Hazard
Gear Lubrication
The surface of the pinion and main gear (Figure 33) should
be very lightly greased.

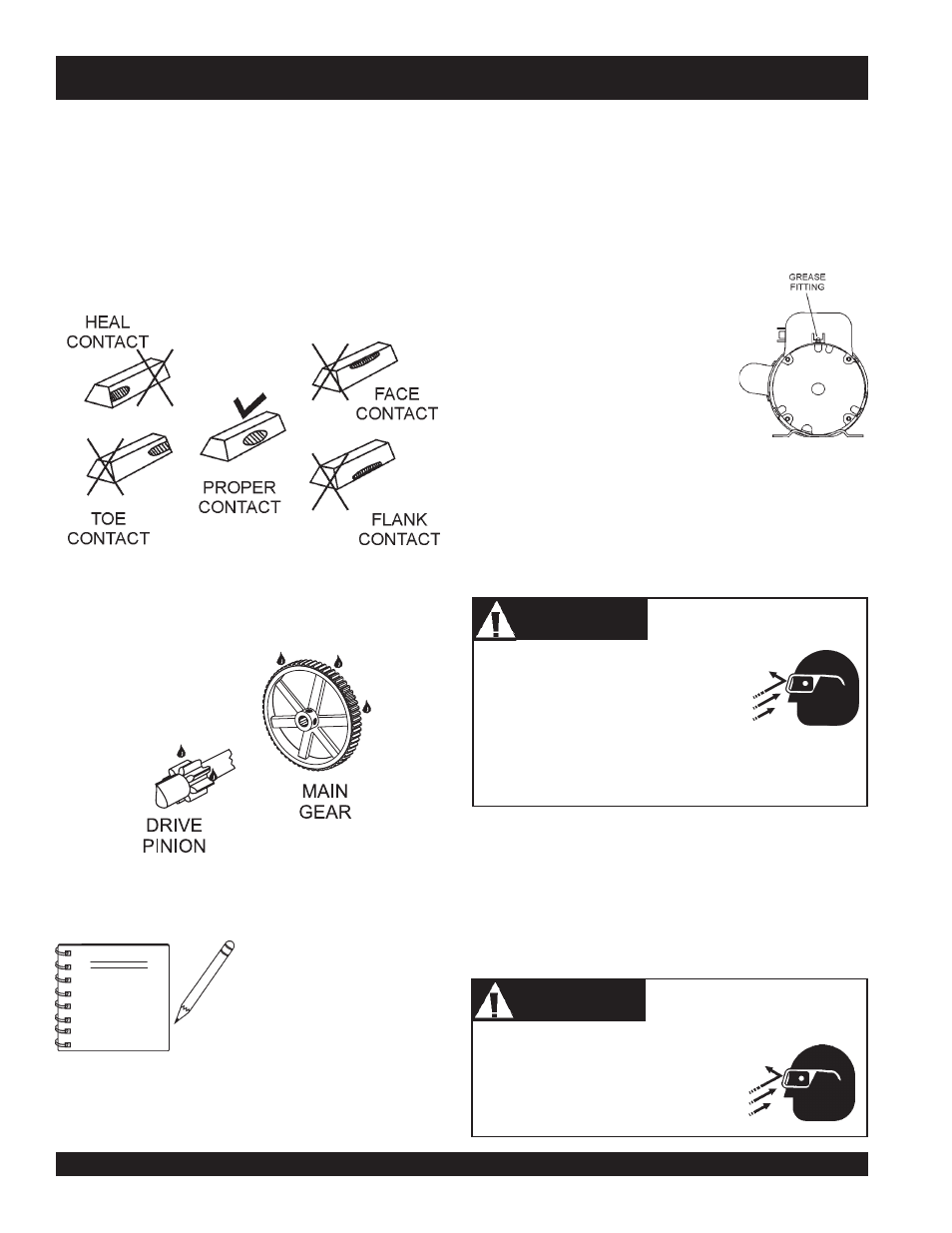

Figure 33. Pinion and Bull Gear Lubrication
Inspect Tooth Contact between Main Gear and Drive
Pinion
1. Coat 3 or 4 teeth at 3 different positions on the main
gear with yellow paint.
2. Rotate the drive pulley in both directions.
3. Inspect the tooth pattern.
4. If gear teeth are not contacting properly (Figure 32),
adjust pillow block to correct the problem.
Figure 32. Gear Teeth Alignment
NOTE
Grease main and pinion gears
every
250 hours of
operation. IMPORTANT!
Avoid over-greasing.
Excess grease will accumulate contaminates and cause
premature wear.
