PAGE 14 — ST-1500 SERIES SUBMERSIBLE PUMPS — OPERATION & PARTS MANUAL — REV. #0 (10/04/04)
Control Box (CB3)
For special remote pumping applications of the submersible pump, a control box ( Model CB3 ) may be required. This water resistant
control box provides watertight housing and glands to prevent water from leaking into the box, and a float switch interface. When using
the CB3 control box, only the
SW-1WOP float switch (2) can be used (no plug, bare wires). Shown below (Figure 7) is a wiring layout of
the CB3 control box. See page 22 for a wiring diagram of the control box.
ST-1500 SERIES SUB. PUMP
—
FLOAT SWITCH (CONTROL BOX)

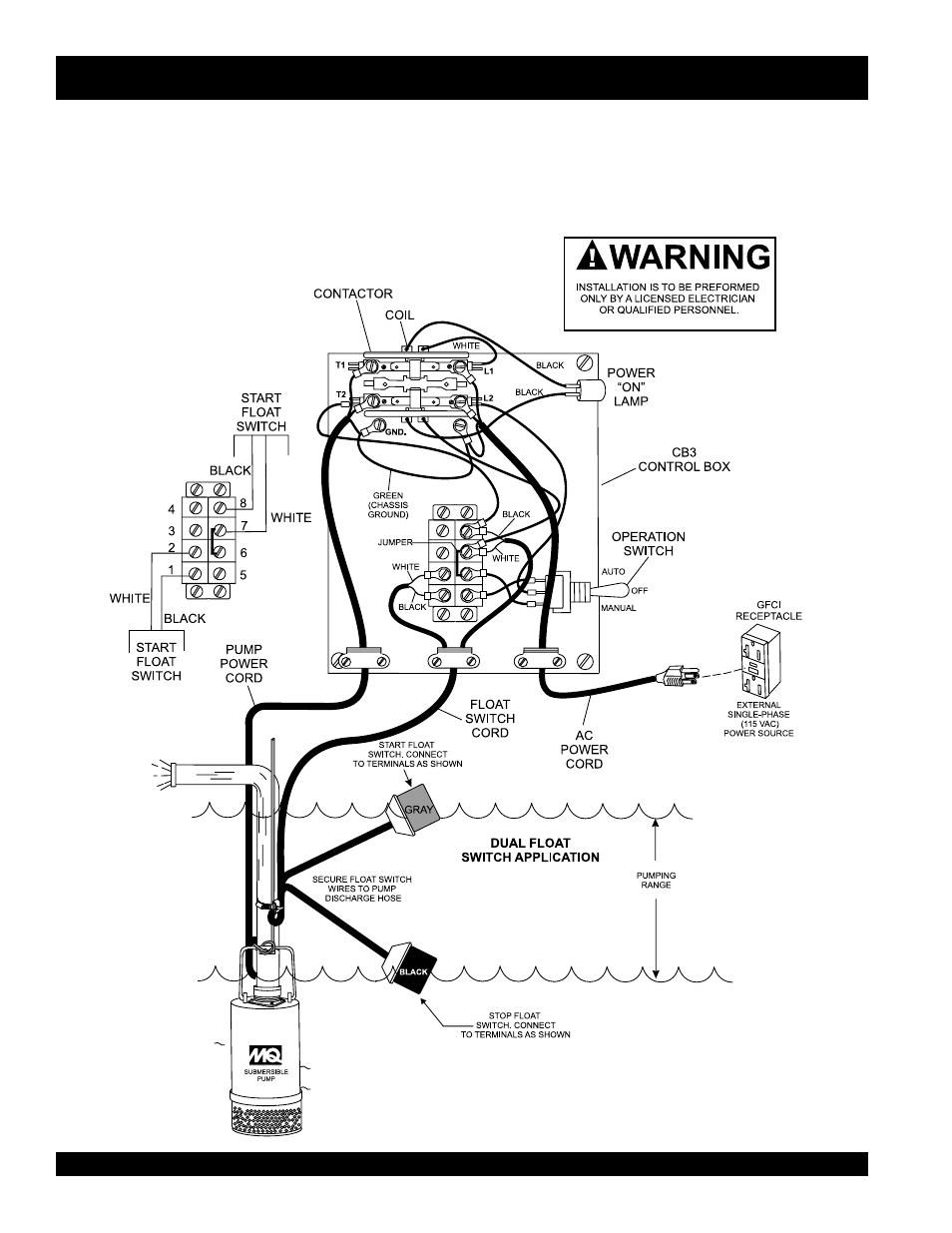

Figure 7. CB3 Control Box and Dual Float Switch
Application Diagram
