PAGE 12 — QP402H CENTRIFUGAL PUMP • OPERATION AND PARTS MANUAL — REV. #2 (01/29/14)
SPECIFICATIONS (ENGINE)
Table 2. Specifications (Engines)
Engine
Model
HONDA GX240U1PMT2/
GX240UT2PMT2
Type
Air-cooled 4 stroke, Single
Cylinder, OHV,
Horizontal Shaft Gasoline
Engine
Bore x Stroke
3.03 in. x 2.30 in.
(77 mm x 58 mm)
Displacement 242 cc (14.8 cu-in)
Max Output 7.1 H.P./3,600 R.P.M.
Fuel Tank Capacity
Approx. 1.4 U.S. Gallons
(5.3 Liters)
Fuel Unleaded Automobile Gasoline
Lube Oil Capacity 1.16 quarts (1.1 liters)
Speed Control Method Centrifugal Fly-weight Type
Starting Method Recoil Start
Dimension
(L x W x H) 14.0 x 16.9 x 16.1 in.
(355 x 430 x 410 mm)
Dry Net Weight 55.1 lbs (25 Kg.)

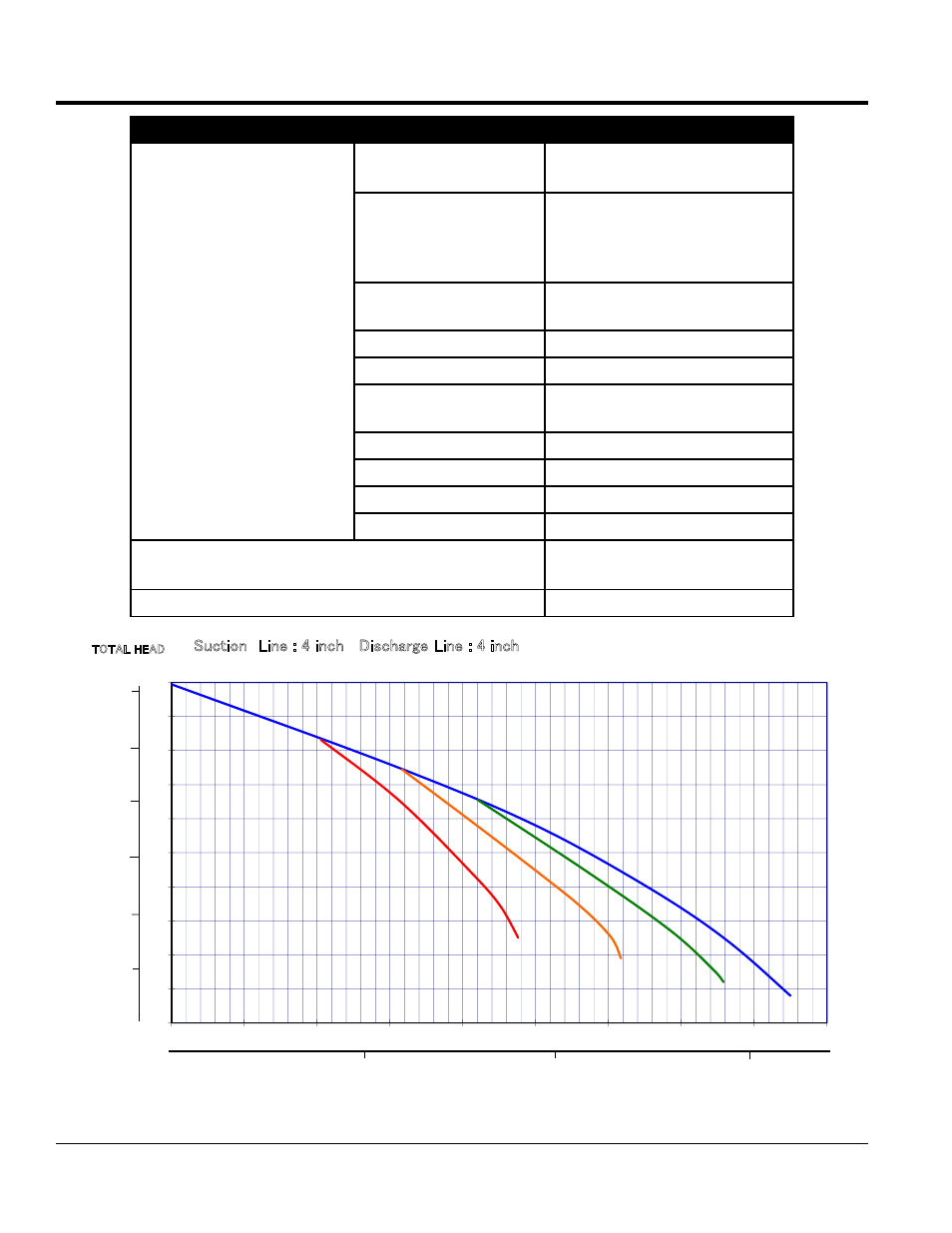

Figure 2. QP402H Performance Curve
U.SGALLONS
PER MINUTE
LITERS
PER MINUTE
TOTAL HEAD
FT. METERS
5
10
15
20
25
30
0
10
20
30
40
50
60
70
80
90
100
0 50 100 150 200 250 300 350 400 450
Performance Curveｓ Self-Priming Centrifugal Pump
Pump Model ：
QP-402H
Engine : HONDA ＧＸ240 Power : 8.0 HP
Suction Line : 4 inch Discharge Line : 4 inch
500 1000 1500
U.SGALLONS
PER MINUTE
LITERS
PER MINUTE
TOTAL HEAD
FT. METERS
5
10
15
20
25
30
0
3.3 FT
23.3 FT
16.7 FT
10 FT
