PAGE 12 — QP303H CENTRIFUGAL PUMP • OPERATION AND PARTS MANUAL — REV. #2 (01/29/14)
SPECIFICATIONS (ENGINE)
Table 2. Specifications (Engines)
Engine
Model HONDA GX160UT2TX2
Type
Air-cooled 4 stroke, Single
Cylinder, OHV,
Horizontal Shaft Gasoline
Engine
Bore x Stroke
2.70 in. x 1.80 in.
(68 mm x 45 mm)
Displacement 163 cc (9.9 cu-in)
Max Output 5.5 H.P./3,600 R.P.M.
Fuel Tank Capacity
Approx. 0.82 U.S. Gallons
(3.1 Liters)
Fuel Unleaded Automobile Gasoline
Lube Oil Capacity 0.61 quarts (0.58 liters)
Speed Control Method Centrifugal Fly-weight Type
Starting Method Recoil Start
Dimension
(L x W x H) 12.0 x 14.4 x 13.2 in.
(304 x 362 x 335 mm)
Dry Net Weight 33.1 lbs (15 Kg.)

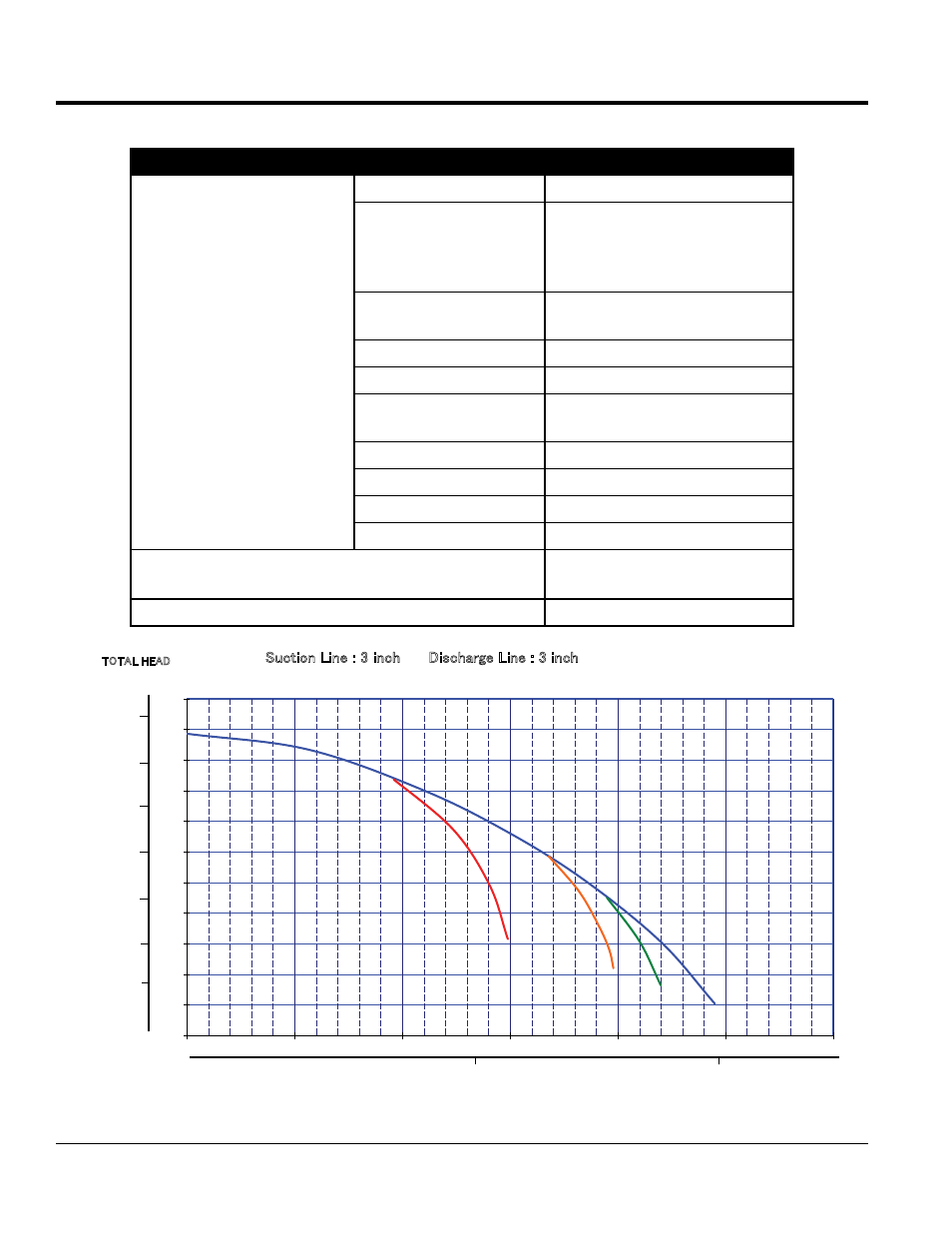

Figure 2. QP303H Performance Curve
0
10
20
30
40
50
60
70
80
90
100
110
0 50 100 150 200 250 300
Suction Line : 3 inch Discharge Line : 3 inch
U.SGALLONS
PER MINUTE
LITERS
PER MINUTE
TOTAL HEAD
FT. METERS
500 1000
5
10
15
20
25
30
0
35
3.3 FT
23.3 FT
16.7 FT
10 FT
