MVH-150GH/D — PARTS & OPERATION MANUAL — REV. #2 (12/04/06) — PAGE 15
CAUTION:
D
DO NOT attempt to run the compactor until the
Safety and Initial Start-up sections have been
read,

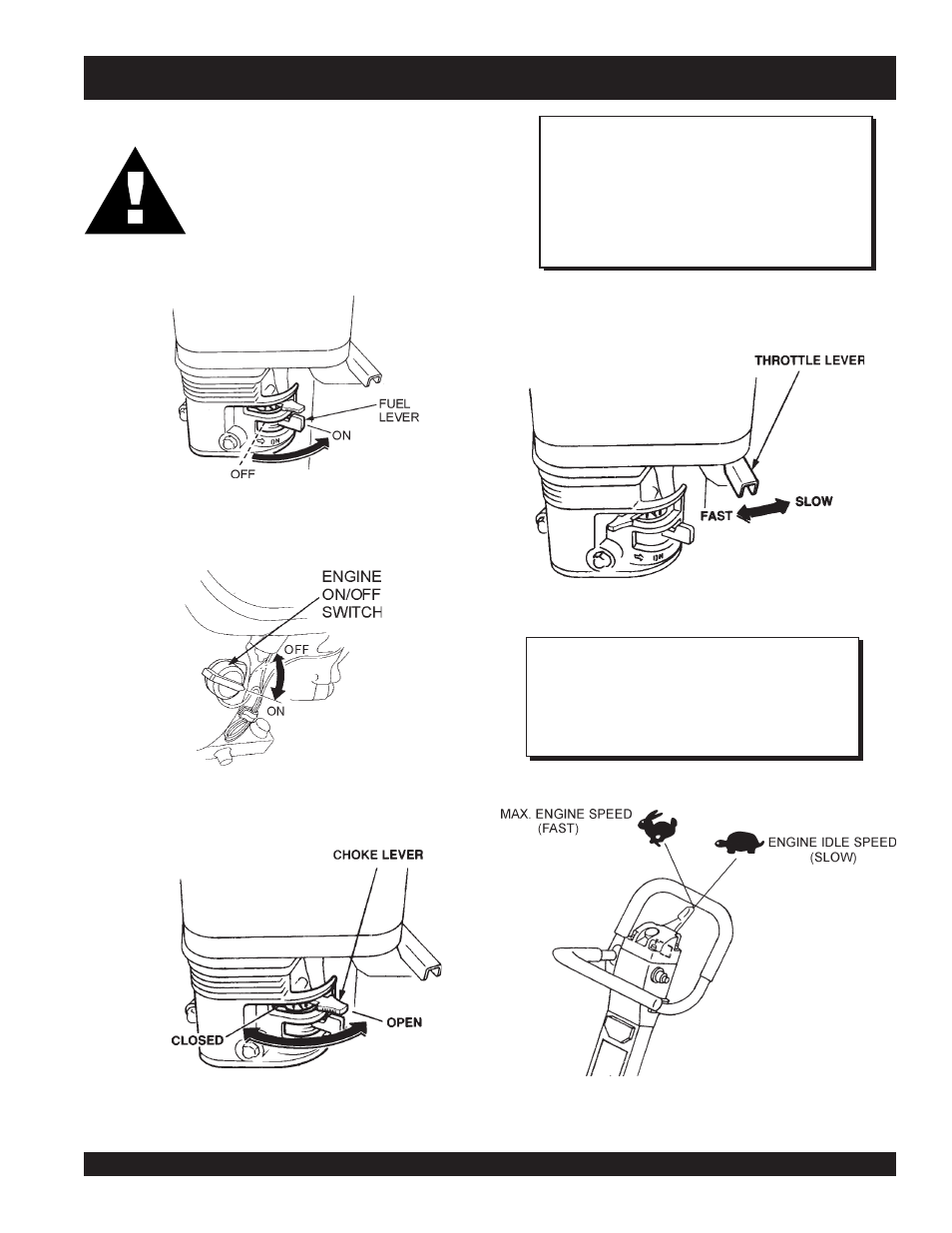

1. Place the fuel valve lever (Figure 10) in the "ON" position.
Figure 10. Fuel Valve Lever
2. Place the Engine ON/OFF switch (Figure 11) in the "ON"
position.
Figure 11. Engine ON/Off Switch
3. Place the Choke Lever (Figure 12) in the "OPEN" position.
Nnnn
NOTE
The CLOSED position of the choke lever enriches
the fuel mixture for starting a COLD engine. The
OPEN position provides the correct fuel mixture
for normal operation after starting, and for
restarting a warm engine.
Figure 12. Choke Lever
4. Place the throttle lever (Figure 13) halfway between fast
and slow .
Figure 13. Throttle Lever
MVH-150GH/D — INITIAL START-UP
Figure 13A. Throttle Lever
NOTE
Some compactor units may be equipped with a
throttle lever (Figure 13A) that is located in the
vicinity of the hydraulic pump. This throttle lever
is connected to the engine throttle linkage.
