MVH-402GHB — MAINTENANCE
Replacing Hydraulic Oil
1. Remove the drain plug (Figure 28) at the bottom of the oil
tank with a 6 mm hex wrench and drain the hydraulic oil.
2. Clean the filter with light oil.
3. Reinstall the drain plug to the oil tank. Apply seal tape or
Roctite #575 to thread portion.
4. Fill tank with hydraulic oil. (Capacity: About 2,500 cc). Use
Shell Tellus Oil #46 or equivalent.
5. After filling tank, temporarily install cover. Loosen bleeder
plug located at the top of the cylinders on side of vibrator
(Figure 27). Air remaining in the circuit will be forced out of
the bleeder plug.
6. Tighten the breather plug. Check oil level in the tank again.
7. Install the cover of oil tank. Coat packing with liquid packing
such as Threebond #1215. Use Loctite #242 for mounting
screw.

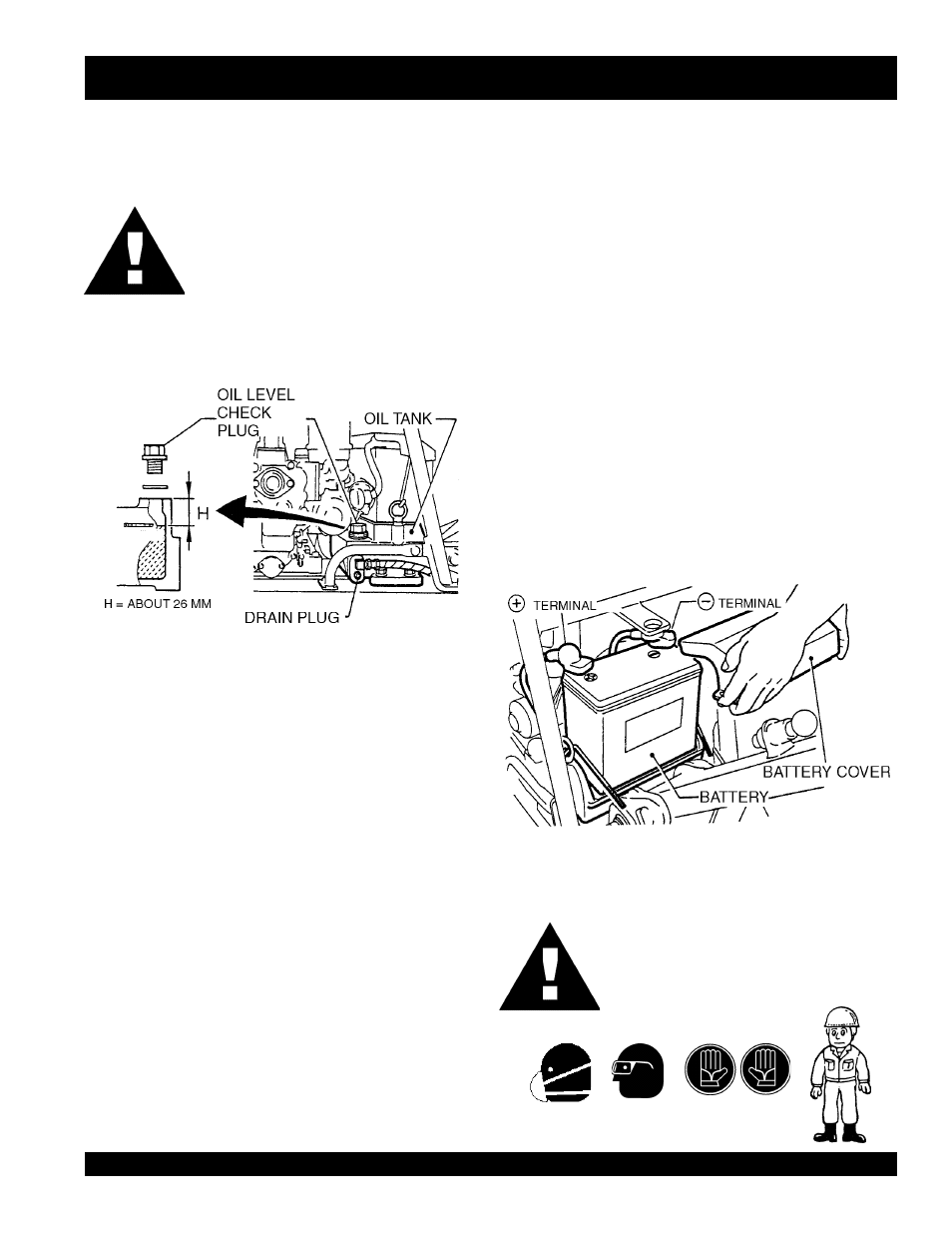

Figure 28. Hydraulic Oil Maintenance
Battery Maitenance
1. Check the battery terminals periodically to ensure
that they are in good condition.
2. Use wire brush or sand paper to clean the battery
terminals.
3. Check battery for cracks or any other damage. If white
pattern appears inside the battery or paste has
accumulated at the bottom, replace the battery.
4.. If the machine will not be in operation for a long
period of time, store in cool dry place and check the
battery charge level every month to maintain the
performance of the battery.
Battery Cable Connection
1. Take off the battery cover by removing the M6 nuts (Figure
29).
2. When removing cable, disconnect the ground side (normally
negative) first (Figure 29).
3. When installing cable connect the ground side (normally
negative) last.
Figure 29. Battery Maintenance
2. Replace hydraulic oil after first 200 hours and in every 1,000
hours of operation.
Make sure hydraulic oil i is at a normal safe
operating level. DO NOT over fill. Over filling
(excessive oil) will cause excess oil to blow
out of breather plug.
Wear safety glasses or face mask,
protective clothes , and rubber gloves
when working with battery.
CAUTION :
CAUTION :
