MVC-88VGH/VGHW PLATE COMPACTOR — OPERATION AND PARTS MANUAL — REV. #2 (08/06/10) — PAGE 13
MVC-88VGH/VGHW PLATE COMPACTOR — COMPONENTS (COMPACTOR)

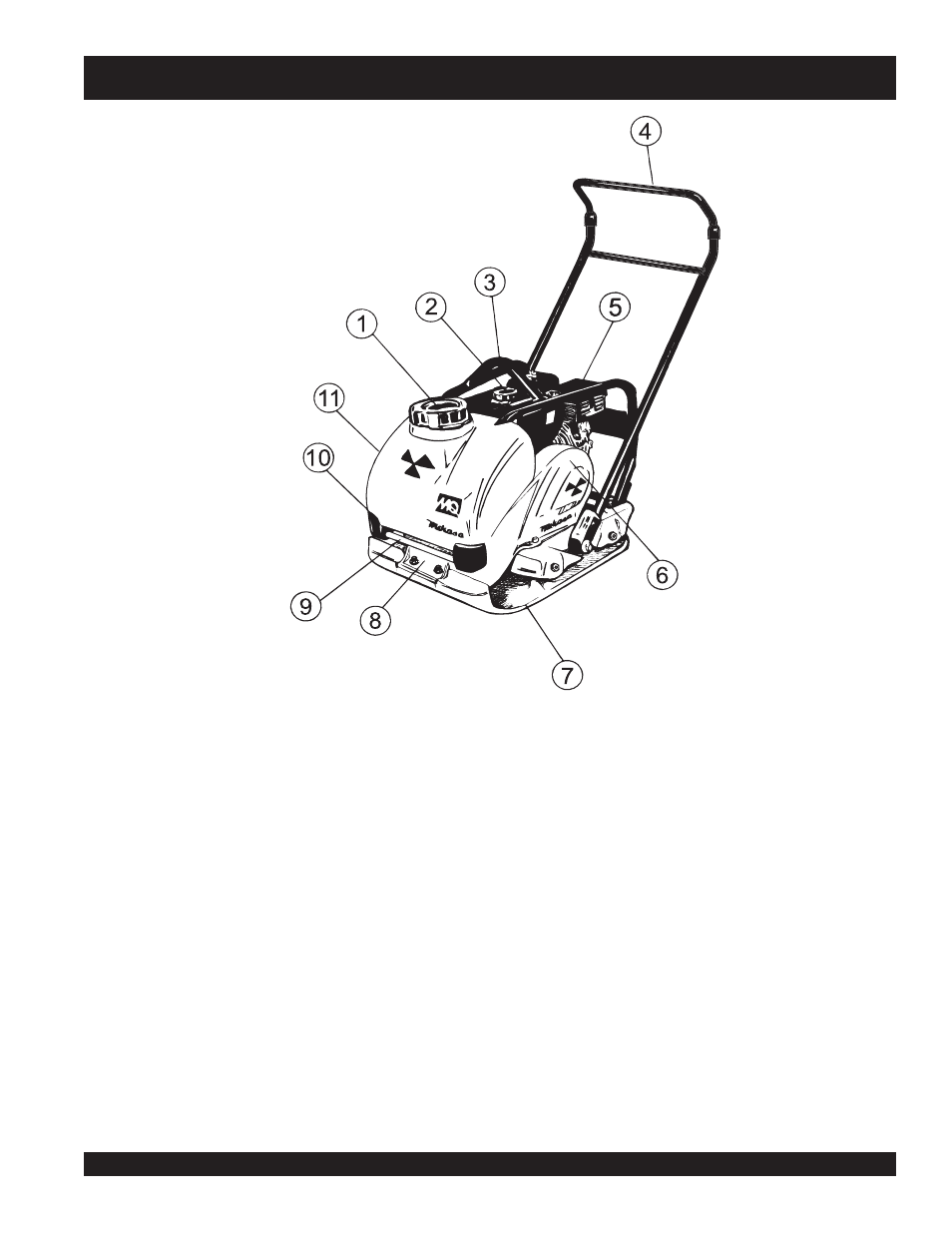

Figure 1. Plate Compactor Controls
Figure 1 shows the location of the basic controls and components
of the MVC-88VGH/VGHW Plate Compactor. The function of
each control is described below:
1. Water Tank Cap (VGHW Only) – Remove this cap to add
water to the water tank.
2. Fuel Tank Cap – Remove this cap to add fuel.
3. Lifting Bale – When lifting of the compactor is required
either by forklift, crane etc., tie rope or chain around this
lifting point.
4. Handle Bar – When operating the compactor use this
handle bar to manuever the compactor.
5. Gasoline Engine – This plate compactor uses a HONDA
GX160U1QMX2 engine. Refer to the HONDA owner's
manual for engine information and related topics.
6. Belt Cover – Remove this cover to gain acess to the V-belts.
NEVER run the compactor without the V-belt cover. If the V-
belt cover is not installed, the possibility exists that your
hand may get caught between the V-belt and clutch, causing
serious injury and bodily harm.
7. Vibrating Plate – A flat, open plate made of durable cast
iron construction used in the compacting of soil.
8. Vibration Case – Encloses the eccentric, gears and
counter weights.
9. Water Tube (Sprinkler) – Supplies water to the soil via a
splash plate.
10. Water Shut-Off Valve – Turn this valve downward to let
water flow from the water tank to the water tube.
11. Water Tank (VGHW only) – Holds 13.7 quarts of water
(removable, no tools required).
