P33/24 HHM-HHMR — PARTS MANUAL — REV. #0 (03/10/06) — PAGE 86
Position 8: Cockpit
Position 9: Starter Switch
Position 10: Generator Control
Position 11: Oil Control
Position 12: Inclinometer Indicator
Position 13: Hour counter
Position 16: Shut-off Solenoid
Position 17: Oil Pressure Switch
Position 18: Starter
Position 19: Battery
Position 20: Regulator
Position 21: Alternator
Position 22: Ground Cockpit/Valve Control Device
Position 23: Central Ground
Position 24: Central Fuse
Position 25: Engine Control
Position 27: Engine
Position 28: Battery Section Switch
P33/24 HHM —ELECTRICAL COMPONENT LOCATOR

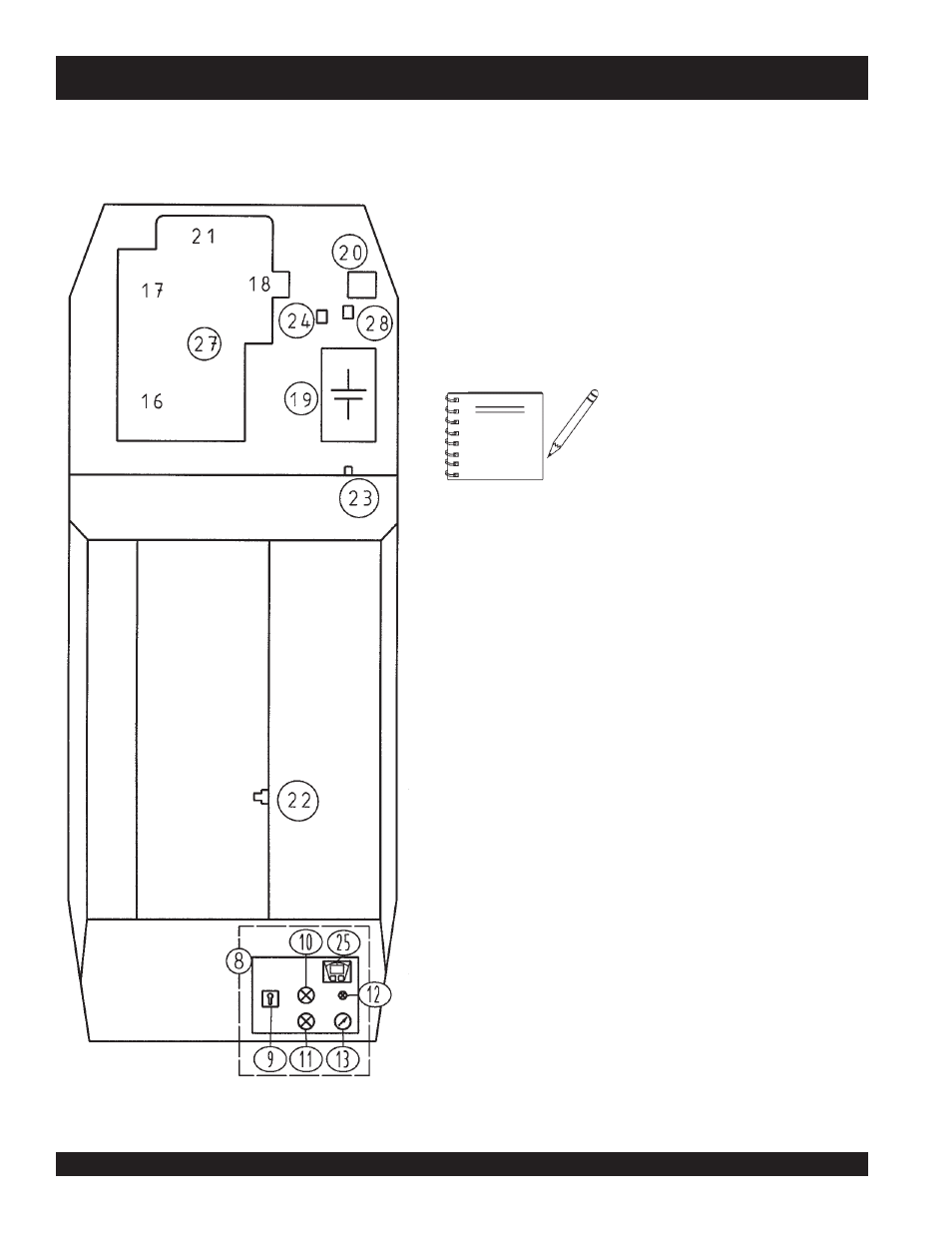

ELECTRICAL COMPONENT LOCATOR (P33/24 HHM)
See next page for corresponding
wiring schematic. NOTE
