MQ-MIKASA MRH-800DS VIBRATION ROLLER — PARTS & OPERATION MANUAL — REV. #3 (02/02/05) — PAGE 31

MRH-800DS—MAINTENANCE

FORWARD AND REVERSE TRAVEL ADJUSTMENT

1.

If neutral position for forward and reverse travel has been
displaced, conduct the neutral adjustment.

2.

If roller travels forward with the ball of ball plunger remaining
in V slot of the guide, loosen M8 bolt and slide the slide
plate slightly toward the engine. If the roller travels
backward, slide the plate towards side plate (Figure 28).

3.

With M8 bolt tightened, start engine and check the neutral
for forward and reverse. If still displaced, repeat the
procedure.

4.

If neutral position of forward/reverse lever has been
displaced, use the turn buckle located on the oil pump side
of forward/reverse cable.

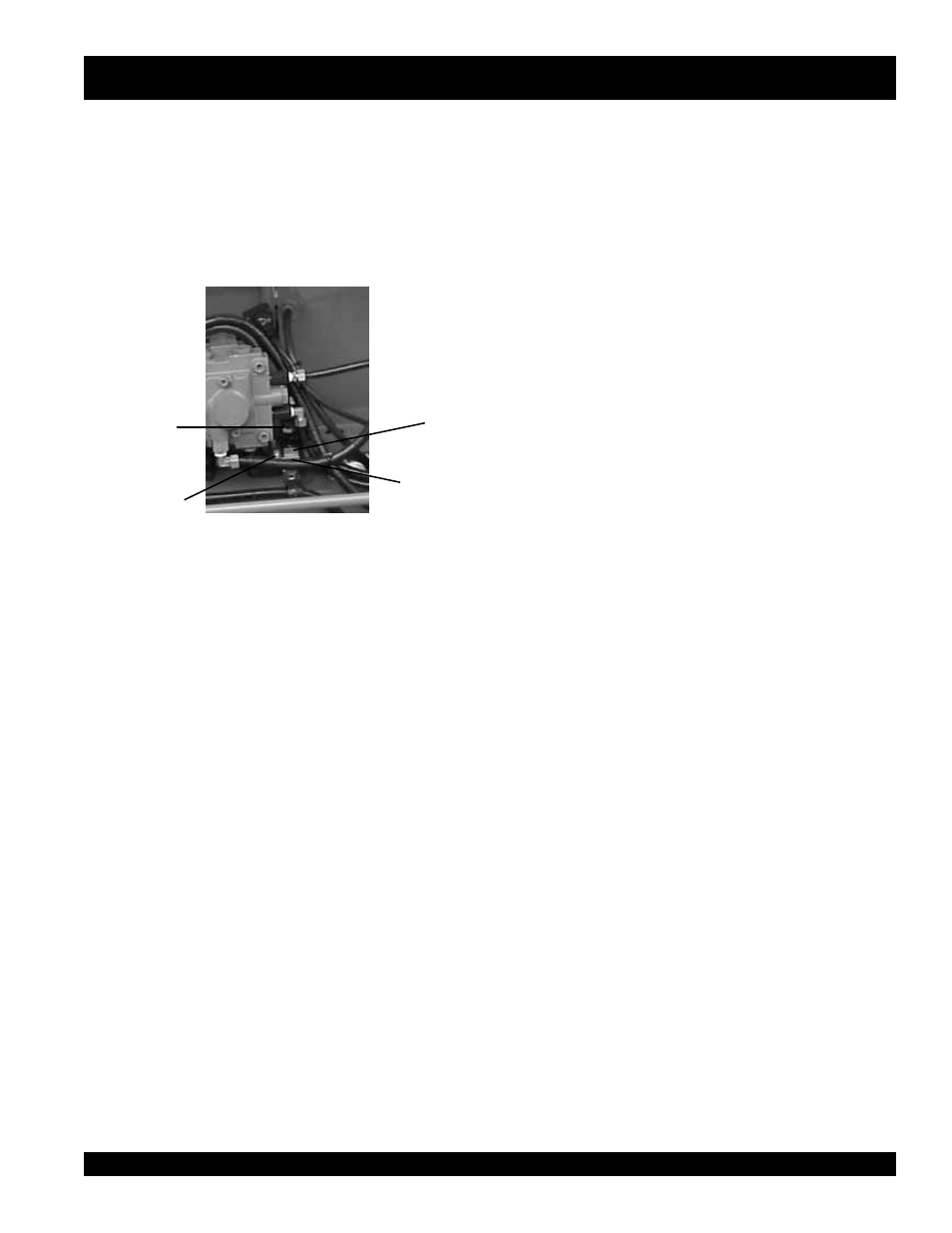

Figure 28. Adjustment of Neutral Position

Guide

Slide Plate

Plunger

M8 Bolt
