WIRING DIAGRAM

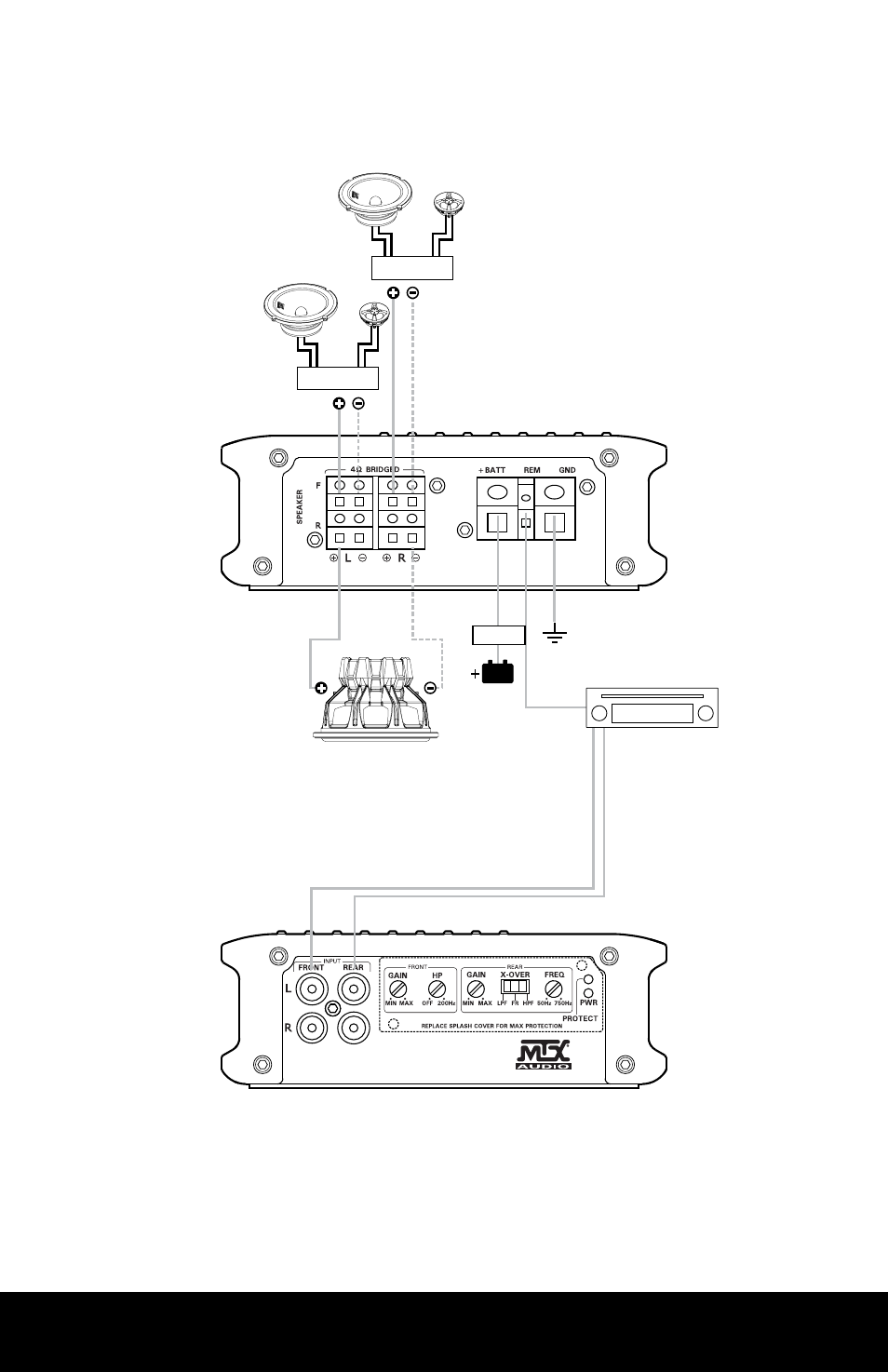

WET75.4 Amplifier Wiring (3-Channel Mode)
FUSE
Source Unit
Remote Signal
RCA Signal
RCA Signal
12V
Crossover
Crossover
4-Ohm to 8-Ohm
