Introduction

Thank you for purchasing an MTX Audio Hi-Performance amplifier. Proper installation matched with MTX

speakers and subwoofers provide superior sound and performance for endless hours of enjoyment whether

you are waking the neighbors or just out enjoying your tunes. Congratulations and enjoy the ultimate audio

experience with MTX!

Specifications :

• 2-Channel Class-AB Amplifier

• CEA2006 certified Power Output :

- 90 watts RMS x 2-channel at 2 ohm and THD+N ≤1%

- 60 watts RMS x 2-channel at 4 ohm and THD+N ≤1%

- 180 watts RMS x 1-channel at 4 ohm and THD+N ≤1%

• Crossover :

- High pass 12dB/oct variable from 40Hz to 400Hz

- Low pass 12dB/oct variable from 40Hz to 400Hz

• Signal-to-Noise Ratio (1 watt) : > 80dB

• THD+Noise (Distortion) (1 watt) : ≤ 1%

• Frequency Response (±1dB) : 20Hz-30000Hz

• Maximum Input Signal : 6V

• Maximum Sensitivity : 100mV

• Dimensions : 11.5 in x 7 in x 2.2 in

• High level inputs

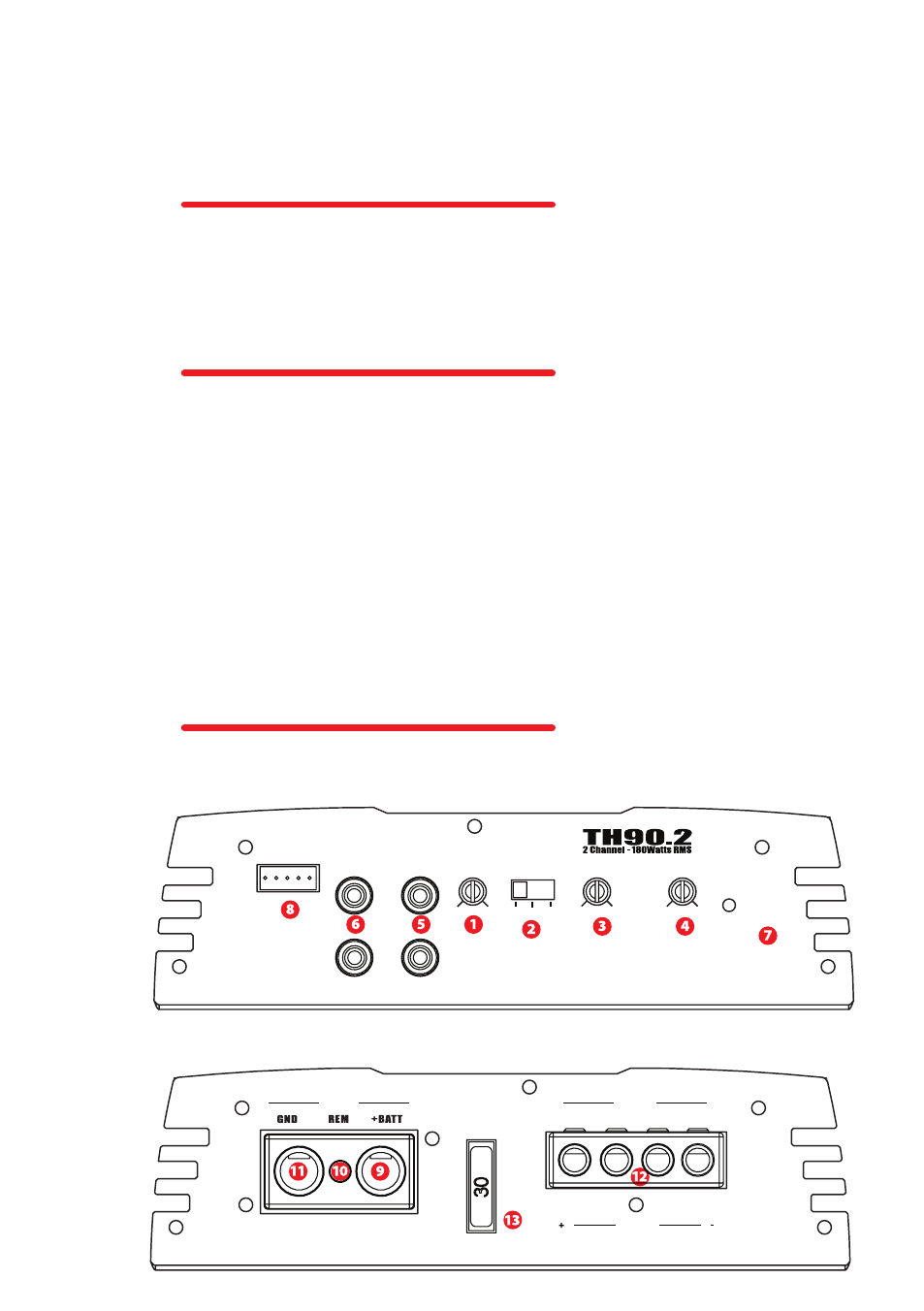

Control Panel

English

GAIN

6V

0.1V

X-OVER

HP FULL LP

HPF

40Hz 400Hz

LPF

40Hz 400Hz

+ - G - +

HLI

POWER

SPEAKER

R+

R-

L+

L-

BRIDGE

FUSE

OUTPUT

R

L

INPUT

POWER/

PROTECT
