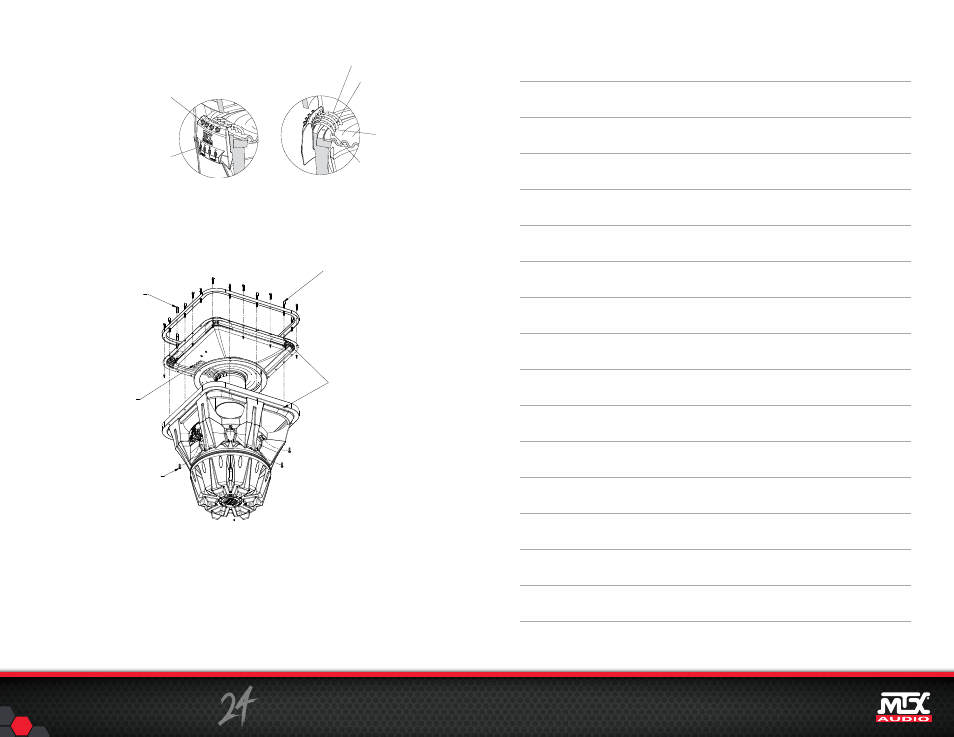

NOTES:
ALIGN TINSEL LEADS
WITH TERMINAL
(6 EACH) 1/4-20 X 1" SOCKET BUTTON HEAD SCREW
STEEL WITH BRIGHT CHROME PLATE
HEX SOCKET SIZE 5/32"
REMOVED THESE FOR RE-CONING
(12 EACH) 1/4-20 X 1-1/4" SOCKET CAP SCREW
STEEL WITH BRIGHT CHROME PLATE
HEX SOCKET SIZE 3/16"
REMOVED THESE TO TAKE THE GASKET
OFF FOR RE-CONING
(12 EACH) 1/4-14 X 3" TORX SOCKET HEAD
STEEL WITH BRIGHT CHROME PLATE
T-30 TORX DRIVE
USE THESE TO MOUNT THE WOOFER
(IF WOOFER DOESN'T NEED TO BE REMOVED FOR
RE-CONING THEN THESE CAN STAY IN PLACE)
ALIGN LARGER NOTCHED HOLES
WITH THREAD THROUGH HOLES
IN BASKET
RED INSULATION
VC2 +
BLACK INSULATION
VC2 -
BLACK INSULATION
VC1 -
USE 3MM HEX KEY TO LOOSEN
SET SCREWS TO INSTALL TINSEL LEADS
USE 4MM HEX KEY TO LOOSEN
SET SCREWS TO INSTALL WIRE
RED INSULATION
VC1 +
