MTD 642E User Manual
Page 25
25
Models 642E, 642F, 662E, 614E, 644E, 664F, & 6A4E

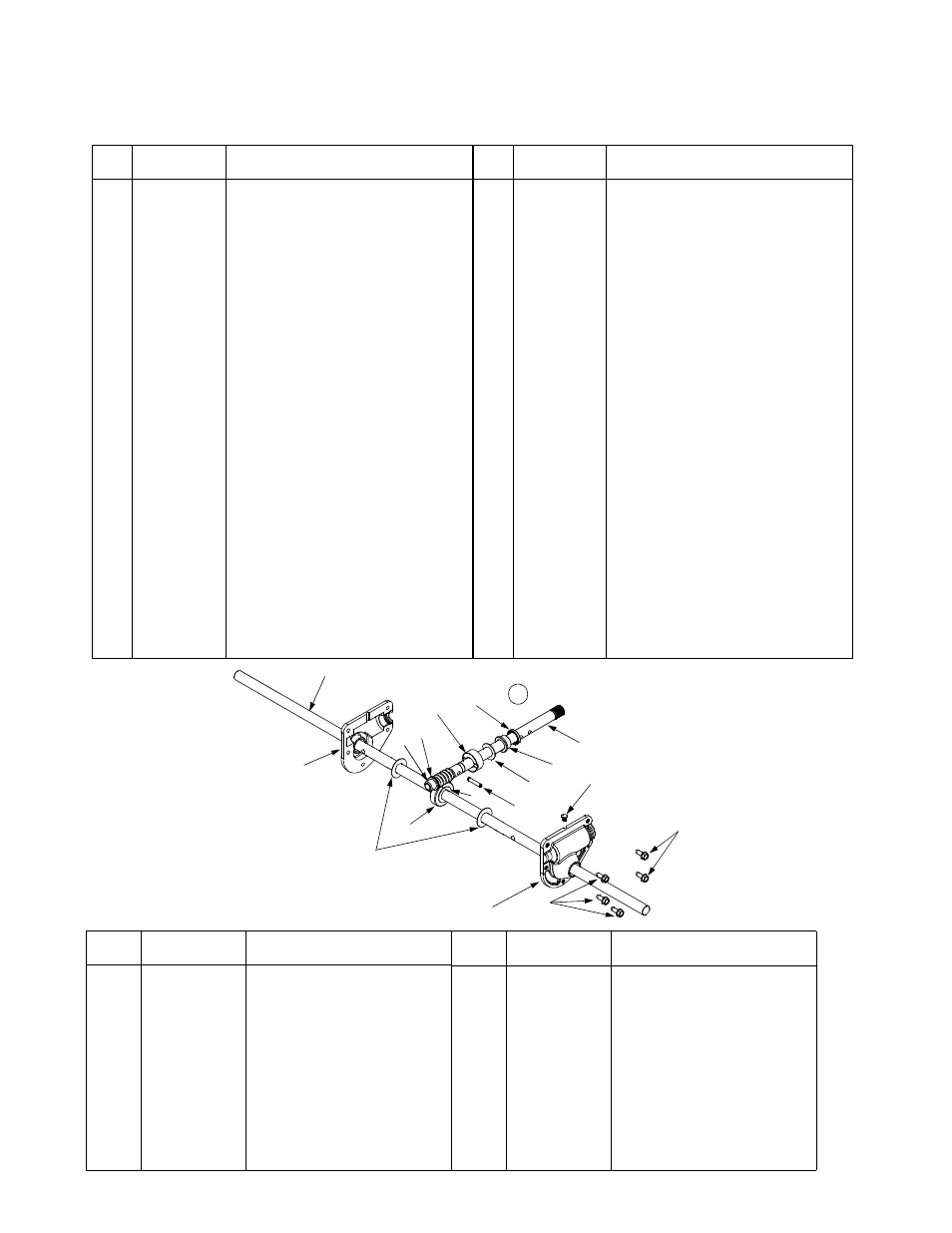

REF.
NO.
PART
NO.
DESCRIPTION
1.
712-0116
Jam Lock Nut 3/8-24
2.
732-0193
Compression Spring
3.
736-0105
Bell Washer
4.
784-5619A
Shift Handle
5.
710-0459A
Hex Cap Screw 3/8-24
6.
710-0788
Tap Screw 1/4-20
7.
714-0104
Cotter Pin
8.
720-0232
Shift Knob
9.
711-0677
Ferrule
10.
726-0100
Push Cap
11.
747-0921
Shift Rod
12.
720-0201A
Chute Knob
13.
705-5204A
Chute Directional Control
14.
747-0697
Eyebolt
-
735-0234
Grommet only
15.
684-0008A
Shift Arm Assy
16.
720-0274
Grip
17.
705-5233A
Clutch Lever Assy LH
705-5234A
Clutch Lever Assy RH
18.
750-1032
Spacer
19.
735-0199A
Rubber Bumper
20.
746-0778
Cable
21.
705-5275
Lever Bracket LH
22.
712-0429
Lock Hex Nut 5/16-18
23.
736-0119
Lock Washer 5/16
24.
712-3010
Hex Nut 5/16-18
25.
705-5274
Lever Bracket RH
26.
749-0910C
Handle RH
27.
710-3103
Hex Cap Screw 5/16-18 x 2.0
28.
710-0262
Carriage Bolt 5/16-18 x 1.50
29.
684-0105
Control Panel Assy - 2 Style
684-0145
Control Panel Assy- 2 Style w/light
684-0106
Control Panel Assy - 4 Style
30.
749-0911C
Handle LH
34.
784-5599
Handle Tab
35.
710-3259
Hex Cap Screw 5/16-18 x 2.0
36.
710-1880
Hex Cap Screw 5/16-18 x .75
37.
736-0185
Flat Washer
38.
731-0921
Upper Chute
39.
736-0159
5/16 Washer
40.
710-0451
Carriage Bolt 5/16-18 x .75
41.
710-0276
Carriage Screw 5/16-18 x 1.0
42.
720-0284
Knob
43.
731-1300B
Lower Chute
44.
712-3027
Hex Lock Nut 1/4-20
45.
731-0851A
Flange Keeper
46.
710-3015
Hex Cap Screw 1/4-20 x .75
47.
629-0058
Round Light Harness
48.
710-1652
Hex Tap Screw 1/4-20 x .625
49.
710-1003
Hex Screw
50.
712-0415
Hex Nut
51.
725-1300
Headlight 18 Watts
52.
731-1317
Headlight Cover
53.
736-0242
Bell Washer
54.
712-3068
Hex P\atch Nut 5/16-18
55.
736-0275
Flat Washer .344 ID x .688 OD
REF.
NO.
PART
NO.
DESCRIPTION
REF.
NO.
PART
NO.
DESCRIPTION
1.
618-0123
Housing—R.H.
618-0124
Housing—L.H.
2.
710-0642
Hex Screw 1/4-20 x .75
3.
711-0908A
Spiral Axle 24"
711-0909A
Spiral Axle 26"
711-0910A
Spiral Axle 28"
711-1024A
Spiral Axle 30”
4.
714-0161
Key
5.
715-0143
Pin-Spiral
6.
717-0526
Shaft-Worm
7.
717-0528
Gear-Worm
8.
718-0186
Collar-Thrust
9.
721-0325
Plug
10.
721-0327
Seal-Oil
11.
736-0351
Washer-Flat
12.
736-0369
Washer-Flat
13.
736-0445
Washer-Flat
14.
737-0168
Grease
15.
741-0662
Bearing-Flange
16.
741-0663
Bearing-Flange
17.
618-0120A
Ass’y. Complete 24"
618-0121A
Ass’y. Complete 26"
618-0122A
Ass’y. Complete 28"
618-0160A
Ass’y Complete 30”
REF.
NO.
PART
NO.
DESCRIPTION
2
12
4
6
7
10
9
14
11
8
16
1
3
15
5
13
3
17
