MMF POS Lockable Tablet Stand for 9-10 Tablets User Manual
Page 2
LckTabSetupSheet 532013300 8/14/14 ISO 9001-2008
1408119
Kensington is a registered trademark of its respective owner. MMF POS, MMF Industries
and Block and Company, Inc. are not associated with Kensington.
Assembly Instructions
STEP 1
(Skip to
STEP 2 if using as a stand-alone solution)
Firmly secure the base stand to a flat surface with appropriate fasteners.
a. Three (3) #8 screws and three (3) #8 nuts are provided for
mounting stand on top surface of a cash drawer.
b. Remove the cash till and inner drawer from cash drawer housing.
c. Place stand on top of drawer and mark hole positions with pencil.
d. Drill holes on top of cash drawer.
e. Firmly secure the base by bolting three (3) screws through the
base plate and securing with nuts from under the top surface of
the cash drawer.
NOTE: Hardware is only provided for top of cash drawer integration.
Hardware is NOT included for any other mounting surfaces - screws
need to suit specific desktop or platform thickness.
STEP 2
Unlock the tubular lock cover located on the back side of the frame with
the keys provided. Remove lock cover.
STEP 3
Nest the tablet against the plate. Adjust the adaptable grips by
tightening the wing nut on the back side – bottom right corner to firmly
hold the tablet.
STEP 4
Replace the lock cover and engage the lock to secure the tablet.

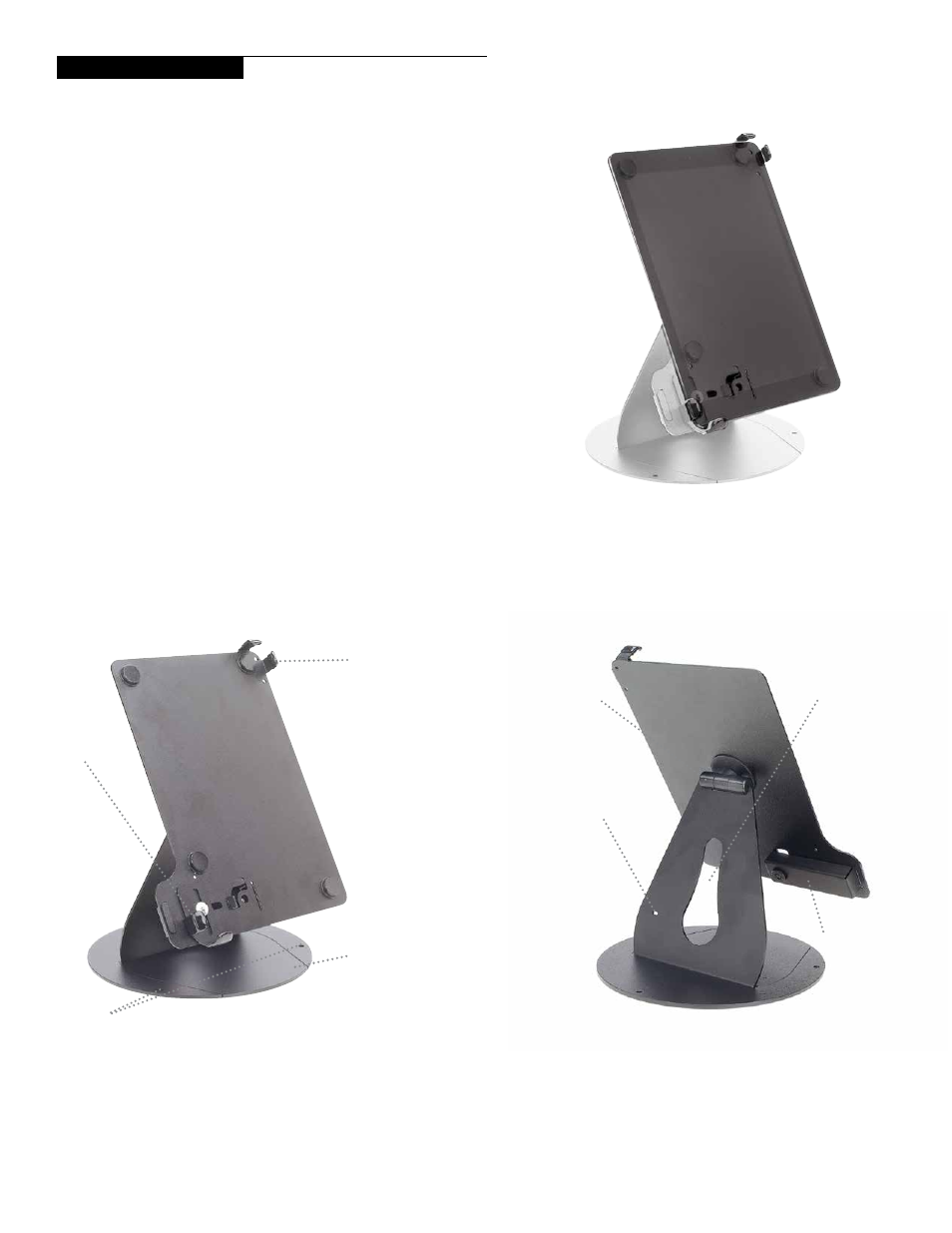

Lockable Table Stand
(Holding tablet)
NOTE: Tablet not included
Lockable Table Stand
(Back view)
Integrated
stand allows
360° rotation
for optimized
viewing angle
and orientation
Kensington
®
security slot
Cable
management
slot
STEP 2
High-security
tubular lock
with cover
Lockable Table Stand
(Front view)
Fixed grips
Adaptable
grip
Flat surface
mounting
holes (3)
Base stand
