MK BX-4 Stand Setup Instruction

Part No. 162771

1

2

3

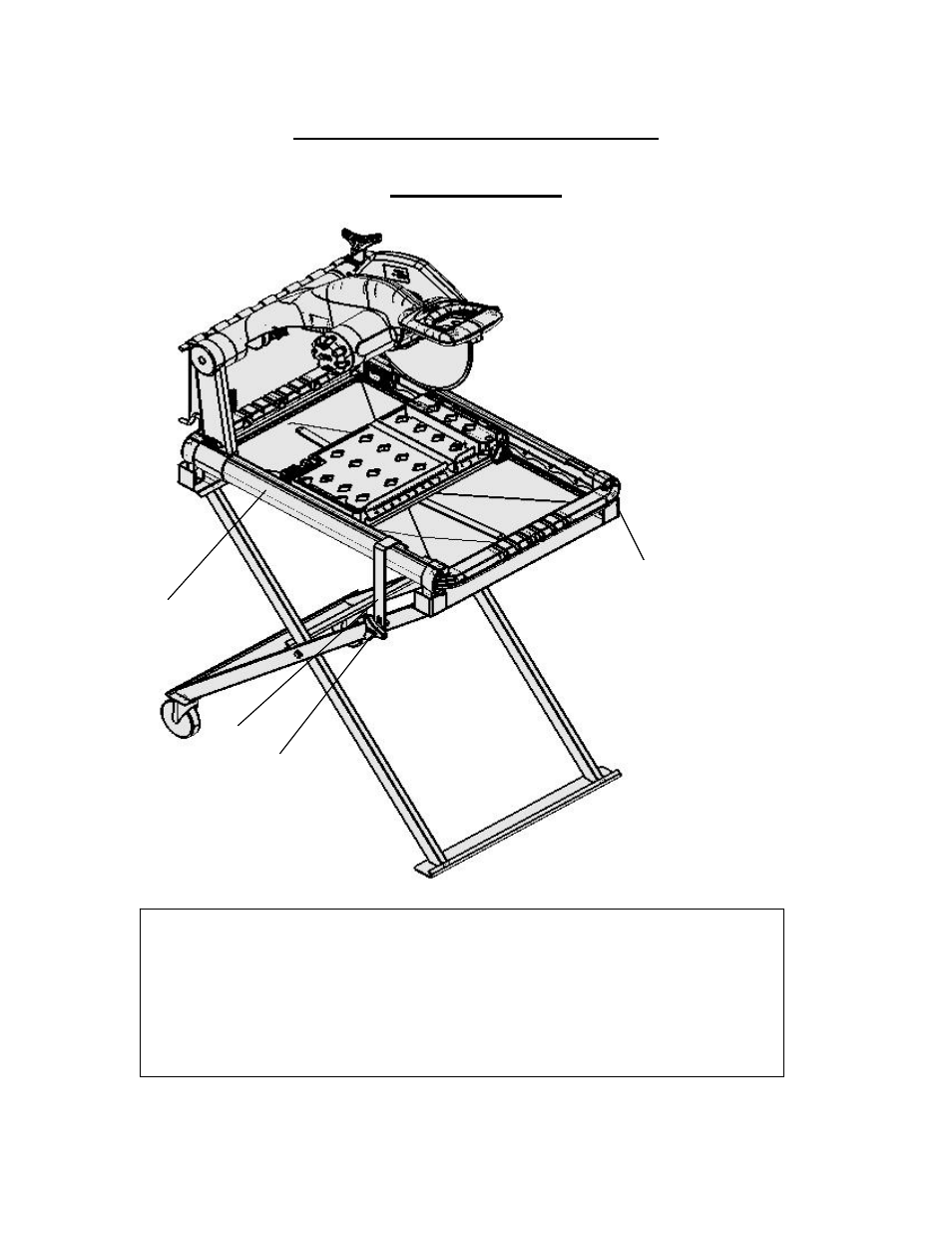

Instructions:
1. Open stand and set it on a flat & leveled surface.
2. Place saw’s footing within the 4 corner brackets on the stand as shown in figure.
3. Loose Knob (1) and move Hold Down Bracket (2) over the Left Rail (3).
4. Place the hook portion of the Bracket (2) over top the Left Rail and lay it on top
of the rail..
5. Tighten up the Knob (1) to secure saw in place..

Rel. 7/31/2007

Corner Bracket
