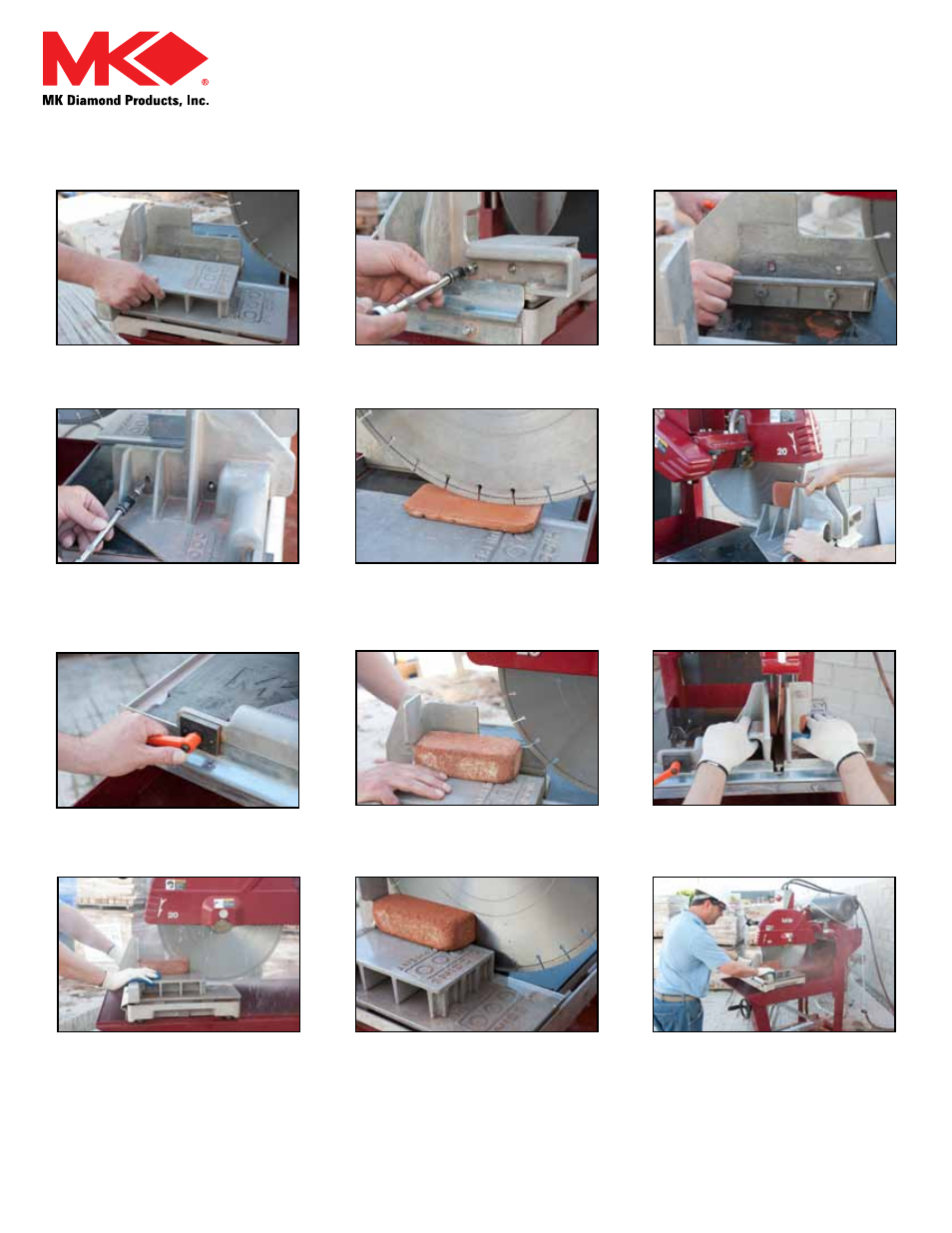

Place riser on table.
Attach riser plate to jig by tightening the
two screws.
Place hands in jig.
Cut other side.
Attach riser to jig by tightening the two bolts.
Adjust the height of the cutting head to the
desired depth and lock down.
Adjust jig to desired width.
Push table through the brick.
Place riser plate to inside of jig.
Place brick on riser and start saw.
Pull table back through brick and flip
brick.
Veener Cutting with Riser (Jig Part# 170158)
1315 Storm Parkway, Torrance, CA 90501 | P 800.421.5830 | www.mkdiamond.com | F 310.539.5158
© 2012 MK Diamond Products, Inc. All Rights Reserved. Images and specifications are subject to change without notice. Jig & Riser Instruction Sheet Part # 169548-IS (05/12)
Lock jig in place with orange lever.
