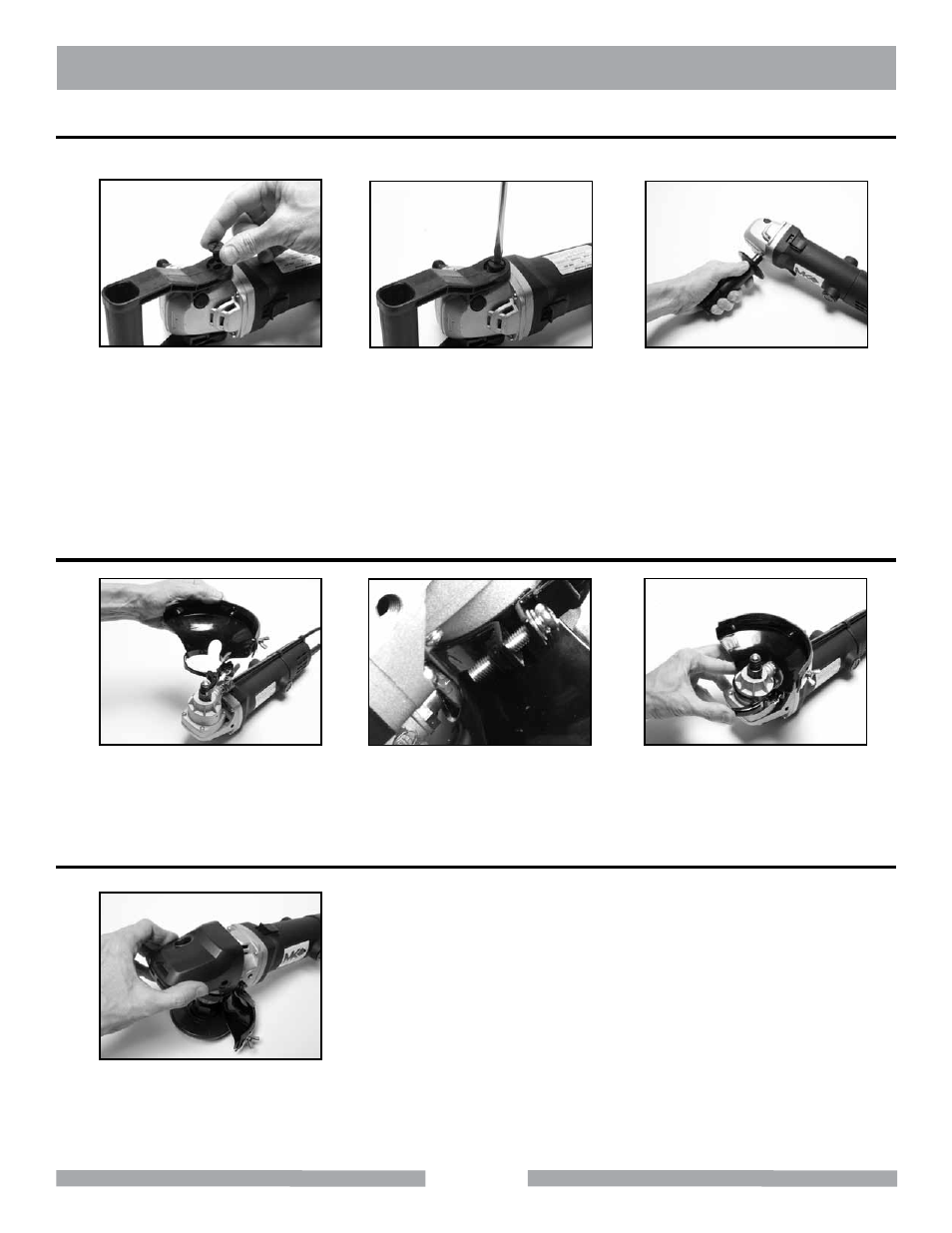

MK-1503SS ASSEMBLY
Handle
Shroud
Motor Cover
You have a choice of using a straight Handle or D-Handle.
The D-Handle and the motor cover cannot be used at the same time.
The Motor Cover is designed to allow the user to
apply pressure directly to the polisher's gear box
without feeling the heat created by the tool.
(A)
Place D-Handle on polisher and
insert bolt.
(A)
Place Shroud on polisher
with the lever clamp open.
(A)
Slide on Motor Cover and
secure with bolts.
(B)
Use the adjusting screw
to open the collar to the
correct size.
(C)
Secure Shroud by closing
lever clamp.
(B)
Tighten bolts on both sides.
(C)
Or install the straight handle by
rotating clockwise to tighten. It
may be installed on left or right
side.
