1.0 Introduction
Thank you for purchasing the VoomPC-2 mini-ITX vehicle enclosure!
The VoomPC-2 was designed to work with a wide variety of main boards such as the VIA
mini-ITX boards as well as low power Pentium-M OR Core 2 Duo. Please note that
powering full power P4 or AMD systems is not recommended due to excessive heat
dissipation.
2.0 Required tools
In order to install the VoomPC-2 in your vehicle you will need the following:
-Phillips screwdriver and Wire cutter / stripper
-Few feet of wire (AWG 12-16), preferably color coded, used for power input.

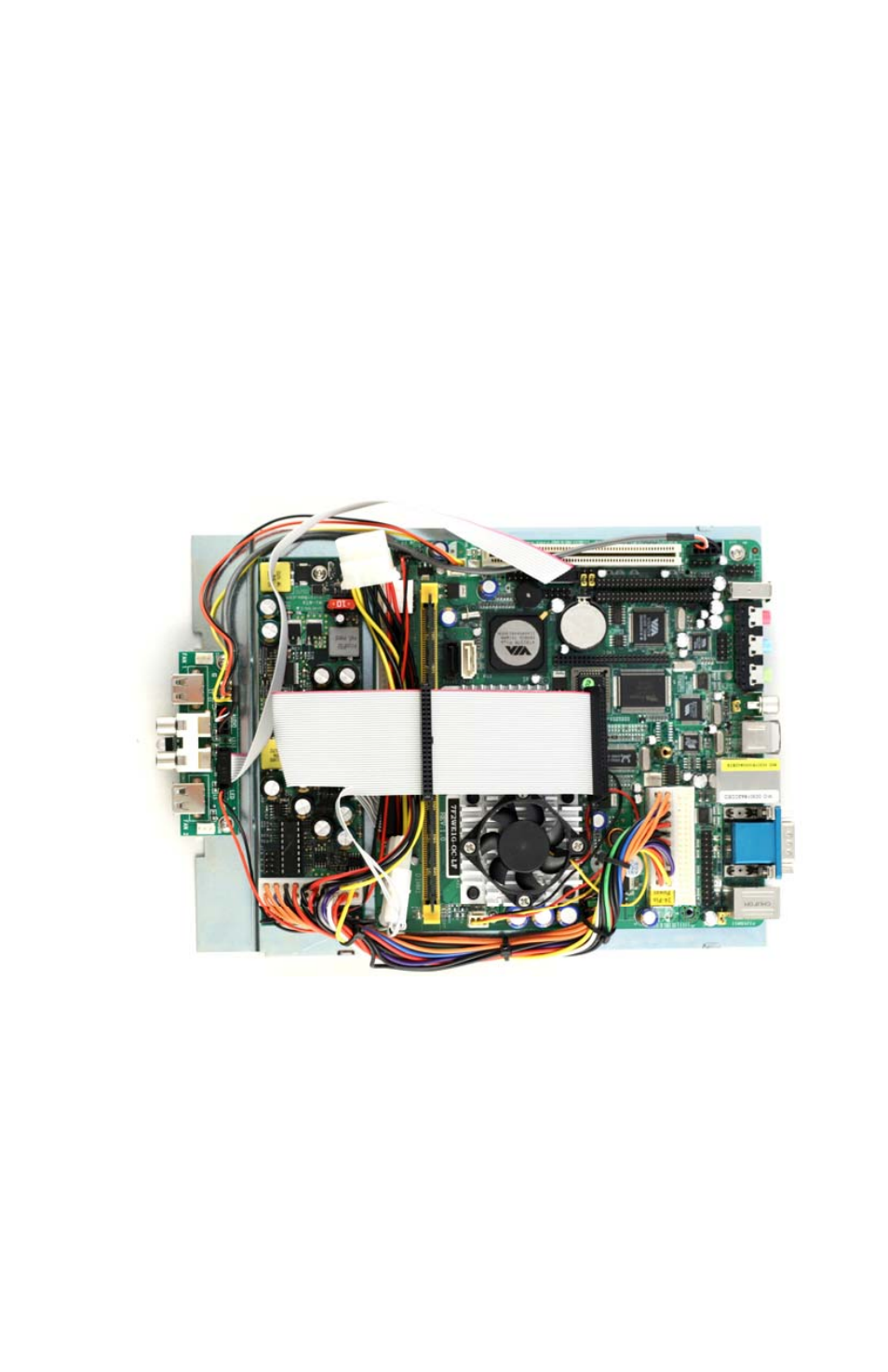

Figure 1.0, bottom mounting plate
3.0 VoomPC-2 installation steps
1) Install the motherboard, Front Audio / USB board and Power Supply on the base plate
using M3 screws. (See figure 1.0)
2) Connect the ATX cable harness provided with your power supply to the motherboard.
NOTE: Use small tie-wraps on the ATX cable harness in order to improve air flow.
