Additional accessories

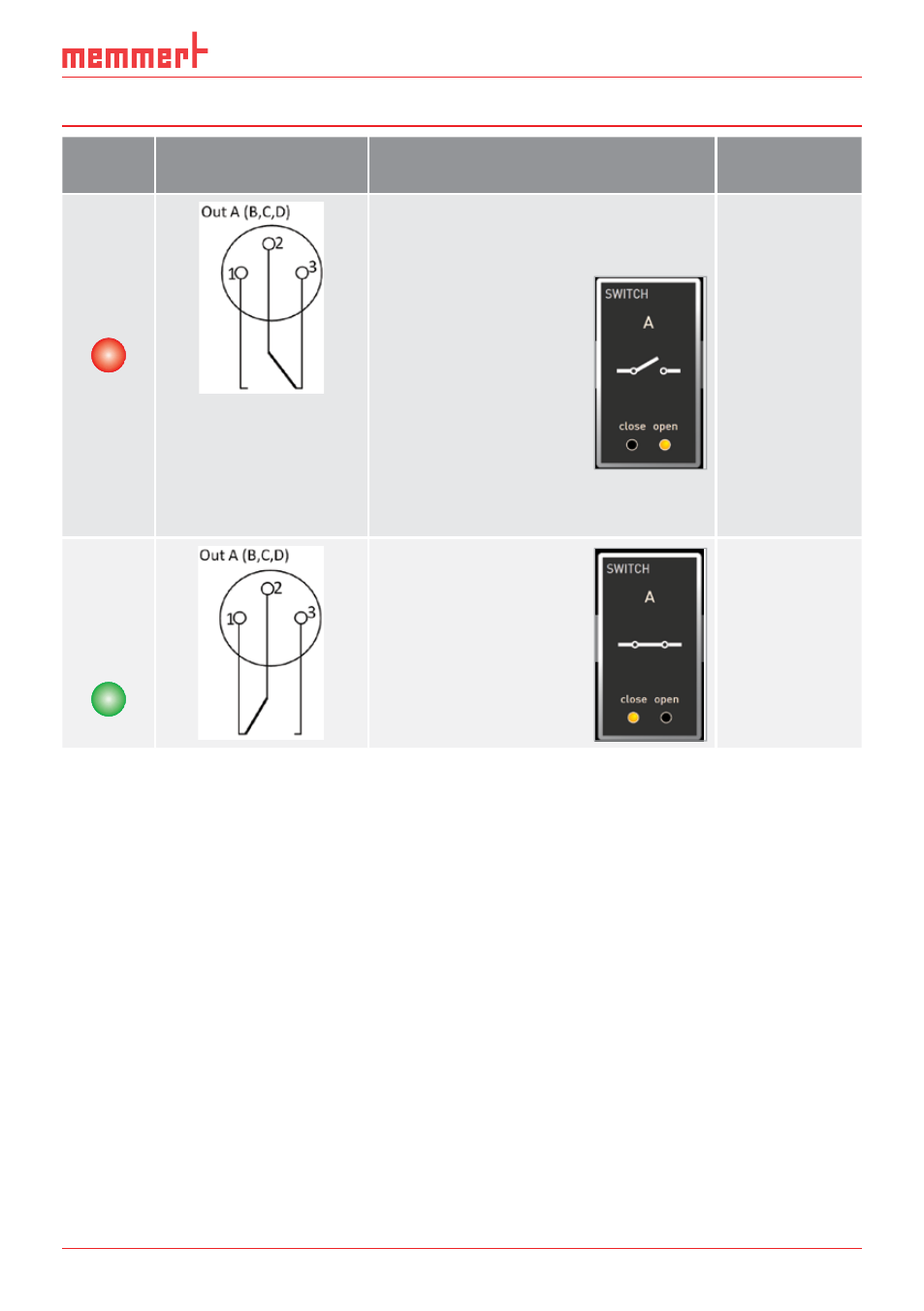

Freely programmable switching contact (A – D)
Relay/
LED
Plug assignment Functional description Miscellaneous
Relay
off
Test LED
red
Programming of the freely program-
mable switching contacts is done
using the AtmoCONTROL software.
Up to 4 (for single-
phase appliances
max. 2) floating
switching contacts
can be switched
programme
dependently.
For switch setting
"open"
►
Contact 1-2 open
►
Contact 2-3 closed
Switching
capacity
max. 2 A
max. 24 Volt
Relay
on
Test LED
green
For switch setting
"close"
►
Contact 1-2
closed
►
Contact 2-3
open
Switching
capacity:
max. 2 A
max. 24 V
