Inset C
Inset B

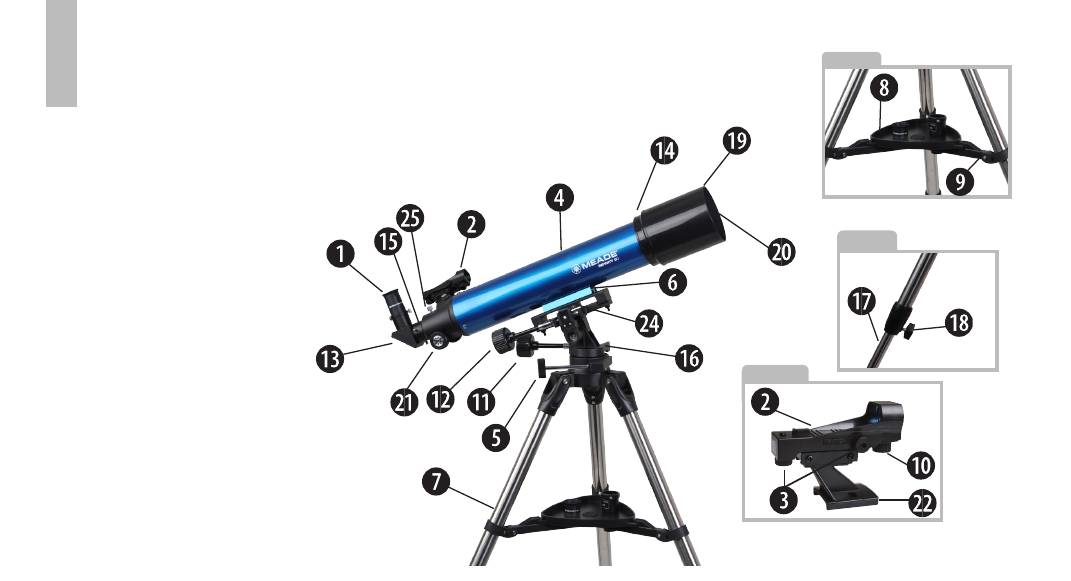

Figure 1: Meade Infinity Alt-azimuth Refracting Telescope
Inset A: Accessory Tray Assembly
Inset B: Tripod Leg
Inset C: Viewfinder Assembly
FIGURE 1
1. Eyepiece
2. Viewfinder (see Inset C)
3. Viewfinder alignment screws (2) (see Inset C)
4. Optical tube assembly
5. Horizontal lock knob
6. Dovetail mounting rail
7. Tripod legs
8. Accessory tray
9. Leg brace
10. Red dot viewfinder power switch
11. Azimuth slow motion control knob
12. Altitude slow motion control knob
13. 90 degree erect-image prism
14. Objective lens cell
15. Focuser drawtube and thumbscrews
16. Alt-azimuth mount
17. Adjustable sliding center leg extension
(see Inset B)
18. Tripod leg lock thumbscrew (see Inset B)
19. Dew shield/lens shade
20. Front lens cap (not shown)
21. Focusing knob
22. Viewfinder bracket (see Inset C)
23. Viewfinder bracket locking knob (see Fig. 5)
24. Optical tube attachment knob
25. Focuser lock knob
2
Inset A
